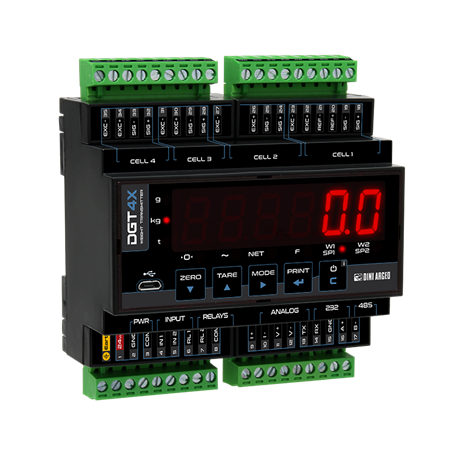

DGT4X - HIGH SPEED WEIGHT TRANSMITTER


  DGT4X - HIGH SPEED WEIGHT TRANSMITTER

TECHNICAL FEATURES
  • Power supply: 12-24Vdc
  • Converter: A/D 24 bit with 4 channel
  • Max scale number: 4
  • Load cells connection: 4 or 6 wires (with sense)
  • Operating modes:
    - Digital junction box
    - Multi-scale transmitter
    - Single-scale transmitter
  • Conversion rate: up to 3200 conv./sec
  • Selectable sampling rate: up to 2600 conv./sec
  • Fieldbus update rate: up to 120 Hz
  • Displaying: up to 1.000.000d
  • Signal sensitivity: 0,03 µV/d (0,3 µV/e)
  • Resolution: 3.000.000 counts
  • Linearization: up to 8 points
  • Connectable load cells: up to 16 350 Ω cells
  • Fieldbus: Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus TCP/IP.
  • Serial ports:
    - 1 Micro-USB port (device) for PC configuration with "Dinitools®" and "XSpeed Tool".
    - 1 RS485 port
    - 1 RS232 port (Mod. DGT4X / DGT4XAN)
  • Analog output: 16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.
  • Digital outputs: n. 2 configurable OUTPUTS
  • Digital inputs: n. 2 configurable INPUTS
  • Certifications:
    - OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
    - UL Listed (upon request)
    - EU Type Examination Certificate (45501:2015)
  • Case: ABS, for Din bar (106 x 56 x 118 mm)
  • Calibration:
    - Theoretical (mV\V)
    - With sample weights
    - Remotely by WEB SERVER
    - From the keyboard
    - From PC with "Dinitools"
  • Keyboard functions:
    Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by
  • Program functions:
    Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion
  • Keyboard: mechanical with 5 digits
  • Display: 14,2mm red LED
UPON REQUEST
  • UL certified version
Weight transmitter for weight transfer to PLC via fieldbus, analog output or RS485.
It allows the reading and diagnostics of each load cell or each connected scale.
Available versions:
PROFINET I/O | ETHERNET/IP | ETHERCAT | MODBUS TCP | CANOPEN | DEVICENET | PROFIBUS | ANALOG OUTPUT | RS485

Integrated WebServer as standard for configuration, diagnostics and data backup.

What's new compared to DGT4

  • New cutting-edge processor, able to process up to 2600 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing times in the order of milliseconds.
  • New cell feed circuit for greater weighing stability.
  • Power supply circuit with protections, specific for industrial environments.
  • Removable terminal blocks to simplify wiring in the electrical panel.
  • Frontal micro-USB communication port for configuration, diagnostics and data backup.
  • XSPEED TOOL: New PC software with oscilloscope function for system diagnostics and weighing filter optimization.
  • 14.2 mm display.
  • New configuration menu to simplify calibration and configuration.
  • RS485 communication port always available on all versions.
  • Up to 120 fieldbus updates per second.

ONBOARD WEB SERVER

  • The integrated WEB SERVER allows complete diagnostics, calibration and remote configuration of the weight transmitter from the Ethernet network.
  • Only for PROFINET, ETHERNET/IP and MODBUS TCP/IP models.

PC XSPEED TOOL SOFTWARE

  • Specific program for PC, designed to improve the performance of any weighing system.
  • Customization of the weighing filter, to maximize the speed and accuracy of the weighs in static and dynamic applications.
  • Graphical weighing analysis for the identification of mechanical disturbances and vibrations.

DOWNLOAD
Available versions
 CodeDescription
DGT4X High speed weight transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display.
DGT4XAN High speed weight transmitter for DIN bar with 4 channels , 2 IN, 2 OUT, analogue output. 5-key keypad, LED display.
DGT4XPRONET High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and PROFINET port. 5-key keypad, LED display.
DGT4XPB High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and Profibus port. 5-key keypad, LED display.
DGT4XETHCAT High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and EtherCAT port. 5-key keypad, LED display.
DGT4XETHIP High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and EthernetIP port. 5-key keypad, LED display.
DGT4XCANOP High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and CANopen port. 5-key keypad, LED display.
DGT4XDEVNET High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and DeviceNet port. 5-key keypad, LED display.
DGT4XMODTCP High speed 4 channel Din rail weight transmitter, with 2 IN, 2 OUT and MODBUS TCP/IP port. 5-key keypad, LED display.
Approval for sale to third parties
 CodeDescription
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.
PC Softwares
 CodeDescription
XSPEED "XSPEED" PC software with oscilloscope function for system diagnostics and weighing filter optimization. Specific for DGT4X.
Printers/Labellers
 CodeDescription
TPRP(S1) Panel thermal printer. Fitted with connection cable, 5Vdc power supply (power adapter not included).
TPRPCAL 5Vdc power supply unit.
Clock Calendar / Alibi Memory for type-approved communication
 CodeDescription
ALMEM-1(S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).
DFCLK(S1) Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).
Power supplier for DIN bar
 CodeDescription
MDR2012 12Vdc power suppliy unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.
DR1512 12Vdc power supplier for DIN bar. 110/240Vac input.
ABS boxes for wall mounting
 CodeDescription
BOX2121S Wall IP65 box with transparent door. Dimensions 210x210x100 mm, equipped with 2 cable fittings. Suitable for DGT1 and DGT4 series instruments.
Options for ATEX version
 CodeDescription
ZBA1S Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE DECLARATIONS OF CONFORMITY (available in EN, DE, FR, ES and IT).
KZBA-1 ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 4 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Manual and ATEX UE declarations of conformity (available in EN and IT).
KMB4 Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +40°C) for dusts. Manual and certificates in English.
DCATEXMB4 ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option).
JB4QA ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with manual and ATEX CE DECLARATION OF CONFORMITY (available in EN, DE, FR and IT).
JB4QAI ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with manual and ATEX CE DECLARATION OF CONFORMITY (available in EN, DE, FR and IT).
EXCB6(S6) Shielded, blue, 6x0,22mm² cable, for EX i (2GD) applications. €/m
Other options
 CodeDescription
UMAN Printed user manual (Free download from the website).
TECMAN Printed technical manual (Free download from the website).
TECSUP Technical assistance by telephone upon request.
ECEMDOC Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.

All the specifications and images can be subject to variations and upgrades without prior notice.
