DGTP: PANEL DIGITAL WEIGHT TRANSMITTER/INDICATOR


  DGTP: PANEL DIGITAL WEIGHT TRANSMITTER/INDICATOR

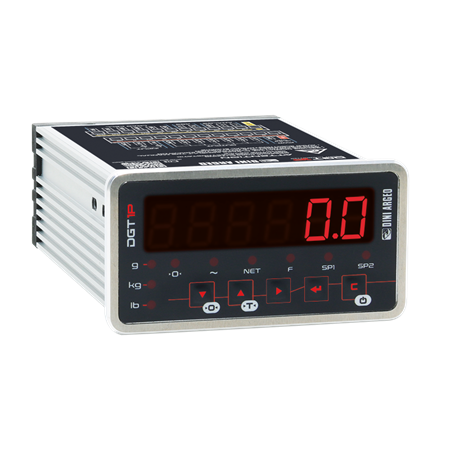

DGTP: panel digital weight transmitter/indicator.

MASTER/REPEATER OPTION (MSTSLV code)
  • Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

    FUNCTIONING MODES:
  • Multi-scale repeater (MASTER)
    function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
  • UNIVERSAL weight repeater
    function which allows to repeat the weight of any scales, through the configuration of the input string.

  • Click to learn more.
Multipurpose weight transmitter for panel mounting. Ideal as a microcontroller in industrial weighing and dosage systems making an easier and safer integration of the weighing to any automation system. Fitted with 4 inputs and 6 outputs, programmable. Wide range of available interfaces.

MAIN FEATURES

  • Easy to use 5-key waterproof keyboard.
  • Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
  • Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Drill template: 136,5 x 67,5 x 120mm (lxhxw).
  • A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
  • Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
  • Connectable with up to 16 analogue load cells with 350 Ohm input resistance.
  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • Fitted real time clock.
  • From 12 Vdc to 24 Vdc power supply.

MAIN CERTIFICATIONS

  • EC Type Approval (EN45501)
  • OIML R76
  • OIML R61 - MID
  • OIML R51

I/O SECTION

  • 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.
  • 1 RS232/C bidirectional port configurable for connection to printer.
  • PROFIBUS serial interface (DGTPPB model).
  • 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 4 optoisolator photocouplers inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
  • 16-bit analogue output (DGTPAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 350Ohm. Minimum load applicable on the output voltage: 10kOhm.
TRANSMITTER / INDICATOR: FUNCTIONS
  • THROUGH KEYBOARD:
    Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.
  • SELECTABLE:
    High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Formulation; Counting; In/Out Truck weighing; Hold e Peak.
  • EXTERNAL INPUT:
    Simulation of key pressure; Keyboard lock.
  • MOSFET OUTPUT:
    Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.
  • SERIAL PORTS:
    On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds.
    DGTP and DGTPAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.
  • THROUGH 16 bit ANALOGUE OUTPUT (DGTPAN):
    Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).
DOWNLOAD
Available versions
 CodeDescription
DGTP Indicator for panel mounting with 4 IN and 6 OUT. 5-key keypad, LED display, and standard weighing program.
DGTPAN Indicator for panel mounting with 4 IN, 6 OUT, analogue output. 5-key keypad, LED display, and standard weighing program.
DGTPPB-1 Indicator for panel mounting with 4 IN, 6 OUT, Profibus. 5-key keypad, LED display, and standard weighing program.
Legal for trade approval
 CodeDescription
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination to a Dini Argeo indicator.
Storing the weighs (only at time of order)
 CodeDescription
SWM WeiMonitor PC program for monitoring and recording weighs in real time, from one or more scales (price of a license for a single scale management).
PC software for managing weighbridges
 CodeDescription
WEITRUCK-1 PC software for vehicle weighing. Combinable with DFW, DGT and 3590 series' weight indicators. Databases for storing the customer, material, and vehicle data, management of the totals and programmable printouts. Requires an Alibi Memory.
Weight repeater software
 CodeDescription
MSTSLV Program for using the indicator as a repeater. It must be combined with the DFW and DGT weight indicators.
Printers/Labellers
 CodeDescription
TPRP(S1) Thermal printer for panel mounting. Fitted with connection cable, 5V power supply (power adapter not included).
TPRPCAL 5V power supplier for TPRP printer.
Communication Interfaces
 CodeDescription
ALMEM(S1) Alibi memory (fiscal memory, max 120.000 weighs) for approved transmission of the weight to PC/PLC or data recording on MMC/USB. Real time clock integrated for print of the date/time. With UL marked PCB, Terminal block, plastic box and labels (if expected).
SETHDIN-1(S1) External RS232 / RS485 to Ethernet converter. Connectable to all Dini Argeo weight indicators via the serial port. ABS case for Omega / DIN bar. With UL marked PCB, Terminal block, plastic box and labels (if expected).
Date&Time option
 CodeDescription
DFCLK(S1) Real time clock for printing/displaying of the date and time. With UL marked PCB, Terminal block, plastic box and labels (if expected).
Power supply
 CodeDescription
MDR2012 12Vdc power supplier for DIN bar. 110/240Vac input. CE and UL certified. Incompatible with BOX2121S.
DR1512 12Vdc power supplier for DIN bar. 110/240Vac input.
Options for ATEX version
 CodeDescription
ZBA1S Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a hazardous-proof case. Marking: ATEX II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC.
KZBA ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in an explosive zone. Dimensions 180x180x150mm.Can connect up to 4 Load Cell of 350 Ohm. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +50°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +50°C) for dust.
DCATEXMB4 ATEX declaration of the whole for systems with zener barriers. Ex II 2GD IIC T6 T125°C X system, with relative label of whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option).
KMB4 Kit of 3 ATEX zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in an hazardous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +40°C) for dusts.
Other options
 CodeDescription
TECSUP Technical assistance by telephone. NET Hourly price.
TECMAN Printed technical manual. (Free, if downloaded from the web). € NET.
UMAN Printed user manual. (Free if downloaded from the web). € NET.

All the specifications and images can be subject to variations and upgrades without prior notice.
