ALPHANUMERIC REPEATER "GLR100"


  ALPHANUMERIC REPEATER "GLR100"


Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages. Depending on the connected indicator, it is possible to display weight with large digits or customisable operational messages. RGB technology allows you to change the colour displayed, with a traffic light function (red, yellow, green).

FEATURES

  • Painted steel container, with protection rating IP54. Suitable for indoor or outdoor use (suitably protected from rain).
  • RGB HIGH LUMINOSITY LED matrix display, 605x150 mm.
  • Numerical mode: up to 6 digits, h= 110mm with metrological icons (stability, zeroing, NET, etc.)
  • Alphanumeric mode: up to 2 lines of 16 characters, h= 42 mm.
  • 240 Vac power supply through 10-metre cable.
  • Rear fixings M6, l= 9 mm, centre-to-centre distance 170x112 mm

AVAILABLE MODES with 3590 TOUCH SCREEN indicators

  • 6-digit 110mm Weight repeater
  • Alphanumeric display with gross and tare weight in the selected language (two 42mm lines)
  • Display colour management (red, yellow or green), synchronised with the connected weight indicator (only in combination with TOUCH SCREEN series indicators)
  • On request:
    - Fully customisable messages, with descriptions, databases, free texts, formulas, targets, etc.
    - Screen saver with date and time, displayed when the scale is not in use
    - Scroll texts

AVAILABLE MODES with DFW, DGT, 3590E and CPW indicators

  • Weight repeater with 6-digit 110mm
COMMUNICATION PORTS
  • RS485 port for long distance transmission (up to 1000 m) or radio (up to 70m indoor, 150m outdoor). To be combined with indicator provided with RS485 or radio communication port. RS485 cable with 10m IP67 cable as standard.
DOWNLOAD
Available versions
 CodeDescription
GLR100 RS485 alphanumeric repeater with 110 mm multicolour LED display
GLR100RF Alphanumeric radio repeater with 110 mm multicolour LED display.
Columns, supports brackets, visors
 CodeDescription
GLR100S Wall support bracket, adjustable and inclinable. Painted steel housing
GLR100P Support bracket for pole, adjustable and inclinable. Painted steel housing.
Main connactable indicators
 CodeDescription
3590EGT8 8-inch Touch Screen indicator with stainless steel IP68 case. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard.

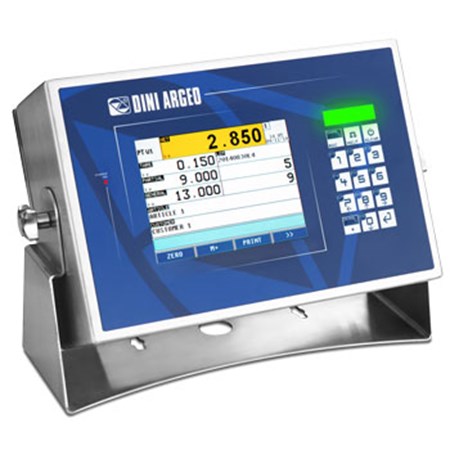

3590EGTT Advanced Touch Screen indicator with 2 IN, 4 OUT, RS485, AF01 software. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard.
3590E Indicator with AF01 software and external power supply. Built-in rechargeable battery, RJ45 connector, glands and cups not included. TAKE NOTE: no option can be installed at the time of order neither any calibration or approval service. Options can be provided separately.
DFWKXP 17-key indicator. IP65 ABS case, backlit LCD display, and standard weighing programme.
DGT20I Indicator for table/panel mounting with 2 IN and 2 OUT. Stainless steel case, 5-key keypad, LED display, and standard weighing programme.
Communication Interfaces
 CodeDescription
RS485C(S1) Built-in RS485 interface (mounting and cable gland excluded).
RS485OPTO(S1) Built-in optoisolated RS485 interface (mounting, cable gland excluded).
DF485(S1) RS485 bidirectional port for DFW series.
OBRF-2(S1) External 868 MHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 70m indoors, 150m outdoors. 50 configurable channels.

All the specifications and images can be subject to variations and upgrades without prior notice.
