"3590EGT8" 8 inches Touch Screen weight indicator


  "3590EGT8" 8 inches Touch Screen weight indicator

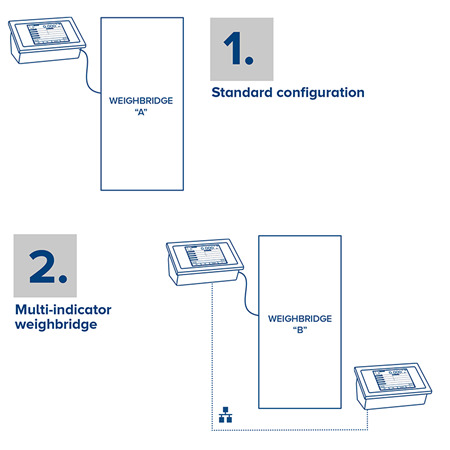

IDEAL FOR DIGITAL APPROVED WEIGHBRIDGES

  • The 3590EGT indicator with AF03GT firmware manages the most common digital load cells for weigh bridges, even for CE-M approved applications:

    Dini Argeo RCPTD
    Dini Argeo RCD
    Rice Lake RL5416D/RL5426D
    Sensocar SP/CS
    Scaime CB50X-DL
    Flintec RC3D
    HBM C16i (requires HBM junction box and RS422\RS485 converter)
    Zemic DM-B4110, DM-B4310, DM-B4311,DM-E5310

    For a complete list of compatible loads cells, please see the AF03GT Technical Manual.

    For efficient handling and optimal protection of digital load cells, we recommend the use of the DIGIKIT option.    .

CUSTOMIZABLE SCREENS
  • Thanks to the customizable touch screen display, it is possible to create suitable interfaces for any application:




  • The PC software “Dini Display Tool” allows the quick customization of the TOUCH display.

I/O SECTION
  • 1 internal Ethernet port as standard, to connect to the company network.
  • 1 RS232 serial port on RJ45 connector (if activated, it deactivates the Ethernet port) for connection to printer, PC, PLC, radio module and optional interfaces.
  • 1 RS232 serial port on screw terminals for connection to printer, PC, radio module and optional interfaces.
  • 1 RS232/RS485 serial port on screw terminals, for connection to weight repeater, remote scale, badge reader or digital load cells.
  • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
  • 4 optoisolated outputs, expandable up to 16 with optional board.
  • 2 optoisolated inputs, expandable up to 8 with optional board.
  • External Profibus or Modbus/TCP,interface (optional), for automation management.
  • External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with standard AF01 weighing program).
  • Modbus RTU Interface.
  • Optional Bluetooth connection, for quick wireless programming of databases, through PC, smartphone or tablet.
  • Analog output DAC16O needs the expansion board IOEXPB.
Weight indicator with 8 inches touch screen display. New IP68 housing with adjustable viewing angle brackets. Integrated LED control light on the front panel and Integrated Ethernet port as standard. The 3590EGT8 indicator, in addition to the standard weighing programs that are available also has a development environment for specific applications with an integrated debugger and programming tools for the PC. Thanks to the completely customizable screen layouts it can display all the weighing data, database records and free texts, this considerably simplifies the user operations. CEM approvable (OIML R76/EN 45501).

TECHNICAL FEATURES

  • 8 inches (160x120mm) resistive backlit color touch screen graphic display. Suitable for use with gloves.
  • Stainless steel case with adjustable inclination and IP68 protection.
  • Multilingual software, available in: Italian, English, German, French and Spanish. It is also possible to enter our own translation, thanks to the new software “CUSTOM LANGUAGE TOOL”, downloadable from the DOWNLOAD section of this page.
  • 3 colour high brightness LED control light.
  • Available touch screen keyboards: QWERTY, AZERTY or QWERTZ.
  • Dimensions (lxwxh): 328x243x129 mm.
  • As standard fitted with an adjustable bracket, for bench or wall mounting.
  • Real time clock and permanent data storage.
  • Supplied with alibi memory, integrated on the motherboard.
  • Slot for internal micro SD (optional) to store logos.
  • Functions available with DINITOOLS Utility Software, even from remote (WEBSERVER mode via internet).
    - Configuration, data entry and print formatting.
    - Transmission and storage of all the information on PC.
    - Complete backup of the configuration.
    - Instrument calibration with numeric values (theoretical calibration).
    - Customization of the layouts.
    - Development environment for custom programs through specific programming language.
  • 24bit A/D converter, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearization points.
  • 4 independent analogue channels (up to 2 in the EAF03 version).
  • Connectable with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (in the EAF03 version).

  • Management of the most common digital load cells for weigh bridges (with DIGIKIT option and AF03GT firmware), also for applications with CE-M approval.

  • Up to 10.000e OIML or 3 x 3000e @ 0,3 μV/e in approved version CEM.
  • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programming of the printout formats.
  • 110-240 Vac power supply or external rechargeable battery pack (optional).
  • Motherboard with removable screw terminals.

MAIN CERTIFICATIONS

  • EU Type Examination Certificate (45501:2015)
  • OIML R76
  • OIML R51 - MID
  • OIML R134 (AF09)
  • Australian legal for trade certificate of approval (NMI S788)

CUSTOMISED APPLICATIONS

  • Thanks to the integrated development area, fully customized applications can be created autonomously:
    - Specific weighing programmes according to customer requirements
    -Customized weighing programmes for terminal replacement in preexisting systems
    - Wizards, operator messages.
    - Serial port management, protocols customization.
    -Digital I/O full management.
    - Sequential or simultaneous automations.
    - Data entry, custom archives.

    Dini Argeo can offer the service of custom development programs. You can ask for a quotation.
APPLICATION SOFTWARE
  • SUPPLIED AS STANDARD:
  • AF01: Totalization and formula weighing

    OPTIONAL:

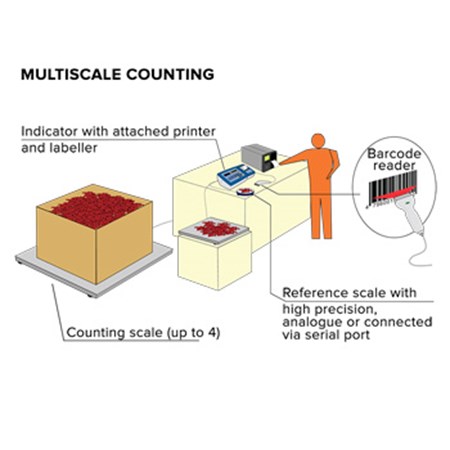

  • AF02: Pieces/quantity counting
  • AF03: Weighbridges - Input/Output vehicle

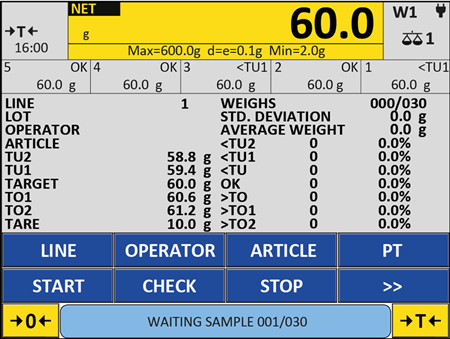

  • AF04: Statistical checking of prepackaged goods

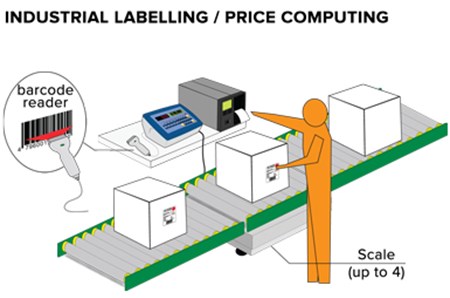

  • AF05: Price computing and industrial labelling
  • AF08: Wheel and axle static weighing with 2 or various platforms

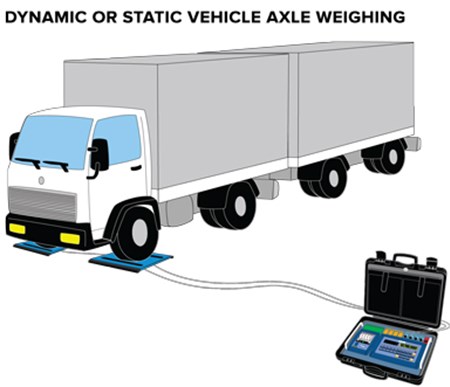

  • AF09: Dynamic and static axle weighing with 2 platforms
  • BATCH1: Single product dosage systems in loading and unloading
  • BATCH: Multicomponent dosage systems in loading and unloading (IOEXPB board must be included)
LANGUAGES AVAILABLE
  • Menu selectable languages:
    IT, EN, FR, DE, ES, PT, PL*

    * Polish available only on EGT-AF01, EGT-AF02, EGT-AF03, EGT-AF04, EGT-AF09, EGT-BATCH1, EGT-BATCH

    Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
  • Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
  • Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
  • Windows 1251: RU, UK, BE, BG, SR, MK, EN
  • Windows 1253: EL, EN
  • Windows 1258: VI, EN, FR
DOWNLOAD
Available versions
 CodeDescription
3590EGT8-1 8-inch Touch Screen indicator with stainless steel IP68 case. Tilting version with stainless steel support for bench/wall installation. Internal Ethernet port as standard. Fitted with AF01 software as standard.
Available versions with UK power cord
 CodeDescription
3590EGT8UK-1 8-inch Touch Screen indicator with stainless steel IP68 case. Tilting version with stainless steel support for bench/wall installation. Fitted with AF01 software as standard. Internal Ethernet port as standard. Power supply cord with BS1363 plug (UK plug).
Kits for connection to digital load cells for truck scales
 CodeDescription
DIGIKIT Power supply and RS485 protection board kit, for digital load cells. RS485 chip is included. TAKE NOTE: price includes the installation of the kit.
RSCBTW 4-core twisted shielded cable (2x2x0.34 mm²), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m
JB10QD-1 RS485 equalisation box for connection with up to 10 digital load cells. Reinforced polyester box, with 10 + 1 cable glands and surge arresters.
Optional power supply cords
 CodeDescription
PWCORDUK Version with BS1363 power cord (UK plug).
PWCORDCH Power supply cord with SEV1011 plug (CH plug).
PWCORDUS Version with US type B power cord (Japan, North and Central America).
PWCORDAUS Version with AU power cord.
Available firmwares
 CodeDescription
AF02 Software for piece/quantity counting.
AF03GT Software for weighbridges, vehicle In/Out. For 3590 "TOUCH SCREEN" weight indicators.
AF04GT Software for statistical checking of prepackaged goods. For 3590 "TOUCH SCREEN" weight indicators.
AF05 Software for price computing and industrial labelling.
AF08 Software for static wheel and axle weighing with 2 or more pads.
AF09 Software for dynamic and static axle weighing with 1 or 2 pads.
BATCH1 Software for single product dosage systems in loading and unloading.
BATCH Software for multicomponent dosage systems in loading and unloading. NOTE: For 3590, IOEXPB expansion board is required.
CHECK Software for packages weighting on a conveyor belt functions.
Software to fill in the databases
 CodeDescription
DBM PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale).
Software for display customisation
 CodeDescription
DDT Software for the quick customisation of the touchscreen display. For 3590ET and 3590EGT series indicators.
Storing the weighs
 CodeDescription
USBEGT8(S6) Built-in USB port kit for data storing on USB key. To be coupled with 3590EGT8 touch screen weight indicators. It does not occupy serial ports. Fitted with USB key for PC.
USBK Set of 5 USB keys for recording the weighs.
SWM "WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
External battery
 CodeDescription
BP6V12A IP67 stainless steel external battery pack, 6V 12Ah. TAKE NOTE: this battery can be directly recharged from the indicator's motherboard, when the indicator is connected to the main line (230Vac). Otherwise, it's possible to recharge the battery by using the BP6CBE recharger.
BTCB6(S1) Cable for BP6V12A battery connection.
BP6CBE Battery charger for BT6V12A battery.
STFA12 Stainless steel bracket for mounting the ATEX battery on column. Compatible with "DFWBP76ATEX..", “IECEXB”, "BP6ESTATEX3GD.." and "BP6V12A".
Junction Box / Boards - Load Cell cables
 CodeDescription
3590E4CH(S1) Built-in board for multiple quick scale connection.
LCCBC(S1) Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.
LCCB5C(S1) LCCBC cable + 5m extension cable.
LCCB10C(S1) LCCBC cable + 10m extension cable.
Approval for sale to third parties
 CodeDescription
KCEM Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.
ECEM-AU Single platform/scale legal-for-trade approval for Australia.
Printers/Labellers
 CodeDescription
OBTPRB(S1) Table thermal printer. For weight indicator, with IP40 ABS case, 1,5 m connection cable and internal power supply. Thermal paper roll included as standard.
CODEPG Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)
PR80-1(S1) Thermal printer with paper cutter. Paper roll not included.
LP542TE(S1) Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll Ø 127 mm and width up to 112 mm. Label roll and ribbon not included.
SMTPLUS-1(S1) Thermal transfer or direct termal labeller. Peel-off kit in option. Maximum print size 25400 x 108 mm. Maximum roll Ø 203 mm and width up to 118 mm. Label roll and ribbon not included.
SMTRPK-1(S1) Label peel-off and rewind kit for SMTPLUS-1 labeller.
TM295(S1) DotMatrix impact printer. Paper / Labels / Tags not included.
LX300PRO(S1) DotMatrix impact printer. Paper not included.
RSCBLX(S1) RS232 cable l=1,5m for LX300, TM295 printers.
RSCBLP(S1) RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.
RSCBLP10M(S1) RS232 cable l=10m for LP542xx, SMTPLUS, PR80 printers.
PRNSERV Custom-made ticket (up to 4 layouts). NET price.
APRNSERV Custom-made label (up to 4 layouts). NET price.
Display customisation
 CodeDescription
GTMEM 10 memories set for display customization with logos and images.
Communication Interfaces
 CodeDescription
RSCBUSBPG(S1) USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ11 connector. For the connection to weight indicators with IP65, IP68 and IP69K protection system.
OBRF2G4(S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.
OBRF2G4-USB External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.
RF2G4(S1) Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).
WIFITPWLK-2(S1) Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.
PROFI232-1 External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable).
PROFIBUS1S RS485-Profibus interface for DIN bar. With UL marked PCB, Terminal block, plastic box and labels (if expected).
BLTH-3(S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners.
Attention: this interface is not suitable for Master-Slave systems.
RS485OPTO(S1) Built-in optoisolated RS485 interface (mounting and cable gland excluded).
Fieldbus interfaces
 CodeDescription
PROFINET1S RS485 to ProfiNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).
ETHERNETIP1S RS485 to Ethernet IP interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).
ETHERCAT1S RS485 to EtherCAT interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).
DEVICENET1S RS485 to DeviceNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).
CANOPEN1S RS485 to CANOPEN interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).
FB1SINST Installation, configuration and testing of Fieldbus Module 1S. NET PRICE.
NOTE: not compatible with IOEXPB / DIGIKIT and the AF04 and BATCH weighing programmes.
Connection cables
 CodeDescription
RSCBRJ(S1) RS232/C serial cable - DB9/RJ11 - l=1,5m.
RSCBRJ10M(S1) RS232/C serial cable - DB9/RJ11 - l=10m.
RSCBUSB485 USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output.
ETHCBRJ(S1) Ethernet cable, l=1,5m. Fitted with fairlead, for connection between indicator and PC network.
191750 RS485 connection cable for Fieldbus versions to CPU series. Length 20cm.
Weight repeaters
 CodeDescription
GLR100 RS485 alphanumeric repeater with 110 mm multicolour LED display. Complete with 10m RS485 cable with IP67 connector.
DGT100R-1 Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.
Columns, supports brackets, visors
 CodeDescription
KWR10 Kit of 4 rubber wheels and galvanized steel frame for CSP column. A pair of idler wheels and a pair with brakes.
CSP38I-1 AISI 304 stainless steel column 450x450mm, h=917mm, Ø 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.
CSP38 Stainless steel column 450x450mm, h=917, Ø 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.
CSP38D Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.
Options for ATEX version
 CodeDescription
ZBA1S Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
KZBA-1 ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
KMB4-1 Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +40°C) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
DCATEXMB4 ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).
JB4QA ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
JB4QAI ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
EXCB6(S6) Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m
Protection against electric discharges
 CodeDescription
3590EEP(S1) Built-in protection card against electric discharges according to IEC 1000-4-5/D (IEC 801-5/D).
Digital Input / Output
 CodeDescription
IOEXPBE(S1) Built-in board with 12 OUT and 6 IN (mounting and cable gland excluded). It includes expansion circuit of the power supply range of the indicator (8-40Vdc). NOT COMPATIBLE WITH 3590E4CH AND TPRXT. With UL marked PCB, Terminal block, plastic box and labels (if expected). Note: Accessory that can only be ordered in combination with a suitable weight indicator.
Analog Ouput
 CodeDescription
DAC16OSER(S1) Built-in RS232 / RS485 optoisolated analog output, 0-4/20 mA, 0-10VDC . For DFW, 3590 Touch Screen.
DAC16O-2(S1) Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order. NOTE: For 3590, IOEXPB option board is required, available depending on the model.
PC keyboard / Scanner / Connection cable
 CodeDescription
KBCBCE(S1) PC keyboard cable with mini DIN connector.
PCKBRD QWERTY PC keyboard (it needs a mini DIN cable).
SCBTH(S2) Bluetooth scanner for 1D / 2D barcodes. Includes recharge base. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.
SCBTHP(S2) Pocket Bluetooth scanner for 1D / 2D barcodes. Equipped with USB cable for recharge. To be combined with 3590 TOUCH SCREEN weight indicator and Bluetooth BLTHxx module.
SCCDR2-1(S1) 1D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included.
Remote control
 CodeDescription
TLRP(S1) Radio frequency remote control and receiver with extension, for installations where other option boards with connection to AMP are required.
Other options
 CodeDescription
TECSUP Technical assistance by telephone upon request.
UMAN Printed user manual (Free download from the website).
TECMAN Printed technical manual (Free download from the website).
ECEMDOC Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
ASSISTANCE
DOCUMENTS
SALES NETWORK
CATALOGS
Dini Argeo is a company of
Rice Lake Weighing Systems		 Copyright - All Rights Reserved - 19/04/2024
Dini Argeo S.r.l. - P.IVA/VAT IT00767800360 Privacy Policy
