CPWE "ENTERPRISE": MICROCONTROLLER / WEIGHT INDICATOR FOR INDUSTRIAL AUTOMATION
|
CPWE "ENTERPRISE": MICROCONTROLLER / WEIGHT INDICATOR FOR INDUSTRIAL AUTOMATION
|
|
|
|
CPWE: microcontroller for the industrial automation.
|
| | | I/O SECTION |
| | - 2 RS232 serial ports configurable for connection to PC, printers, labellers, ethernet model (optional), remote scale, repeater, serial bar code reader or other external units.
- RS232/RS485 port configurable for PC, PLC, or other external units.
- Keyboard emulation input for connection to PC keyboard or bar code reader, through cable with mini DIN connector (optional).
- 16 optoisolated electronic outputs 0.15A 48Vac / 0.15A 60Vdc configurable as weight thresholds or for automation management (depending on the software program).
- 8 optoisolated inputs, configurable as remote function keys or for automation management (depending on the software program).
- External Profibus interface (optional), for automation management (depending on the software program).
- Optional Bluetooth connection, for quick wireless programming of the activities and the formulas, through PC, tablet or smartphone.
|
|
|
Multifunctional microcontroller/ weight indicator for use in industrial systems. 16 outputs and 8 digital inputs, 3 RS232/RS485 serial outputs, 16 bit analogue output, Sysway transmission protocols and RTU Modbus are some of the features of this indicator, which, added to the range of available application software programs, allow the use in dosage and weight verification applications, with direct management of the automation. CE-M approvable (OIML R-76 / EN 45501, OIML-R51/OIML-R61). | | | MAIN FEATURES |
| | - Waterproof 25-key numerical functional keyboard, which allows to easily enter the target, alphanumeric texts, codes, etc.;
- Programmable function keys, for customising the keyboard functions according to the needs.
- Easy to consult backlit graphic LCD display, with a clear visualisation of the weight and of the automation status; selection of the language from the menu.
- Anodised aluminium case according to DIN norms, with dimensions of 202x105x147.7mm; 187x90mm template for panel board mounting.
- IP65 front panel protection, against dust and water sprays.
- Real time clock and permanent data memory.
- Integrated alibi memory for CE-M communication with PC and printer.
- Calibration and Set-Up parameters, configurable from PC with Dinitools or with the keyboard; theoretical calibration with the entry of the characteristics of the load cells.
- Up to 1.000.000d displayable for internal factory use.
- Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in approved version for CE-M legal for trade use.
- Up to 8 signal linearisation points with DINITOOLS.
- Internal resolution of up to 3.000.000 points.
- A/D 24 bit sigma-delta 4-channel conversion, up to 3200 conv./sec. with automatic selection.
- Connectable with up to 16 analogue load cells with 350 Ohm input resistance (45 1000 Ohm cells) and to the main digital load cells available on the market. Filtering system through programmable software, adjustable according to the system.
- Management of a weighing system with digital equalisation of the 4 cells or management of up to 4 independent weighing systems (depending on the application software).
- Power supply: from 8Vdc to 40Vdc and, upon request, 100-240Vac (with the ALSW optional external power supplier).
- Operating temperature: from -10 to +40°C.
- Connectable to printers and labellers through the available command drivers.
|
|
|
Available versions
| Code | Description |
| CPWE | Microcontroller for panel mounting with BATCH1 software. Aluminium case with IP65 front panel protection, 25-key keypad, backlit graphic LCD display, 16 outputs and 8 inputs. |
Available firmwares
| Code | Description |

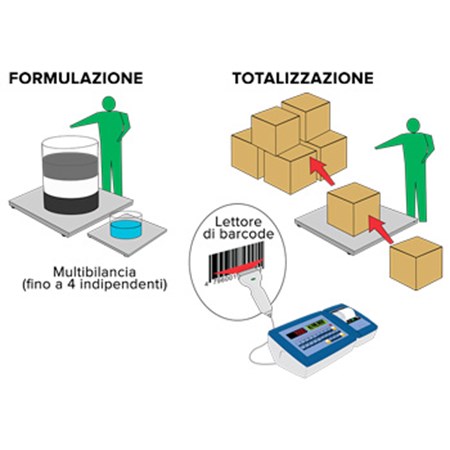

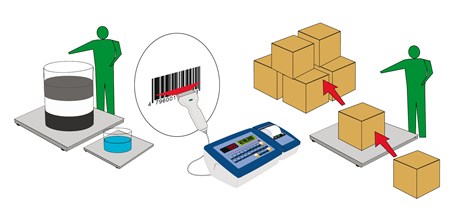

| AF01 a> | Software for totalization and formula weighing. |
| AF02 a> | Software for piece/quantity counting. |
| AF03 a> | Software for weighbridges, input/output vehicle. For 3590 and CPW weight indicators. |

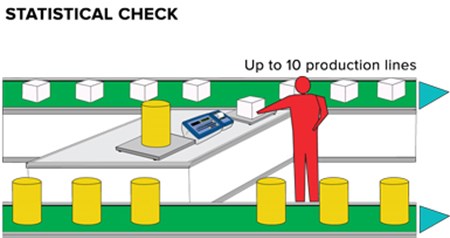

| AF04 | Software for statistical checking of prepackaged goods. |
| AF05 a> | Software for price computing and industrial labelling. |
| AF09 a> | Software for dynamic and static axle weighing with 1 or 2 pads. |
| BATCH a> | Software for multicomponent dosage systems in loading and unloading. NOTE: For 3590, IOEXPB expansion board is required. |
| BATCH1-R61 | Software for single product dosage systems in loading and unloading. OIML R61 approved. |
| CHECK a> | Software for packages weighting on a conveyor belt functions. R61 approvable. |
| BELT a> | Software for reading/regulation of the flow on the weighing belt. |
| LW a> | Software for continuous dosage exiting from silos, tanks, hoppers. |
Software to fill in the databases
| Code | Description |
| DBM a> | PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale). |
Junction Box / Boards - Load Cell cables
| Code | Description |
| LCCBC | (S1) Cable for connection between platform and indicator, l=50cm. Female connector to be soldered. |
| LCCB5C | (S1) LCCBC cable + 5m extension cable. |
| LCCB10C | (S1) LCCBC cable + 10m extension cable. |
Approval for sale to third parties
| Code | Description |
| KCEM a> | Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator. |
Power supplier for DIN bar
| Code | Description |
| MDR2012 | 12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S. |
| DR1512 | 12Vdc power unit for DIN bar. 110/240Vac input. |
Storing the weighs
| Code | Description |
| USBC-1 a> | (S1) Built-in USB port kit for data storing on USB key. Fitted with USB key for PC. |
| USBK | Set of 5 USB keys for recording the weighs. |
| SWM a> | "WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale). |
Printers/Labellers
| Code | Description |
| TPRP-1 | (S1) Panel thermal printer. 5Vdc power supply (power adapter not included). Attention: connection cable kit not included, to be ordered separately. |
| 14TPRC | Connection cable kit for TPRP-1. |
| TPRPCAL | 5Vdc power supply unit. |
| PR80-2 | (S1) Thermal printer with paper cutter. Paper roll not included. |
| LP542TE a> | (S1) Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll Ø 127 mm and width up to 112 mm.
Label roll and ribbon not included. |
| SMTPLUS-1 a> | (S1) Thermal transfer or direct termal labeller. Peel-off kit in option. Maximum print size 25400 x 108 mm. Maximum roll Ø 203 mm and width up to 118 mm.
Label roll and ribbon not included. |
| SMTRPK-1 | (S1) Label peel-off and rewind kit for SMTPLUS-1 labeller. |
| LX300PRO a> | (S1) DotMatrix impact printer. Paper not included. |
| TM295 a> | (S1) DotMatrix impact printer. Paper / Labels / Tags not included. |
| RSCBLX | (S1) RS232 cable l=1,5m for LX300, TM295 printers. |
| RSCBLP | (S1) RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers. |
| RSCBLP10M | (S1) RS232 cable l=10m for LP542xx, SMTPLUS, PR80 printers. |
| PRNSERV | Custom-made ticket (up to 4 layouts). NET price. |
| APRNSERV | Custom-made label (up to 4 layouts). NET price. |
Communication Interfaces
| Code | Description |
| OBRF2G4 a> | (S1) External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels. |
| PROFI232-1 a> | External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable). |
| SETHDIN-1 | RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable). |
| BLTH-3 a> | (S1) Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems. |
| DAC16O-2 a> | (S1) Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order.
NOTE: For 3590, IOEXPB option board is required, available depending on the model. |
| ADC16I a> | (S1) Built-in analogue input, 0-4/20 mA, 0-10VdC (cable land excluded). A/D 16 bit converter, maximum applicable resistance on the input in current is equal to 250 Ohm, minimum applicable resistance on the input in voltage equal to 15KOhm. Compatible with DAC16O-2. |
| RS485OPTO | (S1) Built-in optoisolated RS485 interface (mounting and cable gland excluded). |
Weight repeaters
| Code | Description |
| DGT100R-1 a> | Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure. |
| GLR100 a> | RS485 alphanumeric repeater with 110 mm multicolour LED display. Complete with 10m RS485 cable with IP67 connector. |
Options for ATEX version
| Code | Description |
| ZBA1S a> | Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
| KZBA-1 a> | ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT). |
| KMB4-1 a> | Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C ≤ Ta ≤ +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C ≤ Ta ≤ +40°C) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT). |
| DCATEXMB4 | ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT). |
| JB4QA a> | ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
| JB4QAI a> | ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
| EXCB6 | (S6) Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request). |
PC keyboard / Scanner / Connection cable
| Code | Description |
| KBCBCE | (S1) PC keyboard cable with mini DIN connector. |
| SCCDR2-1 | (S1) 1D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included. |
| SC2D | (S1) 1D/2D optical barcode reader with stand. Power cable and RS232 communication cable with weight indicator and stainless steel cable gland included. |
Remote control
| Code | Description |
| TLRP | (S1) Radio frequency remote control and receiver with extension, for installations where other option boards with connection to AMP are required. |
Accessories
| Code | Description |
| TECSUP | Technical assistance by telephone upon request. |
| UMAN | Printed user manual (Free download from the website). |
| DACM-NAWI-FR | Metrological carnet filled with scale identification (NAWI). The carnet can alternatively be downloaded online (free) from the Dini Argeo website, document section, via the instrument SN. NET PRICE. |
| TECMAN | Printed technical manual (Free download from the website). |
| ECEMDOC | Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €. |
