"JBQ": EQUALISED JUNCTION BOX, WITH UP TO 4 LOAD CELLS
|
|
| |
|
|
JB4Q: Junction and equalisation box
|
|
|
|
|
IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
|
|
Available versions
| | Code | Description |
 | JB4Q | Equalisation box for connection with up to 4 load cells. ABS box, IP67 protection rating, with 4 + 1 fairleads. |
Similar solutions for ATEX environments
| | Code | Description |
 | JB4QA | ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
 | EXCB6 | (S6) Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request). |
 | JB4A | Junction box for up to 4 cells for hazardous areas ATEX, in ABS IP67, with 4 + 1 fairleads for connection with up to 4 load cells. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Protection for junction box/electronic circuits
| | Code | Description |
 | GELBOX | (S1) Anti condensation, insulating, and sealing gel. Useful to protect the electronic circuits of the weighing system, even under prolonged immersions conditions. Pack of 300ml. |
WARNING:
For JB4Q, JB4QA, JBxQI and JBxQAI: 300ml of gel required
Connection cables
| | Code | Description |
 | LCCB | Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request). |
 | LCCBA | Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request). |
 | LCCBM | Shielded 4x0,34 mm² cable for moving applications. €/m. Maximum orderable length: 100 m (longer lengths available only upon request). |
Similar solutions
| | Code | Description |
 | JC4Q | Equalisation board for up to 4 cells. With UL marked PCB, Terminal block, plastic box and labels (if expected). |
 | JC10Q | Equalisation board for up to 10 cells, fitted with surge arresters. |

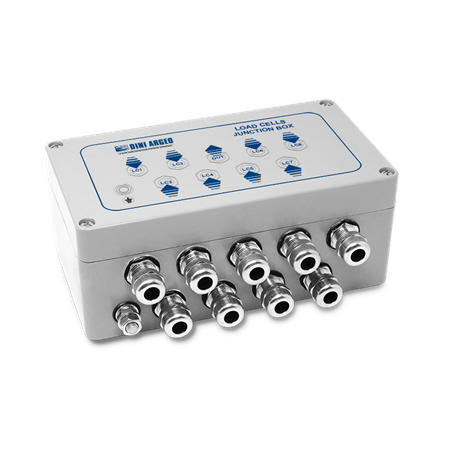

 | JB8Q-1 | Equalisation box for connection with up to 8 analogue load cells. Reinforced polyester box, with 8 + 1 PG11 cable glands. With surge arresters, PCB, Terminal block, plastic box and UL marked labels (if applicable). |
 | JB10Q | Equalisation box for connection with up to 10 analogue load cells. Reinforced polyester box, with 10 + 1 cable glands. With surge arresters, PCB, Terminal block, plastic box and UL marked labels (if applicable). |
 | DGT4 | Transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program. |
