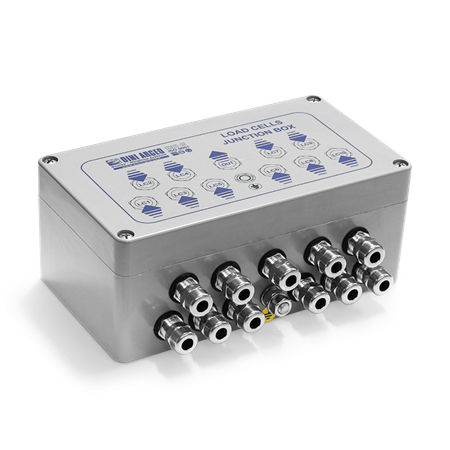

"JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS


  "JB10Q": EQUALISED JUNCTION BOX, WITH UP TO 10 LOAD CELLS

Junction box fitted with electronic board for junction and equalisation of up to 10 load cells. Particularly suitable for weight bridges, thanks to the Surger Arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic cable glands and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.

ANALOGIC "JB10Q" TECHNICAL FEATURES

  • Reinforced polyester case in fiberglass, ideal for harsh environments.
  • 10 + 1 waterproof metallic cable glands.
  • Surge Arresters against electric discharges and disturbances.
  • IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
  • Maximum input voltage: 24Vdc.
  • Maximum input current: 700mA.
  • Maximum input load cell signal: 1000mV.
  • Temperature effect: 50ppm/°C.
  • Compact dimensions (lxwxh): 220x120x90mm.
  • Removable terminals.

DIGITAL "JB10QD" TECHNICAL FEATURES

  • Designed for the connection to digital load cells, in RS485.
  • 24Vdc input for the power supply of the load cells.
  • Reinforced polyester case in fiberglass, ideal for harsh environments.
  • 10 + 1 waterproof metallic cable glands.
  • Surge Arresters against electric discharges and disturbances.
  • IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
  • Compact dimensions (lxwxh): 220x120x90mm.
  • Removable terminals.
DOWNLOAD
Available versions
 CodeDescription
JB10Q Equalisation box for connection with up to 10 analogue load cells. Reinforced polyester box, with 10 + 1 cable glands. With surge arresters, PCB, Terminal block, plastic box and UL marked labels (if applicable).
JB10QD-1 RS485 equalisation box for connection with up to 10 digital load cells. Reinforced polyester box, with 10 + 1 cable glands and surge arresters.
Protection for junction box/electronic circuits
 CodeDescription
GELBOX(S1) Anti condensation, insulating, and sealing gel. Useful to protect the electronic circuits of the weighing system, even under prolonged immersions conditions. Pack of 300ml.
WARNING:
For JB10Q/JB10QD: 1200ml of gel required
Connection cables
 CodeDescription
LCCB Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m
LCCBA Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m
LCCBM Shielded 4x0,34 mm² cable for moving applications. €/m
Weighbridge indicators
 CodeDescription

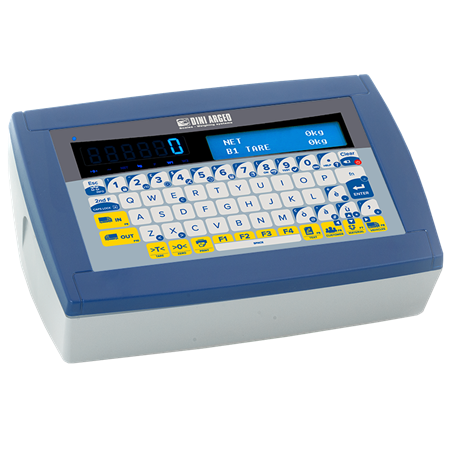

3590EQ Indicator with QWERTY keyboard and AF03 software. ABS IP65 case , 59-key keyboard, LED display and graphic LCD display.

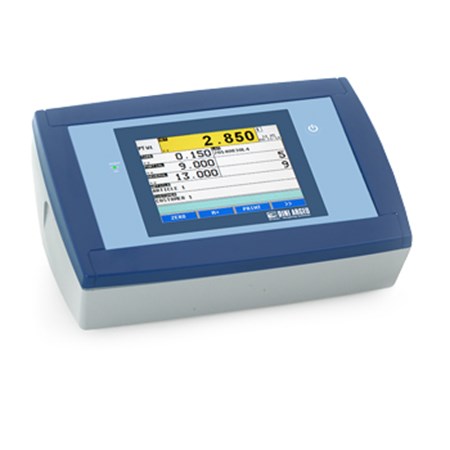

3590ET Touch screen indicator with AF01 software. ABS enclosure. Colour Display.
3590EGTCXT01BC Colour Touch Screen indicator with 2 IN, 4 OUT, RS485 and AF01 software. Stainless steel waterproof IP68 case.
AF03 Software for weighbridges, input/output vehicle. For 3590 and CPW weight indicators.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
