WKPTA - C3: Analogue Kit for Weighbridges with Touch-Screen Indicator
- Touchscreen indicator, specific for weighbridges
- Equalization box with removable terminals and integrated surge arresters
- Analogue load cells in stainless/nickel-plated steel
- Total capacity: 240t (8 x 30t cells)
- OIML R60. C3 precision class
- Load cell height 200mm (including cups height)
- Load cells connection cable length: 20m

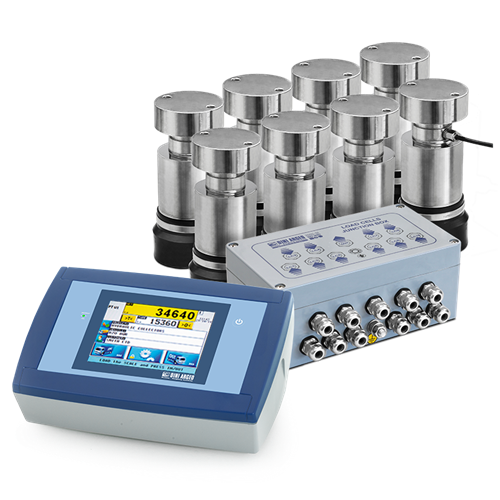

Analogue weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 "RCPT" analogue load cells, complete with galvanized steel oscillating resting joints and equalization box with surge arresters.

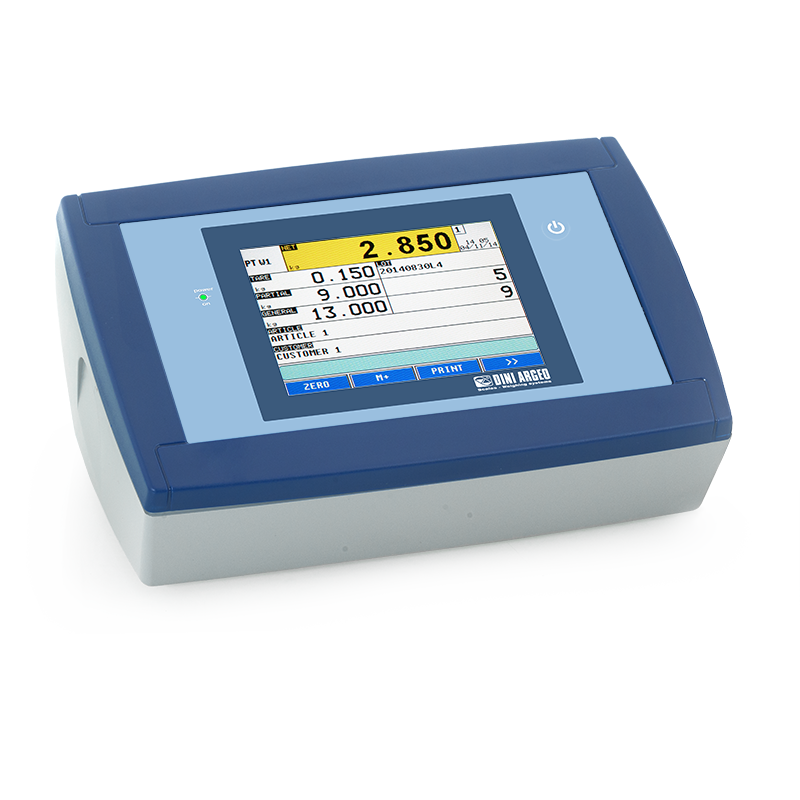

3590ET Indicator
- Touch screen, graphic, color display
- ABS waterproof IP65 case
- Integrated alibi memory for CE-M approved communication with printer and PC
- 3 serial ports, 2 RS232 and 1 RS485 for connection to printer, repeater and PC
- 2 inputs and 4 outputs
- AF03 application software suitable for vehicles weighing and weighbridge management, with input/output products check
- AF03GT application software for vehicles weighing and weighbridge management, with input/output products check

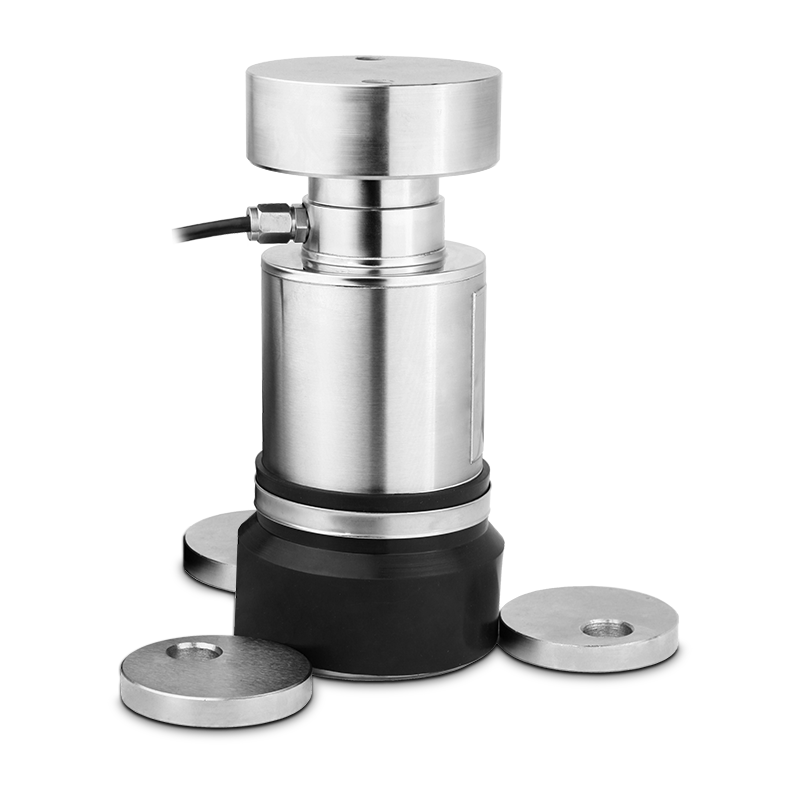

RCPT Analogue Load Cells
|
C3 precision class Stainless steel interior with nickel-plated steel body; laser soldering Optimized for parallel connection IP68 protection rating Capacity 30000kg 18 m shielded connection cable Fitted with self-aligned articulated joints, self-centering plates and protection washer Minimum load cell verification interval: Vmin = EMax / 10.000 |
Maximum number of load cell divisions: nLC = 3000 (C3) Sensitivity: 2mV/V +/- 0,1% Temperature effect on full scale: 0,002% /°C Temperature effect on zero: 0,002% /°C Compensated Temperature Range: -10°C/+40°C Operating Temperature Range: -30°C/+70°C Creep error after 30 minutes: 0,02% F.S. |
Excitation voltage from 5 to 15 VDC Input Resistance: 700 ± 20 Ohm Output Resistance: 703 ± 7 Ohm Zero Balance: +/-1% F.S. Insulation Resistance > 5000 MOhm Safe Overload > 150% F.S. Ultimate Overload: 250% F.S. 4-wire shielded cable, 18m long, 5mm diameter |

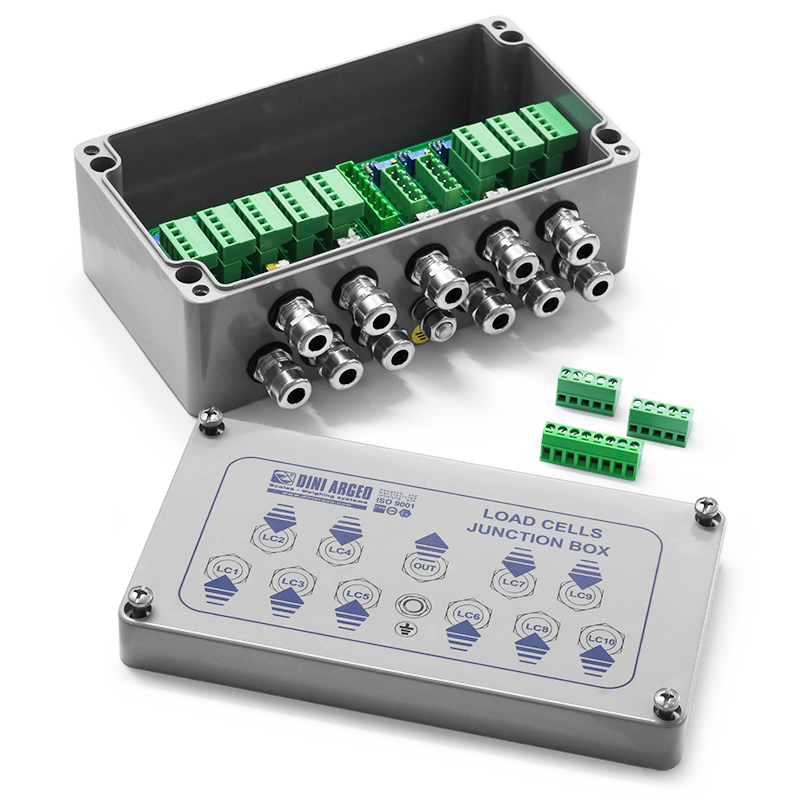

JB10Q Junction Box
- Junction box with polyester case.
- Removable terminal blocks.
- IP66 protection rating or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel).
- Surge Arresters against electric discharges and disturbances.
Parts
Available Versions
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
WKPT830A-1 | Kit for ANALOGUE weighbridges with 8 load cells. Composed of 3590ET indicator fitted with AF03 software, 2 inputs, 4 outputs and RS485 port, 8 RCPT30C3-1 analogue load cells with mounting kit, and JB10Q equalisation box with 10 inputs. |
Consult |
Options
Legal for Trade Approval (only at time of order)
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
KCEM | Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator. |
Consult |
|
|
|
ECEMDOC | Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €. |
Consult |
Protection for Junction Box / Electronic Circuits
Connection Cables
Communication Interfaces
Weight Repeaters
Printers / Labelers
Related Products
WKA - C4: Analogue Kit for Weighbridges with Touch-Screen Indicator
Weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 6 or 8 stainless steel IP68 "RCA" analogue load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.
WBKPTA - C3: Analogue Kit for Weighbridges
Kit for weighbridges made up of 8 RCPT series analogue load cells, complete with oscillating resting joints and 10 input junction box.
