Product PDF

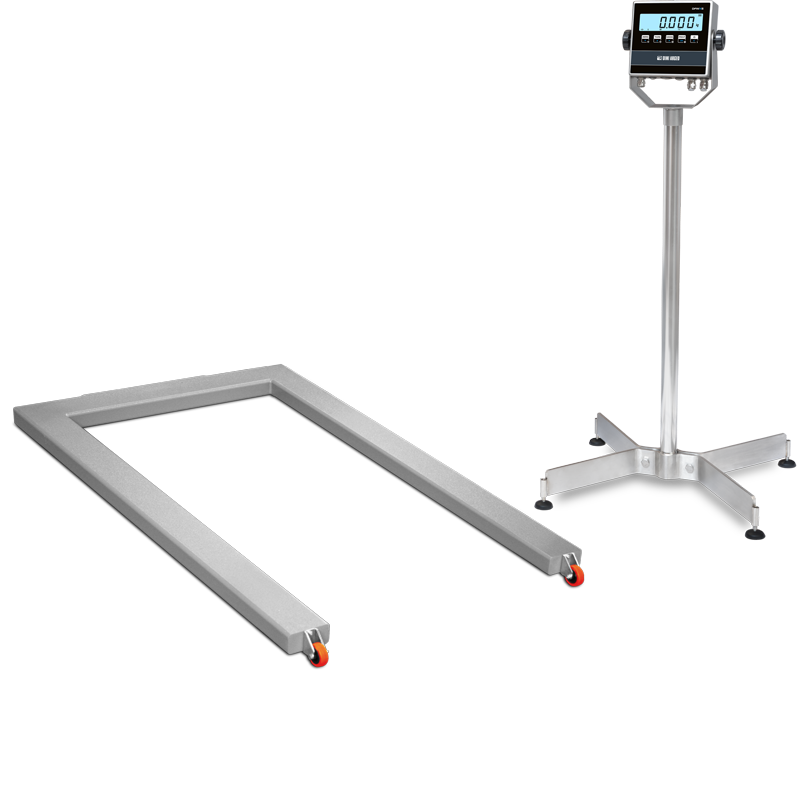

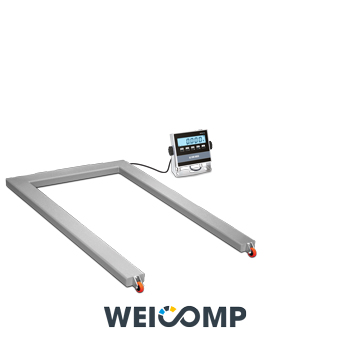

WEICOMP Pro Stainless Steel Pallet-Weighing Scale

Pallet Weigher - Technical Features

  • Stainless steel tubular frame, complete with adjustable feet.
  • Level bubble, wheels and transport handle.
  • Connection cable to the indicator, 3 meters long.
  • Operating temperature: -10° / +40° C.
  • Digital calibration and set-up from keyboard or from PC with DINITOOLS.



Weight Indicator - Technical Features

  • Multifunction weight indicator in AISI 304 stainless steel.
  • 25mm 6-digit LCD display with interactive RGB color backlighting.
  • 5-key numeric function keypad.
  • Support bracket with adjustable angle, with fixing holes.

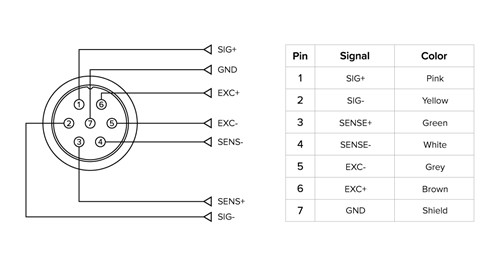

  • Load cell connection to the weight indicator via IP67 connector.
  • Internal power supply 230 VAC / 12 VDC, with 1,5m cable and EU or UK plug.
  • Internal rechargeable NiMH battery, with approx. 80h autonomy; charging time approximately 6 hours.
  • Configurable energy saving functions to minimize energy consumption.



Request More Information

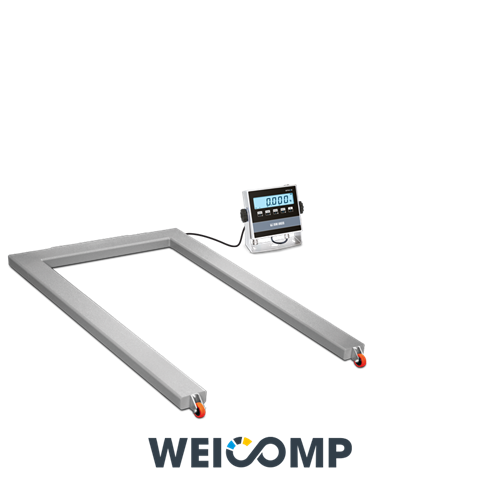

WEPWLI PRO U

Fast, accurate, easy to use, transport and position stainless steel pallet scale, according to one's weighing needs. Ideal for use in harsh environments or with high hygiene requirements. Available in approved version for legal-for-trade use.

Solution for weighing pallets wherever they are needed. Easy to use with hand pallet trucks.
Available in approved version for legal-for-trade use. Built with 4 Dini Argeo load cells, in stainless steel, approved, with IP68 protection rating.

The stainless steel multifunction indicator, with interactive RGB color display and integrated NiMh rechargeable battery, offers an intuitive interface and high performance. C3 and C3MR certified, it ensures unprecedented weighing speed and stability.
A professional solution designed and manufactured entirely in Italy, for those seeking the utmost in quality and reliability.



MAIN FUNCTIONS

  • Net or gross weight control, according to sample.
  • Take away weight control.
  • Piece counting and control.
  • Weighing in percentages.
  • Weight conversion to lb, or with a freely programmable conversion factor.
  • Totalization.
  • Formulation.
  • Automatic tare.
  • Manual dosing.

INPUT/OUTPUT COMMUNICATION PORTS

  • RS232 on screw terminals for connection to Dini Argeo PCs/printers.
  • RS232 on AMP connector, with CTS, for connection to
    Dini Argeo printers.
  • RS485 on screw terminals for connection to PCs/PLCs,
    with Modbus RTU or ASCII protocol.
  • USB-C for connection to PCs.
  • Customizable weight communication string.

Optional:

  • WiFi port.
  • Ethernet TCP/IP port (includes Modbus-TCP protocol).


Code l x w x h
(mm)		 Max (kg) d (kg) M (kg) M 2R (kg)
WEPWLI 1260 x 800 x 75 600/ 1500 / 2000 0,2 / 0,5 / 1 -- --
WEPWLIM 1260 x 800 x 75 600/ 1500 / 2000 -- 0,2 / 0,5 / 1 0,2 / 0,5 / 1

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Compact Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|ATEX Load Cells|Hygienic Load Cells Articles
Increase Efficiency and Productivity with Dini Argeo Weighing Solutions Email Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|Pallet Truck Scales Articles

Title Collateral Wizard Request Download Email Category
Weicomp Series Industrial Scales Request Download Email WEICOMP® Scales

Parts

Available Versions

Part # Description List Price Cart/Quote
WEPWLI Pallet-weighing scale with 600/1500/2000 kg triple range capacity, 0,2/0,5/1 kg division, dimensions 1260x800x75 mm, stainless steel structure. ABS weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.

Consult
WEPWLIM WEPWL

Consult

Options

International Power Cables

Part # Description List Price Cart/Quote
PWCORDUK Version with BS1363 power cord (UK plug).

Consult
PWCORDAUS Version with AU power cord.

Consult
PWCORDUS Version with US type B power cord (Japan, North and Central America).

Consult
PWCORDCH Power supply cord with SEV1011 plug (CH plug).

Consult

Calibration Service (ACCREDIA/DAKKS) Only at Time of Order

Columns, Supports Brackets, Visors

Communication interfaces for DFWX (only at time of order)

Alibi Memory for approved communication (only at time of order)

Connection Cables

Legal for Trade Approval (only at time of order)
