Product PDF

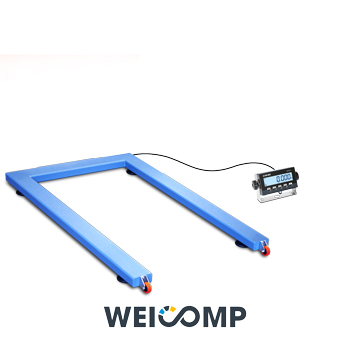

WEICOMP Lite Pallet-Weighing Scale

 Pallet Weigher - Technical Features

  • Tubular structure of pallet-weighing scales oven-fire painted, complete with adjustable feet.
  • Level bubble, wheels, and transport handle.
  • Connection cable to the indicator, 3 meters long.
  • Operating temperature: -10° / +40° C.
  • Digital calibration and set-up from keyboard or from PC with DINITOOLS.

Weight Indicator - Technical Features

  • ABS casing, easy to clean and resistant.
  • Backlit 25mm LCD display with 6 digits, high contrast and icons for active function indication.
  • Functional waterproof 5-key keyboard.
    Adjustable tilt support bracket for bench and wall mounting.
  • Suitable for use on a bench, column, or wall.
  • 24-bit A/D converter, 4 channels, max. 200 conv./sec. and up to 8 signal linearization points.
  • RS232 (RJ11 port) for thermal printer, repeater, or PC communication.

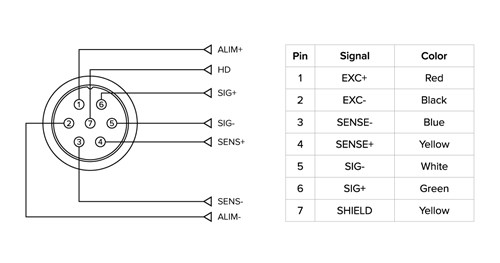

  • Load cell connection to the weight indicator via connector.
  • Internal power supply 110 / 240 VAC, with EU or UK plugs.
  • Integrated rechargeable NiMH battery, with approx. 40 hours of autonomy.



Request More Information

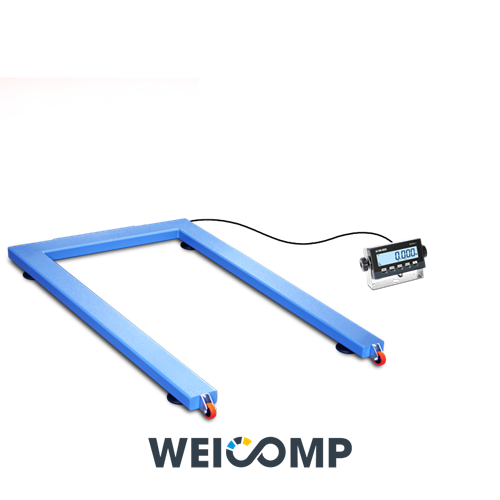

WEPWL LITE U

Fast, accurate, easy to use, transport and position pallet scale, according to one's weighing needs.

Solution for weighing pallets wherever needed. Easy to use with manual pallet jacks. Available also in approved version for legal-for-trade use. Built with 4 Dini Argeo load cells, in nickel-plated steel, approved, with IP67 protection rating.

Equipped with a 5-button multifunction weight indicator in ABS, IP65, with 230VAC power supply and integrated rechargeable NiMH battery, it offers maximum flexibility of use. Belonging to accuracy class C3, this scale is recommended for industrial and commercial applications that require reliability and precision in every weighing.

Main Functions

  • Conversion of weight into lb, or with freely programmable conversion factor.
  • Totalization.
  • Formulation.
  • Automatic tare.































Code l x w x h
(mm)		 Max (kg) d (kg) M 2R (kg)
WEPWL 1260 x 800 x 85 600/ 1500 / 2000 0,2 / 0,5 / 1 --
WEPWLM 1260 x 800 x 85 1000 / 2000 -- 0,5 / 1





Parts

Available Versions

Part # Description List Price Cart/Quote
WEPWL Pallet-weighing scale with 600/1500/2000 kg triple range capacity, 0,2/0,5/1 kg division, dimensions 1260x800x85 mm, painted steel structure. ABS weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.

Consult
WEPWLM WEPWL

Consult

Options

Calibration Service (ACCREDIA/DAKKS) Only at Time of Order

Part # Description List Price Cart/Quote
CT7 ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.

Consult

Floor Columns

Alibi Memory for approved communication (only at time of order)

Connection Cables

Legal for Trade Approval (only at time of order)
