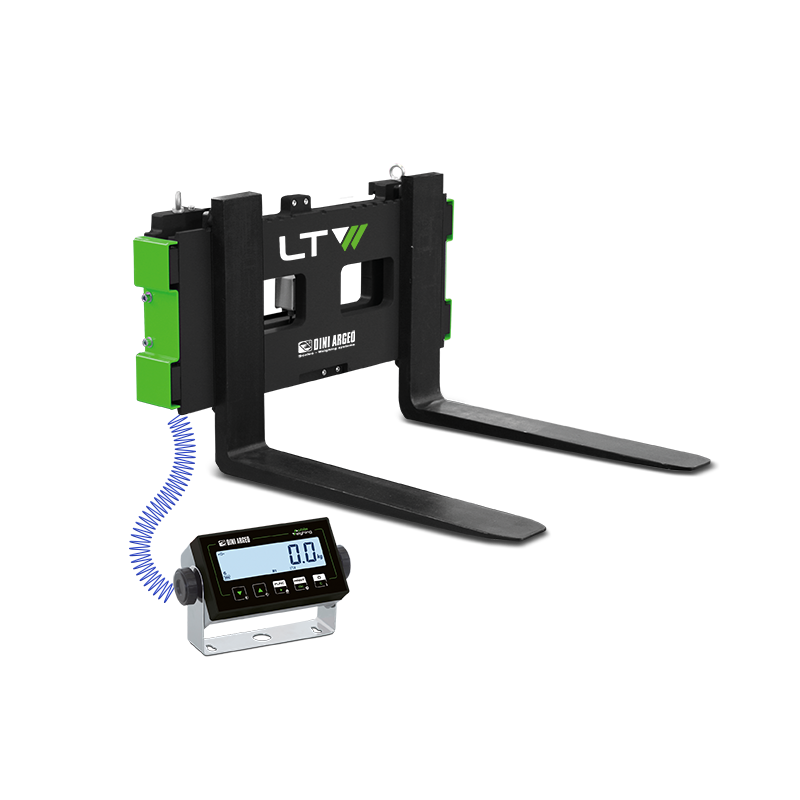

LTW Compact Fork Holder Plate with Integrated Weighing System

Weighing plate for forklift, with fixing rail DIN15173 - FEM class II, to transform a normal forklift into a mobile scale. Fitted with COMPACT weight indicator in the cabin, versatile and easy to use. Available also in approved version for legal-for-trade use.

WEIGHING FEATURES

  • Max. permissible overload: over 300% of the maximum capacity, with overload protection nuts in case of hinge breaking.
  • Accuracy:
    • internal use: +/- 0.05% of the capacity
    • approved: according to CE certification (Directive 2014/31/EU)
  • Max. horizontal inclination (tilting): +/- 2° with the same precision characteristics
Request More Information
LTW Compact (1)

WHY CHOOSE LTW COMPACT DINI ARGEO



TECHNICAL FEATURES

  • Plate dimensions 910 x 407 x 110 mm
  • Weight 184 kg
  • Max. fork length: 1100 mm
  • Max. center of gravity displacement: 55 mm
  • Plate supporting structure made of thick steel
  • Hermetic junction box
  • Extensible cable as standard (length 5 m)

COMPACT WEIGHT INDICATOR FEATURES

  • Weight indicator in ABS with backlit LCD 25mm display with 6 high contrast digits and icons for showing the active functions.
  • Fitted with fixing bracket for mounting in the cabin.
  • Functional waterproof keypad with 5 keys.
  • Easy to clean ABS IP68 enclosure, resistant to harsh and corrosive environments.
  • Visual and audible overload indication.
  • Auto-off (energy saving): 5 minutes adjustable or deactivable.
  • Power supply directly from the forklift (optional power supply available)
  • Optional printer complete with fixing bracket for mounting in the cabin

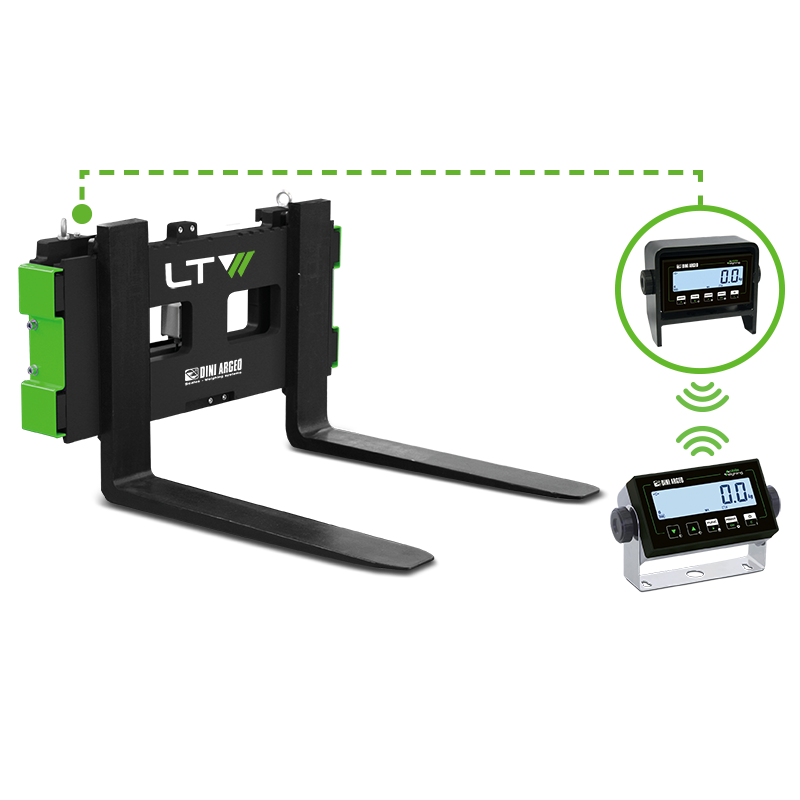

DISPLAY ON THE WEIGHING PLATE (Wireless Personal Area Network version)

  • Backlit 25mm LCD display with 6 high-contrast digits and icons for indicating active functions.
  • ABS IP68 case, easy to clean and resistant in harsh and corrosive environments.
  • Communication with the weight indicator in the cabin through Wireless Personal Area Network (WPAN).
  • Power supply through internal rechargeable battery, with 60h working autonomy and external battery charger provided as standard.



Code Max (kg) d (kg) M (kg*)
LTWC15 600 / 1500 0,2 / 0,5 1 / 2
LTWC25 1500 / 2500 0,5 / 1 2 / 5
LTWC15BTH 600 / 1500 0,2 / 0,5 1 / 2
LTWC25BTH 1500 / 2500 0,5 / 1 2 / 5

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Compact Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|ATEX Load Cells|Hygienic Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
LTWC15 Forkholder plate Max=600/1500kg, d=0,2/0,5kg for forklifts, with weight indicator in the cabin and cable connection. Steel structure. FEM II.

Consult
LTWC15BTH Forkholder plate Max=600/1500kg, d=0,2/0,5kg for forklifts, with weight indicator in the cabin and Bluetooth connection. Steel structure. FEM II.

Consult
LTWC25 Forkholder plate Max=1500/2500kg, d=0,5/1kg for forklifts, with weight indicator in the cabin and cable connection. Steel structure. FEM II.

Consult
LTWC25BTH Forkholder plate Max=1500/2500kg, d=0,5/1kg for forklift, with weight indicator in the cabin and Bluetooth connection. Steel structure. FEM II.

Consult

Options

Power Supply

Part # Description List Price Cart/Quote
AL936V5 Power adapter for the indicator and thermal printer in cabin (mounting not included). From 9 to 36 Vdc input (directly from the lift truck), 5 Vdc 6A output (max 30W).

Consult
AL1872V5 Power adapter for the indicator and thermal printer in cabin (mounting not included). From 18 to 72 Vdc input (directly from the lift truck), 5Vdc 6A output (max 30W).

Consult
AL40160V5 Power adapter for the indicator and thermal printer in cabin (mounting not included). From 40 to 160 Vdc input (directly from the lift truck), 5Vdc 6A output (max 30W).

Consult

Calibration Service (ACCREDIA/DAKKS) Only at Time of Order

Approval for Sale to Third Parties

Storing Weighments

Communication Interfaces (Wired Version Only)

Optional Fixing Bracket for Indicator

Printers / Labelers

Expendable Materials

Other Options
