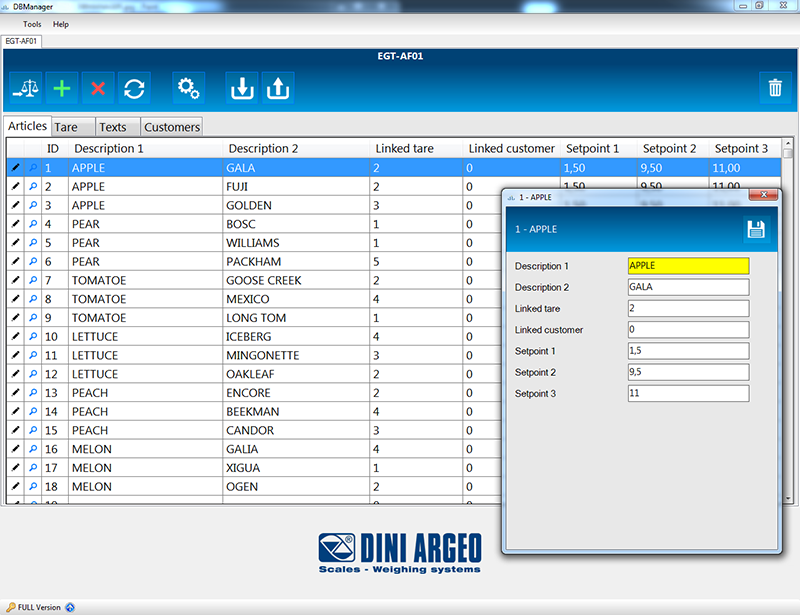

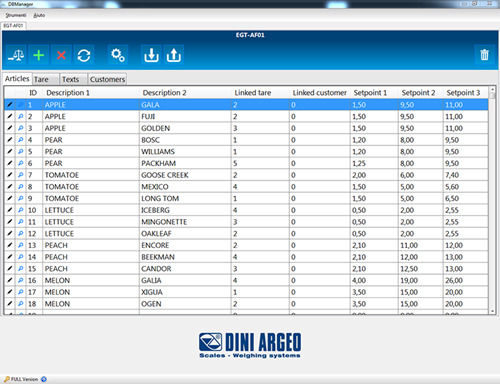

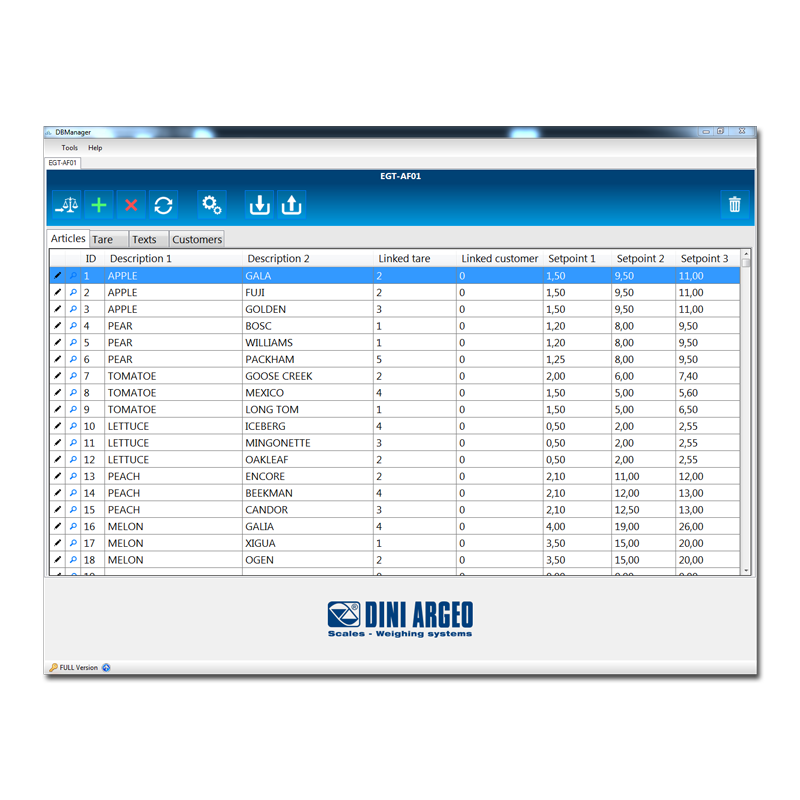

DBMANAGER PC Software Designed for Quickly Compiling the Databases of Your Scale

Easy to configure: in a few minutes you can program and transmit dozens of articles, keeping them even in memory.
Security: you can set a protection password to protect your entries data and to prevent accidental changes.
Customisation: you can insert your logo and translate the user interface directly in your own language (.ini file).
Multi-scale: up to 10 scales can be configured from the same programme (attention: requires multi-scale licence, to be specified when ordering).
Management of the main communication modes: RS232, USB, Ethernet-Wifi (TCP-IP).

PC software which facilitates and speeds up the compiling of the scale's databases, with the possibility to import/export them in a Excel format.

DBMANAGER PC Software Specifications

Functions:
Self-identification of the connected indicator
Configurable fields of each database
Receive or Transmit Databases
Import / Export to Excel file

Minimum Requirements:
Pentium IV or equivalent - 256 Mb Ram
200 MB of empty space on disk
Windows 10
Internet Explorer 6.0 SP1 or greater
Framework 4.5
Monitor with 800x600 minimum resolution, 256 colors

Upon Request:
License for managing more Dini Argeo scale.

Supported Products:
3590ET/3590ETT/3590ETB/3590ETKR/3590EGT
3590EXP/3590EXT
CPWE

Supported Programs:
AF01
AF02
AF03
AF04
AF05
AF09
BATCH1
BATCH

Parts

Available Versions

	Part #	Description	List Price	Cart/Quote
	DBM	PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale).	Consult	View

Options

License Regeneration

Part #	Description	List Price	Cart/Quote
LICGEN	PC software license regeneration. To regenerate the license it is necessary to fill in the "New Software License" form that can be downloaded in the Download section. NET PRICE (*)	Consult	View
