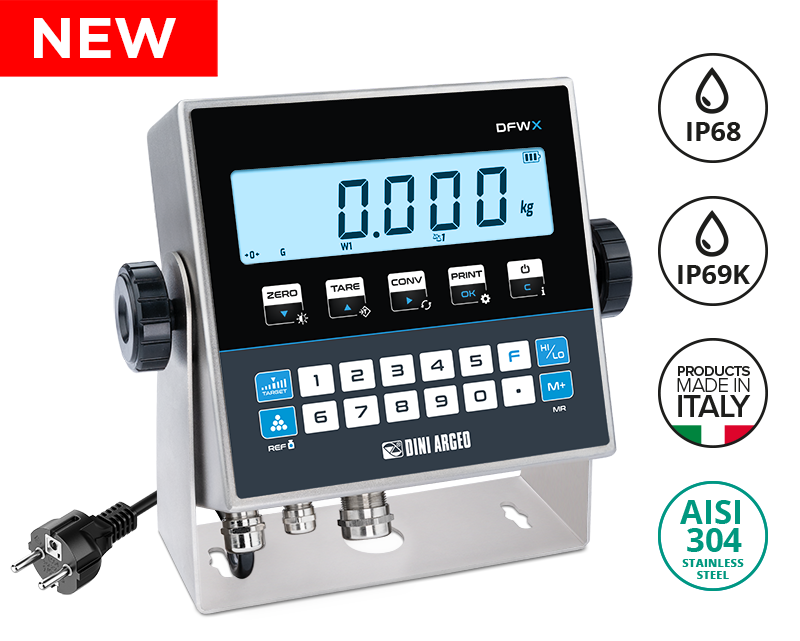

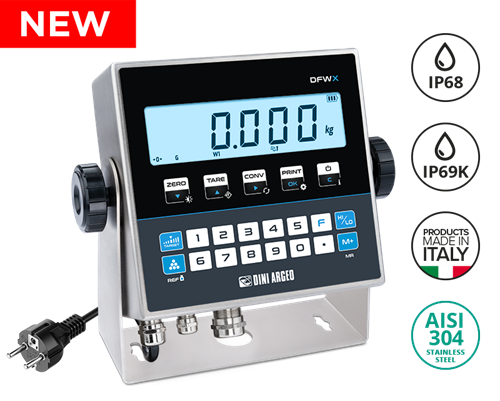

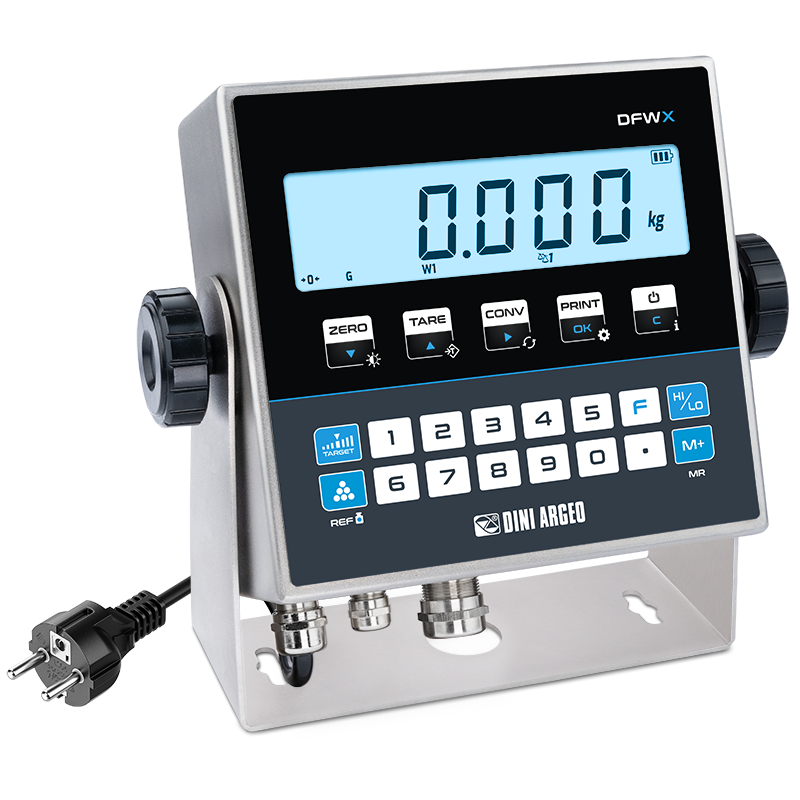

DFWX: IP68/IP69K MULTIFUNCTION WEIGHT INDICATOR

INPUT:

For DFWX and DFWX-ETH models

• Internal power supply 110/230VAC
• 1m power cord and EU, UK, AUS, US plug depending on model (CH optional)

For Model DFWXB - DFWXB-WIFI

• • Internal Lithium battery (duration of up to 100h depending on the model and mode of use)
  • Internal power supply 230VAC\12VDC
  • 1m power cord and EU, UK, AUS, US plug depending on model (CH optional)

AVAILABLE LANGUAGES IN PRINT:

• IT, EN, FR, DE, ES, PT, PL, RO, EL*
  * For Chinese and Greek, printer/labeler programming is required (CODEPG, only when ordering)

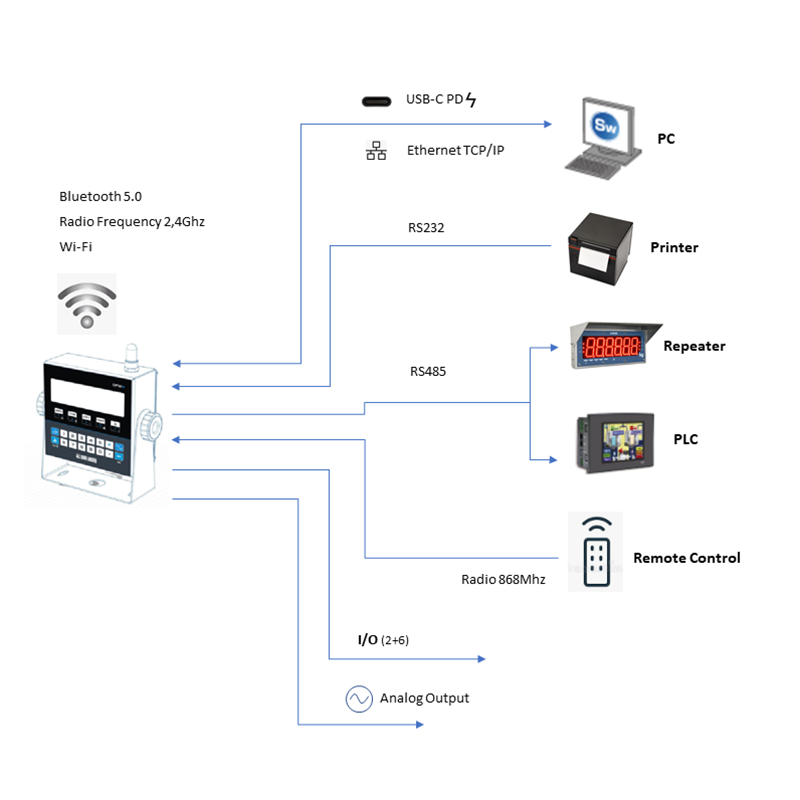

COMMUNICATION PORTS – INPUTS\OUTPUTS:

• RS232 on screw terminals for connection to PC/Dini Argeo printers
• RS232 on AMP connector, with CTS, for connection to Dini Argeo printer
• RS485 on screw terminals for connection to PC/PLC, with Modbus RTU or ASCII protocol
• USB-C for connection to PC
• Ethernet TCP\IP port (model DFWX-ETH). (Includes Modbus-TCP protocol)
• WiFi Port (Model DFWXB-WIFI)

  Optional:
• RadioFrequency 2.4GHz
• BLE 5.0

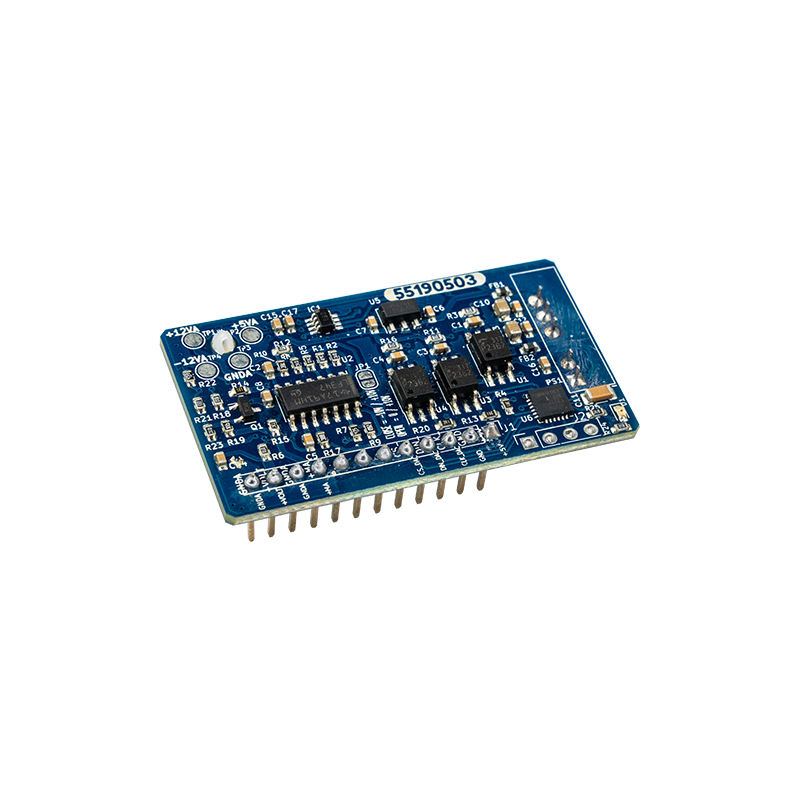

• Analog output
• Expansion board with 2 IN and 6 OUT digital

Consult the technical manual for more technical information.

The communication ports are independent of each other and can all work together at the same time.

✓ = standard
Opt = optional, integrated
Opt (Ext) = Optional external box, occupies one RS232 serial port

NEW MULTIFUNCTIONAL PROGRAM:

DFWX's new weighing program revolutionizes the concept of multifunction, allowing multiple functions to be used simultaneously:

• Conversion of weight to lb, N or customized

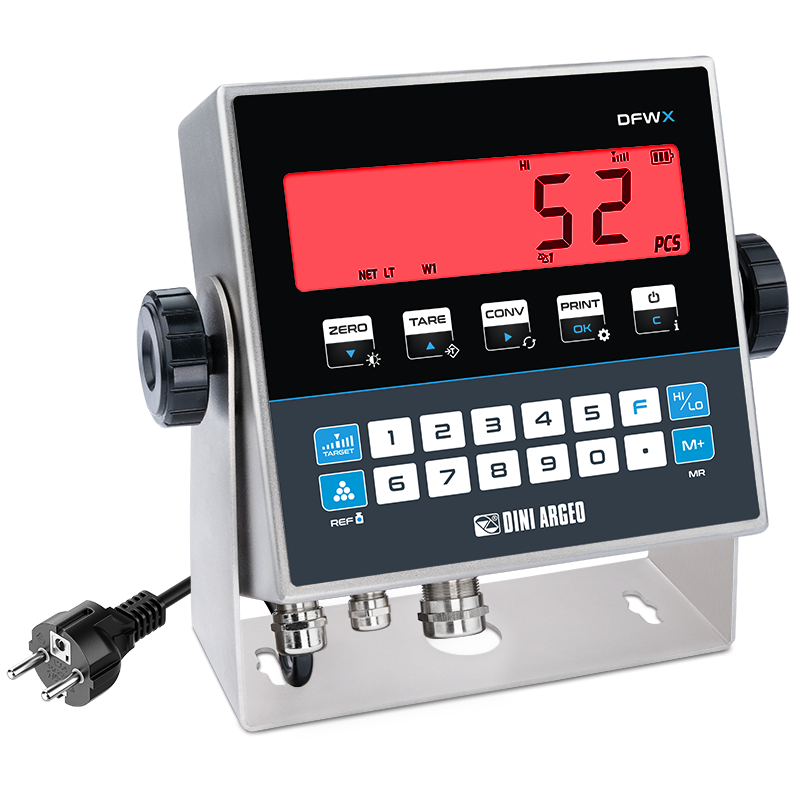

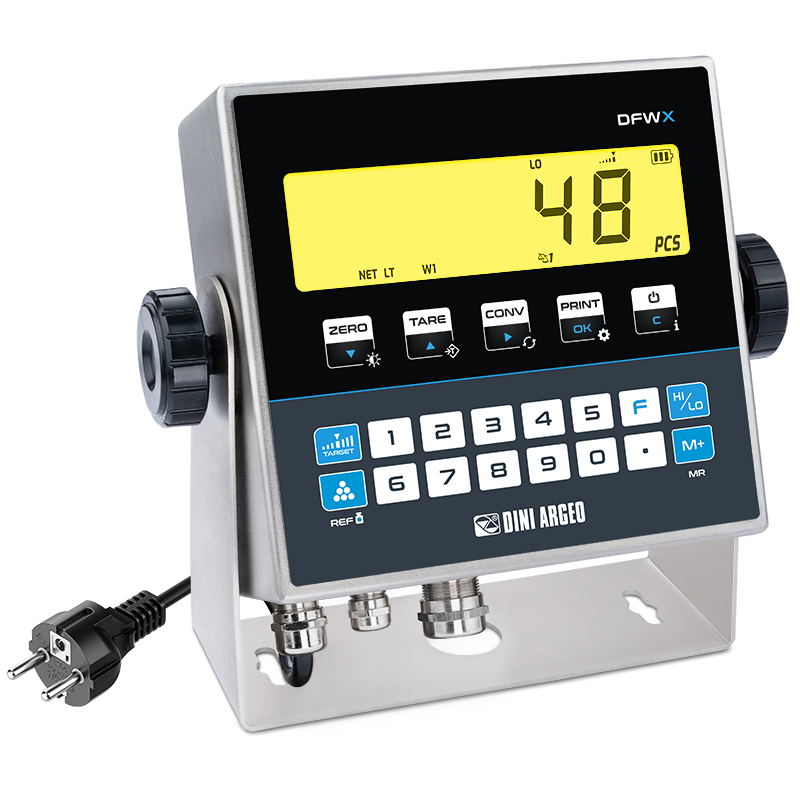

• Counting pieces in loading or unloading
• Piece-weight control in loading or unloading, with thresholds programmable from keypad or via communication protocol
• Piece-weight totalization
• Automatic Tare function

The combination of multiple modes of operation, combined with programming flexibility, make the DFWX the new benchmark for configurable weight indicators

METROLOGICAL CERTIFICATIONS:

• EU Type Examination Certificate (45501:2015)
