Product PDF

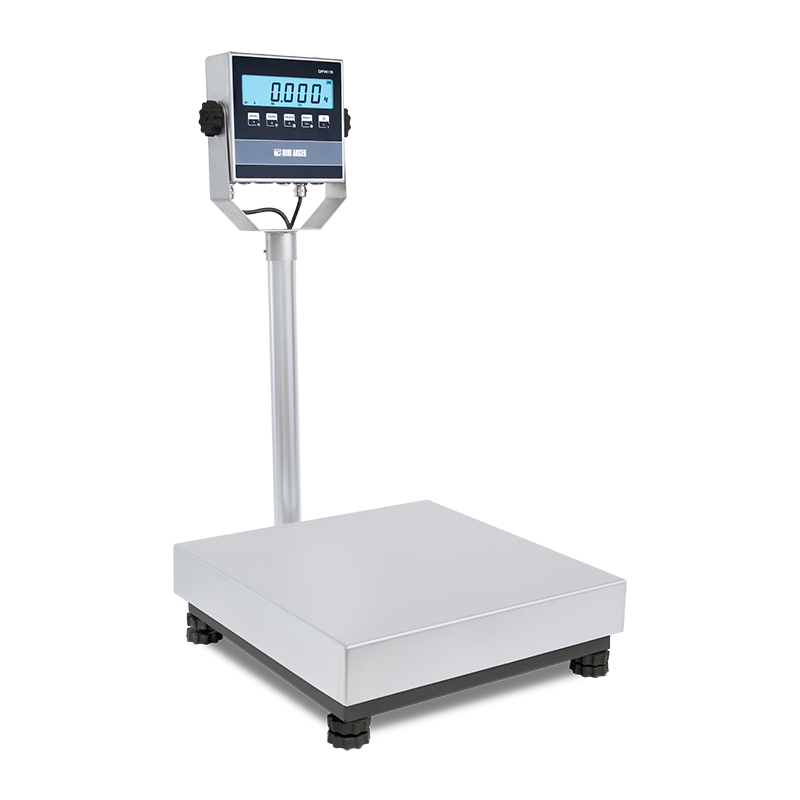

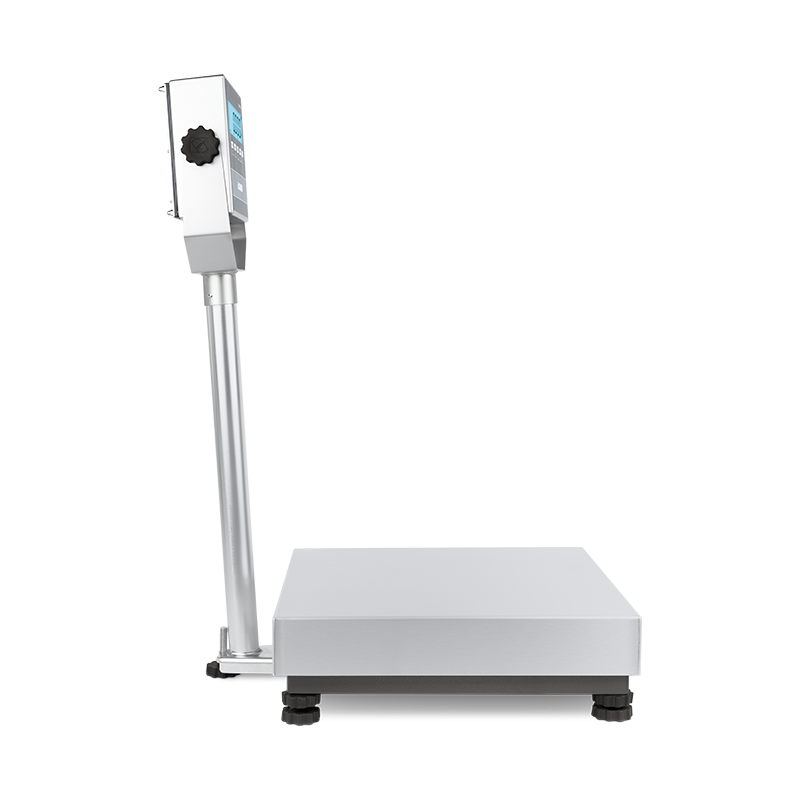

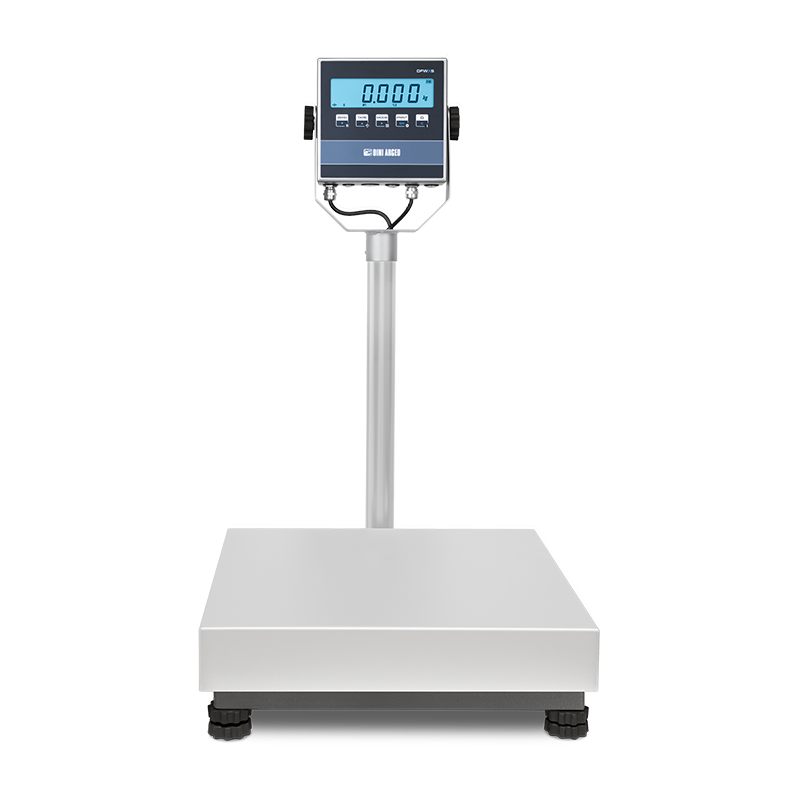

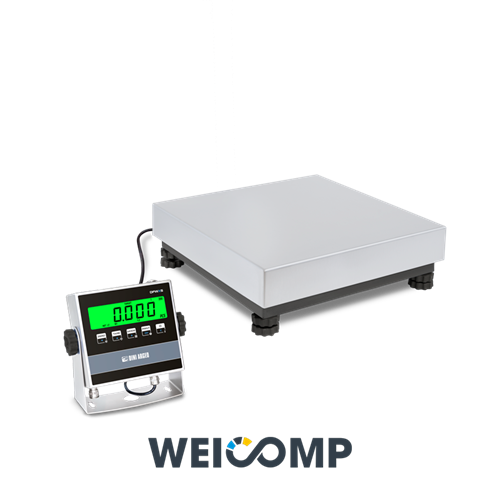

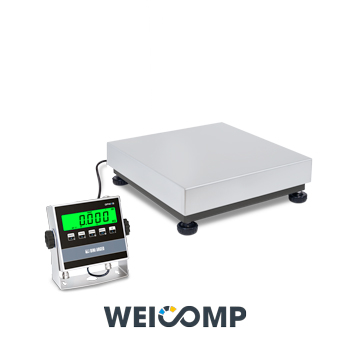

WEICOMP Pro Series bench scale

Platform Features

Sturdy painted steel structure.
AISI 304 stainless steel loading surface with satin finish.
Loadcell overload protection stops.
High-precision aluminum load cell with IP67 protection. OIML R60 approved in class C3 or C3MR.
Adjustable feet.
Level bubble integrated into the structure.

Weight Indicator Features

Multifunction weight indicator in AISI 304 stainless steel.
25mm 6-digit LCD display with interactive RGB color backlighting.
5-key numeric function keypad.
Support bracket with adjustable angle, with fixing holes.
Load cell connection to the weight indicator via IP67 connector.
Internal power supply 230 VAC / 12 VDC, with 1,5m cable and EU or UK plug.
Internal rechargeable NiMH battery, with approx. 80h autonomy; Charging time approximately 6 hours.
Configurable energy saving functions to minimize energy consumption.

Request More Information

Professional performance, robust design and reliable precision.

This scale combines a solid painted steel structure with an AISI 304 stainless steel platform and IP67 aluminum load cell, ensuring strength and reliability even in the most demanding environments.

The multifunction weight indicator with stainless steel case, interactive RGB color display, and 230 VAC power supply with integrated NiMh battery ensures maximum visibility and autonomy. Certified in accuracy classes C3 and C3MR, it offers unparalleled weighing speed and stability.
Entirely designed and built in Italy, it is the ideal choice for those seeking quality and performance.

Specifications

Main functions

Net or gross weight control, according to sample.
Take away weight control.
Piece counting and control.
Weighing in percentages.
Weight conversion to lb, or with a freely programmable conversion factor.
Totalization.
Formulation.
Automatic tare.
Manual dosing.
Animal weighing.

Input/Output Communication Ports

RS232 on screw terminals for connection to Dini Argeo PCs/printers.
RS232 on AMP connector, with CTS, for connection to
Dini Argeo printers.
RS485 on screw terminals for connection to PCs/PLCs,
with Modbus RTU or ASCII protocol.
USB-C for connection to PCs.
Customizable weight communication string.

Optional:
WiFi port.
Ethernet TCP/IP port (includes Modbus-TCP protocol).

Options

Optional stainless steel column, available heights 350 / 500 / 700 mm.
Roller unit.
Calibration certificate.
Approvals 3000e, 3000+3000e.
Communication interfaces.
Alibi memory.

Available Versions

Code	l x w x h (mm)	Max (kg)	d (g)	M (g*)	Notes
W33-6-PRO	330x330x90	6	2	2
W33-15-PRO	330x330x90	15	5	5
W33-30-PRO	330x330x90	30	10	10
W44-30-PRO	400x400x115	30	10	10
W44-60-PRO	400x400x115	60	20	20
W44-150-PRO	400x400x115	150	50	50
W45-30-PRO	400x500x115	30	10	10
W45-60-PRO	400x500x115	60	20	20
W45-150-PRO	400x500x115	150	50	50
W66-60-PRO	600x600x137	60	20	20
W66-150-PRO	600x600x137	150	50	50
W66-300-PRO	600x600x137	300	100	100
W33-6-UK-PRO	330x330x90	6	2	2	UK PLUG
W33-15-UK-PRO	330x330x90	15	5	5	UK PLUG
W33-30-UK-PRO	330x330x90	30	10	10	UK PLUG
W44-30-UK-PRO	400x400x115	30	10	10	UK PLUG
W44-60-UK-PRO	400x400x115	60	20	20	UK PLUG
W44-150-UK-PRO	400x400x115	150	50	50	UK PLUG
W45-30-UK-PRO	400x500x115	30	10	10	UK PLUG
W45-60-UK-PRO	400x500x115	60	20	20	UK PLUG
W45-150-UK-PRO	400x500x115	150	50	50	UK PLUG
W66-60-UK-PRO	600x600x137	60	20	20	UK PLUG
W66-150-UK-PRO	600x600x137	150	50	50	UK PLUG
W66-300-UK-PRO	600x600x137	300	100	100	UK PLUG

(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Roller conveyor/Platform compatibility

Roll Cover Plate	Platform	Only for internal use	Legal for trade
TT-RP	W33-30-PRO	X	X
TQ-RP	W44-30-PRO	X	-
	W44-60-PRO	X	X
	W44-150-PRO	X	X
TX-RP	W66-60-PRO	X	X
	W66-150-PRO	X	X
	W66-300-PRO	X	X

NOTE: not available in ATEX version.

Resources/Downloads

Additional files

Title	Download	Email
WEICOMP MediaKit	Download	Email

Parts

Available Versions

Part #	Description	List Price	Cart/Quote
W33-6-PRO	Bench and floor scale with 6 kg capacity, 2 g division, 300x300 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W33-15-PRO	Bench and floor scale with 15 kg capacity, 5 g division, 300x300 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W33-30-PRO	Bench and floor scale with 30 kg capacity, 10 g division, 300x300 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W44-30-PRO	Bench and floor scale with 30 kg capacity, 10 g division, 400x400 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W44-60-PRO	Bench and floor scale with 60 kg capacity, 20 g division, 400x400 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W44-150-PRO	Bench and floor scale with 150 kg capacity, 50 g division, 400x400 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W45-30-PRO	Bench and floor scale with 30 kg capacity, 10 g division, 400x500 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W45-60-PRO	Bench and floor scale with 60 kg capacity, 20 g division, 400x500 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W45-150-PRO	Bench and floor scale with 150 kg capacity, 50 g division, 400x500 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W66-60-PRO	Bench and floor scale with 60 kg capacity, 20 g division, 600x600 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W66-150-PRO	Bench and floor scale with 150 kg capacity, 50 g division, 600x600 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W66-300-PRO	Bench and floor scale with 300 kg capacity, 100 g division, 600x600 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, internal rechargeable Ni-Mh battery.	Consult	View
W33-6-PRO-UK	Bench and floor scale with 6 kg capacity, 2 g division, 300x300 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W33-15-PRO-UK	Bench and floor scale with 15 kg capacity, 5 g division, 300x300 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W33-30-PRO-UK	Bench and floor scale with 30 kg capacity, 10 g division, 300x300 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W44-30-PRO-UK	Bench and floor scale with 30 kg capacity, 10 g division, 400x400 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W44-60-PRO-UK	Bench and floor scale with 60 kg capacity, 20 g division, 400x400 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W44-150-PRO-UK	Bench and floor scale with 150 kg capacity, 50 g division, 400x400 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W45-30-PRO-UK	Bench and floor scale with 30 kg capacity, 10 g division, 400x500 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W45-60-PRO-UK	Bench and floor scale with 60 kg capacity, 20 g division, 400x500 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W45-150-PRO-UK	Bench and floor scale with 150 kg capacity, 50 g division, 400x500 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W66-60-PRO-UK	Bench and floor scale with 60 kg capacity, 20 g division, 600x600 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W66-150-PRO-UK	Bench and floor scale with 150 kg capacity, 50 g division, 600x600 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View
W66-300-PRO-UK	Bench and floor scale with 300 kg capacity, 100 g division, 600x600 mm stainless steel loading surface. Stainless steel weight indicator, backlit LCD display, waterproof 5-key keypad, with 110/240VAC power supply, UK plug, and internal rechargeable Ni-Mh battery.	Consult	View

Options

Legal for trade approval, class III or IIII, with Dini Argeo weight indicator (only at time of order)

Part #	Description	List Price	Cart/Quote
ECEM	Single range 3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2	Multi-range 3000+3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.	Consult	View

High Resolution (d HR) (only at time of order)

Part #	Description	List Price	Cart/Quote
THR	High Resolution (HR) model.	Consult	View

Calibration service with weight indicator

Part #	Description	List Price	Cart/Quote
CT3	ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT4	ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT5	ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Columns, Supports Brackets, Visors

Part #	Description	List Price	Cart/Quote
TCBI350-2	Stainless Steel column, length 350mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL). NOTE: -2 column models do not include the indicator holder bracket.	Consult	View
TCBI500-2	Stainless Steel column, length 500mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL).	Consult	View
TCBI700-2	Stainless Steel column, length 700mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded (to be combined with DFWXCL or 3590CL).	Consult	View
DFWLXCL	Support bracket for DFWLX series indicators.	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart/Quote
FO-ETH	Ethernet TCP/IP port - Modbus TCP, mounting included.	Consult	View
FO-WIFI	WiFi communication port with IP68/IP69K antenna, mounting included.	Consult	View

Connection Cables

	Part #	Description	List Price	Cart/Quote
	RSCBUSB-1	USB PC/RS232 converter cable, l=1,5m. USB/RJ11 connector.	Consult	View

Alibi Memory for type-Approved Communication

	Part #	Description	List Price	Cart/Quote
	FO-ALMEM3V3-1	Alibi memory (fiscal memory, max. 120,000 weighings) for approved transmission of weight to PC/PLC or storage on MMC/USB. Integrated clock/calendar for printing date/time with PCB, terminals, plastic box (requires FW 05.00.02 or higher). Mounting included.	Consult	View
	D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Consult	View

Printers / Labelers

Part #	Description	List Price	Cart/Quote
PR80-3	Thermal printer with paper cutter. Paper roll not included.	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll Ø 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View

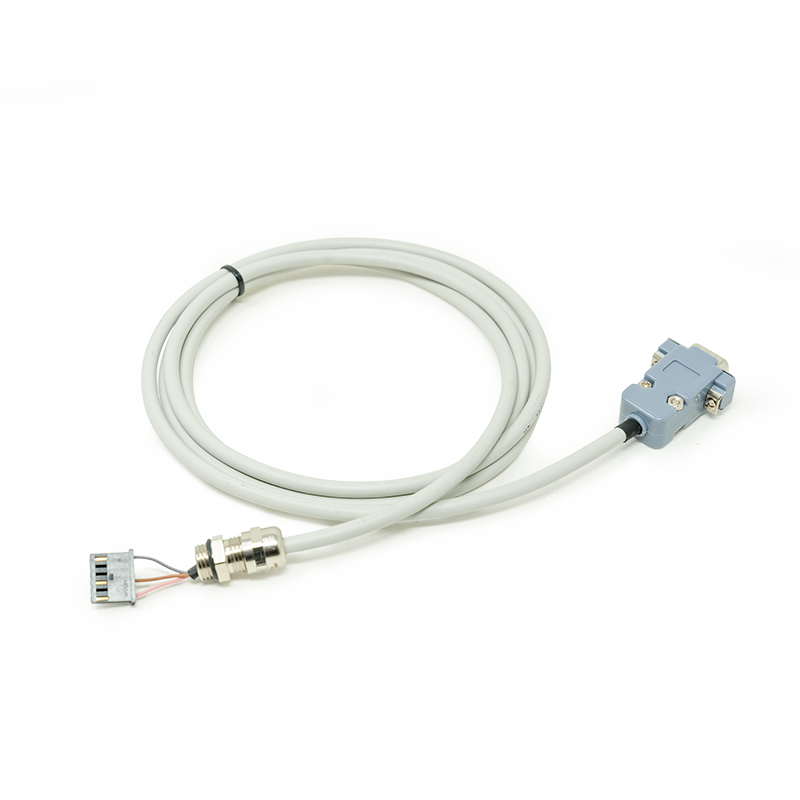

RSCBLPA	Cable with AMP RS232 connector l=1.5m, for LP542xx, SMTPLUS printers.	Consult	View
RSCBLPA10M	Cable with AMP RS232 connector l=10m, for LP542xx, SMTPLUS printers.	Consult	View
RSCBSHTP	1,5 m cable for connecting PR80-3 printer.	Consult	View
RSCBSHTP10M	10m cable for connection to the PR80-3 printer.	Consult	View

Roller unit

Part #	Description	List Price	Cart/Quote
TT-RP	330x330mm roller conveyor with Ø=32mm galvanized idler rollers, 60mm pitch.	Consult	View
TQ-RP	400x400mm roller conveyor with Ø=32mm galvanized idler rollers, 60mm pitch.	Consult	View
TX-RP	600x600mm roller conveyor with Ø=32mm galvanized idler rollers, 60mm pitch.	Consult	View
