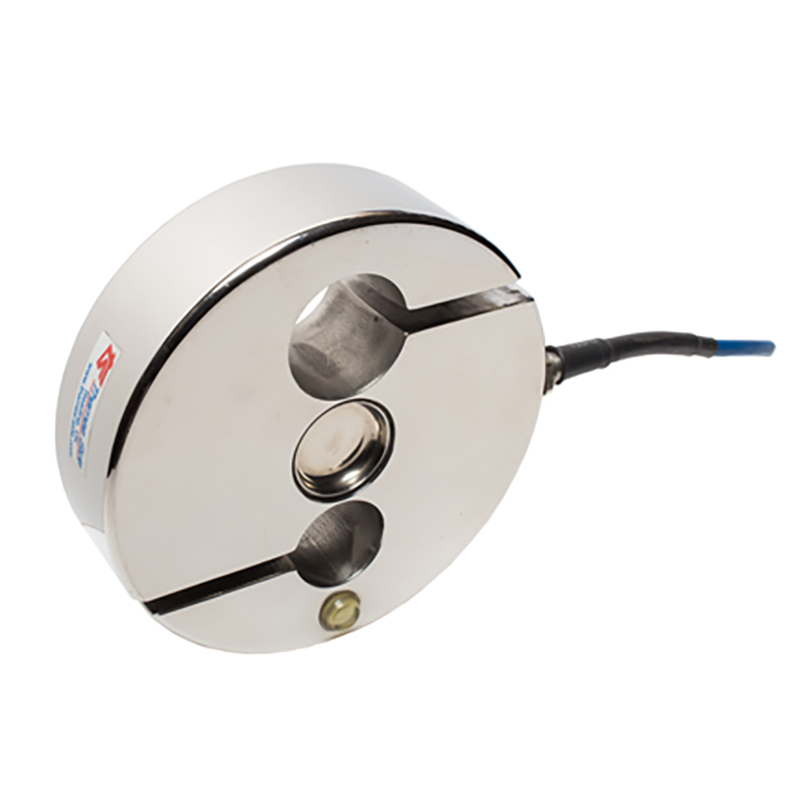

T95 Series: Tension Load Cell

  • Stainless steel load sensor
  • Fully welded and hermetically sealed construction to IP68/IP69K
  • Simple installation
  • Load cell is always in tension
  • OIML C3 (3000 divisions) approval
  • OIML certificate available upon request
  • Ideal in mixer and vibrating applications
Request More Information
T95



CAPACITIES (kg): 10000.

OIML R60. C3 precision class.

Stainless steel. IP68/IP69K protection.

FOR HIGH ACCURACY APPLICATIONS

The T95 tension stainless steel load cell is most suitable for high accuracy applications where movement or vibration is present, e.g. mixers, agitators, catalyst vessels, weighing platforms, axle weighers and vehicle weigh-in-motion (WIM) systems. The T95 load cell is also available with ATEX and IECEx approval certification for all gas and dust zones. Barriers are not required for use in gas zone 2 or dust zones 20, 21, 22.

Load Cell Capacities (Emax):
10000 kg (2000, 5000 kg on request)

Accuracy Class:
3000 n.OIML

Rated Output (Sn):
2 mV/V ± 0.25%

Combined Error:
< ± 0.017 % Sn

Non-repeatability:
< ± 0.015 % Sn

Temperature Effect on Zero Balance:
< ± 0.002 % Sn / ˚C

Temperature Effect on Span:
< ± 0.0012 % Sn / ˚C

Compensated Temperature Range:
-10 to +40 ˚C

Operating Temperature Range:
-40 to +80 ˚C

Safe Overload:
150 % Emax

Ultimate Overload:
300 % Emax

Zero Balance:
< ± 2 % Sn

Input Resistance:
380 Ω ± 30

Output Resistance:
350 Ω ± 5



Insulation Resistance:
> 5000 MΩ @ 100V

Recommended Supply Voltage:
5 - 15 V

Maximum Supply Voltage:
15 V

Environmental Protection:
IP68 / IP69K

Cable:
10 m length, 5.7 mm diameter, polyurethane material

Nominal Shipping Weight - Load Cell:
4 kg



Wiring Code
Color
Function
RED
INPUT +
BLUE
INPUT-
BLACK
SENSE +
WHITE
SENSE -
GREEN
OUTPUT +
YELLOW
OUTPUT -



  • The T95 load cell has a number of ATEX and IECEx certification options.

Parts

Available Versions

Part # Description List Price Cart/Quote
T95-10T T95 tension load cell, C3 OIML approved, Max= 10.000kg.

Consult
