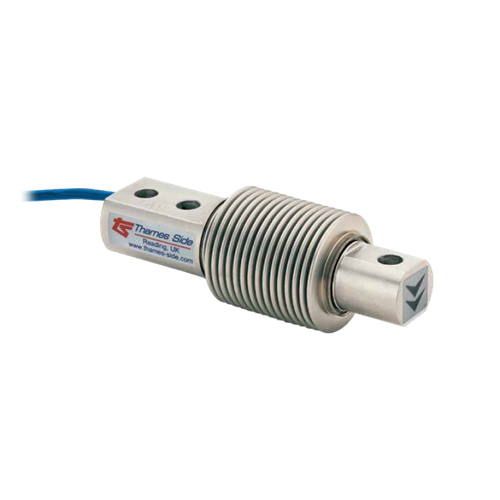

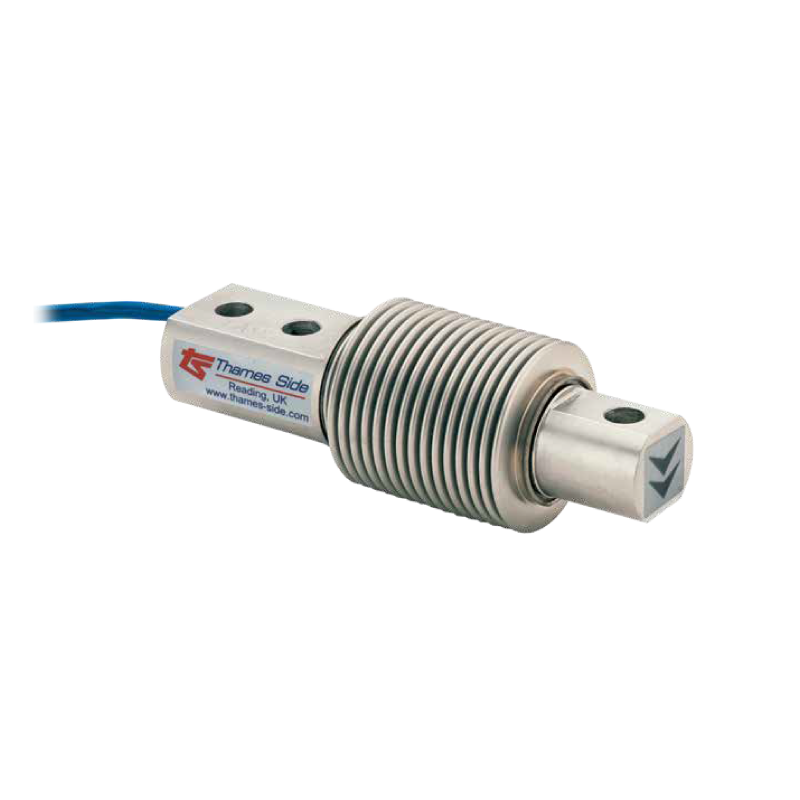

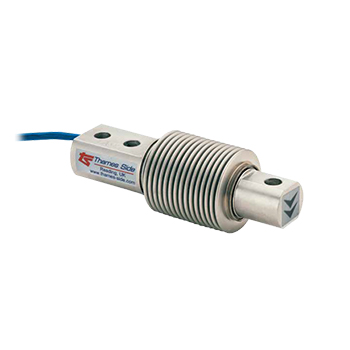

T66 Series: Bending Beam Load Cell

  • Stainless steel load sensor
  • Hermetically sealed, fully welded construction
  • High durability Polyurethane cable
  • IP68 / IP69K Protection
  • 3000 divisions OIML R60 Class C
  • Option: 6000 divisions OIML R60 Class C
  • High Integrity cable entry
  • C3 version available with 4 wire cable on request
  • Available in high temperature version on request
  • Available ATEX and IECEx version on request
  • OIML certificate available upon request
  • Available with optional Parylene coating on request
Request More Information
T66



CAPACITIES (kg): 5, 10, 20, 30, 50, 75, 100, 200.

OIML R60. C3 or C6 precision class.

Stainless steel. IP68/IP69K protection.



This fully welded stainless steel bending beam load cell is hermetically sealed to IP68 / IP69K and can be used in the harshest industrial environments. It is suitable for weighing platforms, bag fillers, belt weighers and tank weighing in the Food Processing, Chemical, Pharmaceutical and general Bulk Handling industries.

Accuracy Class:
C3: 3000 [OIML C3 (3000 division) approval from 10-250kg]
C6: 6000 [OIML C6 (6000 division) approval from 50-250kg]

Load Cell Capacity (Emax):
C3: 5, 10, 20, 30, 50, 75, 100, 150, 200 (250, 300, 500 kg on request)
C6: 50, 75, 100, 150, 200 (250 kg on request)

Rated Output (Sn):
2 mV/V ± 0.1 % [For 5-20kg capacity range, rated output (Sn) tolerance is ± 0.2 %]

Combined Error:
C3: < ± 0.017 % Sn
C6: < ± 0.008 % Sn

Non-repeatability:
C3: < ± 0.015 % Sn
C6: < ± 0.01 % Sn

Minimum load cell verification interval (vmin) = Emax / Y
C3: Emax / 10000 kg
C6: Emax / 18000 kg

Creep (30 minutes):
C3: < ± 0.016 % Sn
C6: < ± 0.008 % Sn



Temperature Effect on Zero Balance:
C3: < ± 0.002 % Sn/˚C
C6: < ± 0.001 % Sn/˚C

Temperature Effect on Span:
C3: < ± 0.0012 % Sn/˚C
C6: < ± 0.0006 % Sn/˚C

Compensated Temperature Range:
-10 to +40 ˚C

Operating Temperature Range:
-30 to +70 ˚C

Safe Overload:
200 % Emax

Ultimate Overload:
300 % Emax

Zero Balance:
< ± 2 % Sn

Input Resistance:
400 Ω ± 20

Output Resistance:
350 Ω ± 3



Insulation Resistance:
> 5000 MΩ @ 100V

Recommended Supply Voltage:
5-15 V

Maximum Supply Voltage:
15 V

Environmental Protection:
IP68 / IP69K

Maximum deflection at Emax:
0.2-0.4 mm

Cable:
3 m length, 5.7 mm diameter, polyurethane material

Nominal Shipping Weight:
0.5 kg

Wiring Code
Color
Function
RED
INPUT +
BLUE
INPUT-
BLACK
SENSE +
WHITE
SENSE -
GREEN
OUTPUT +
YELLOW
OUTPUT -



The T66 load cell has a number of ATEX and IECEx certification options.

T66 drawing

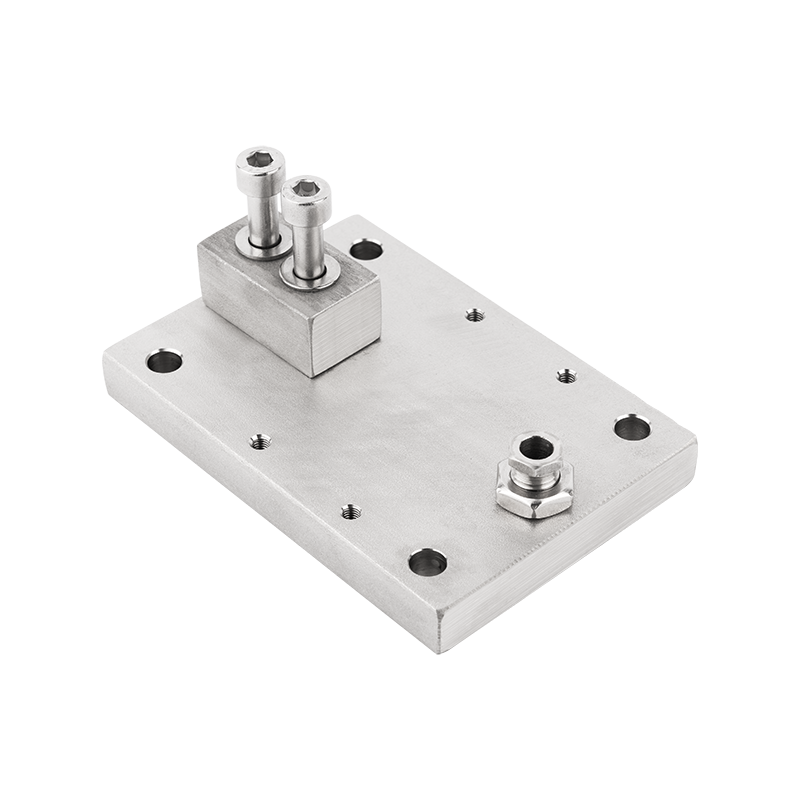

Parts

Available Versions

Part # Description List Price Cart/Quote
T66-5KG-6C T66 bending beam load cell, Max= 5kg.

Consult
T66-10KG-6C T66 bending beam load cell, C3 OIML approved, Max= 10kg.

Consult
T66-20KG-6C T66 bending beam load cell, C3 OIML approved, Max= 20kg.

Consult
T66-30KG-6C T66 bending beam load cell, C3 OIML approved, Max= 30kg.

Consult
T66-50KG-6C T66 bending beam load cell, C3 OIML approved, Max= 50kg.

Consult
T66-50KG-OIML-C6 T66 bending beam load cell, C6 OIML approved, Max= 50kg.

Consult
T66-75KG-6C T66 bending beam load cell, C3 OIML approved, Max= 75kg.

Consult
T66-75KG-OIML-C6 T66 bending beam load cell, C6 OIML approved, Max= 75kg.

Consult
T66-100KG-6C T66 bending beam load cell, C3 OIML approved, Max= 100kg.

Consult
T66-100KG-OIML-C6 T66 bending beam load cell, C6 OIML approved, Max= 100kg.

Consult
T66-150KG-6C T66 bending beam load cell, C3 OIML approved, Max= 150kg.

Consult
T66-150KG-OIML-C6 T66 bending beam load cell, C6 OIML approved, Max= 150kg.

Consult
T66-200KG-6C T66 bending beam load cell, C3 OIML approved, Max= 200kg.

Consult
T66-200KG-OIML-C6 T66 bending beam load cell, C6 OIML approved, Max= 200kg.

Consult
