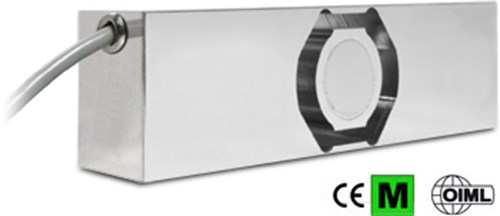

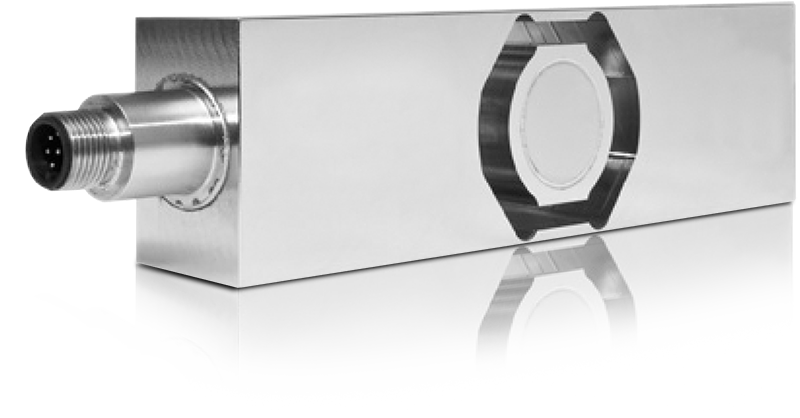

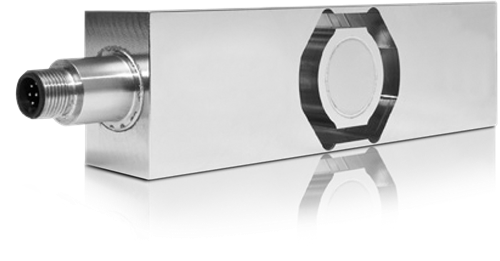

SPSY Series Single Point Stainless Steel Load Cells

  • C3 precision class
  • Off center load compensated
  • Made in 17-4 ph stainless steel
  • IP68/IP69k protection
  • Max. capacities from 10 to 100 kg
  • For platforms with dimensions up to 500 x 400 mm
  • Shielded connection cable
  • Test certificate available upon request
Request More Information
SPSY

CAPACITIES (kg): 10, 20, 50, 100.

OIML R60. C3 precision class.

17-4 PH stainless steel. IP68/IP69K protection.

Stainless steel load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 500x400 mm.



Minimum load cell verification interval:
 Vmin = EMax / 10.000

Maximum number of verification intervals:
 nLC = 3000

Full Scale Output:
 2mV/V +/- 10%

Temperature effect on zero:
±0,014% F.S./10K

Temperature effect on full scale output:
±0,0117% F.S./10K (-10°C/+20°C)
±0,0175% F.S./10K (+20°C/+40°C)

Compensated Temperature Range:
 -10°C/+40°C

Operating Temperature Range:
-10°C/+50°C

Creep at nominal load in 30 minutes:
± 0,01% F.S.

Maximum tolerated excitation voltage:
 15 VDC

Input Resistance:
 380 ± 15 Ohm

Output Resistance:
350 ± 10 Ohm

Insulation Resistance (100V):
>2000 MOhm

Safe Overload:
150% F.S.

Ultimate Overload:
300% F.S.

Nominal displacement:
< 0.5 mm

Shielded cable:
6-wire shielded cable, 3m long, 5mm diameter

Wiring Code
Colour
Function
WHITE
OUTPUT +
GREEN
SENSE +
BLUE
INPUT +
RED
OUTPUT -
BLACK
INPUT -
GREY
SENSE -

Code Max
(kg)		 Plate Max
(mm)

l
(mm)

 w
(mm)		 h
(mm)		 a
(mm)		 b
(mm)		 c Ø
(mm)		 d
(mm)		 e
(mm)		 f
(mm)
SPSY10  10 500 x 400 150 25 40 19 100 N°8 x M6 35 12 6
SPSY20 20 500 x 400 150 25 40 19 100 N°4 x M6 35 12 6
SPSY50 50 500 x 400 150 25 40 19 100 N°4 x M6 35 12 6
SPSY100 100 500 x 400 150 25 40 19 100 N°4 x M6 35 12 6
