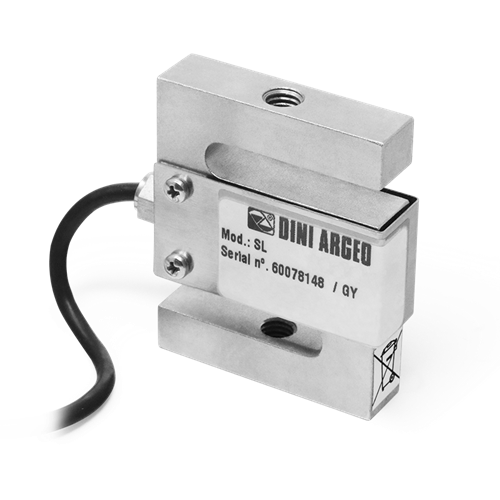

SL Series Tension Load Cells

  • Alloy steel construction
  • IP67 protection rating
  • Max. capacities from 15 to 1000 kg



Request More Information

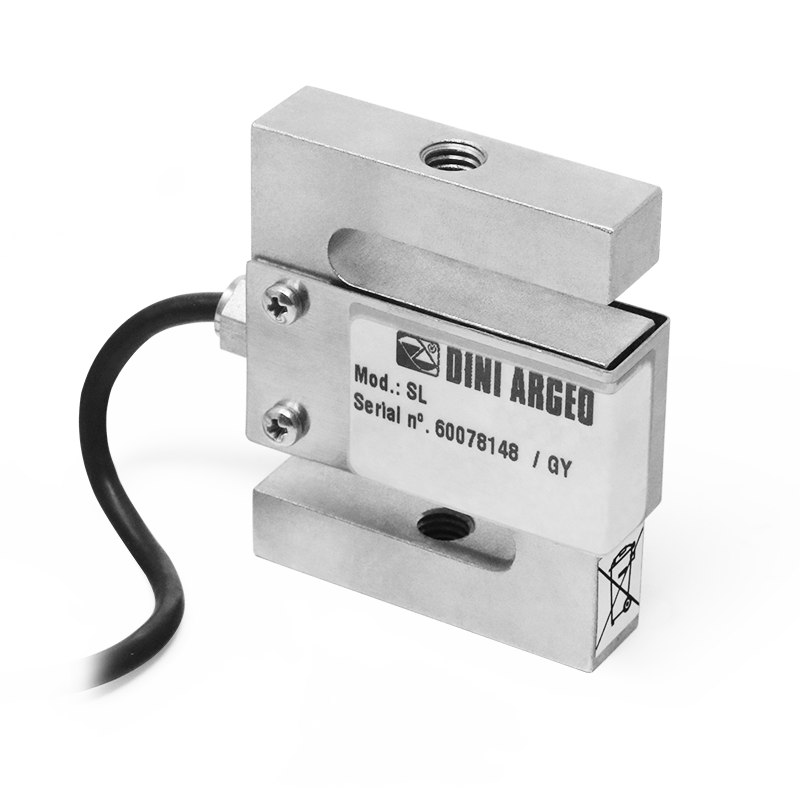

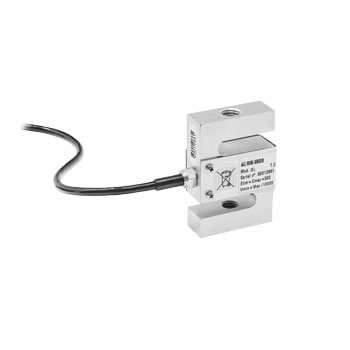

SL 3

CAPACITIES (kg): 15, 30, 50, 100, 300, 500, 1000.

Alloy steel. IP67 protection.


Tension or compression load cells for weighing hoppers, tanks and with other weighing devices.

Non-Repeatability:
0,01% F.S.

Full Scale Output:
2mV/V +/- 10%

Temperature effect on zero:
0,02% /°C

Temperature effect on full scale output:
0,02% /°C

Compensated Temperature Range:
-10°C/+40°C



Operating Temperature Range:
-30°C/+85°C

Creep error after 4 hours:
0,03% F.S.

Maximum tolerated excitation voltage:
15 VDC

Input Resistance:
381 ± 10 Ohm

Output Resistance:
350 ± 3 Ohm

Zero balance:
+/- 2% F.S.

Insulation Resistance:
>5000 MOhm

Safe Overload:
150% F.S.

Ultimate Overload:
300% F.S.

Shielded cable:
4-wire shielded cable, 5m long, 5,5 mm diameter

Wiring Code
Colour
Function
RED
INPUT +
BLACK
INPUT -
GREEN
OUTPUT +
WHITE
OUTPUT -
  --
SHIELD

Code Max
(kg)		 l
(mm)		 w
(mm)		 h
(mm)

a
(mm)

 b
(mm)
SL15 15 51 13 64 10,5 N°2 x M8
SL30 30 51 13 64 10,5 N°2 x M8
SL50 50 51 13 64 10,5 N°2 x M8
SL100 100 51 19 76 13,5 N°2 x M12
SL300 300 51 19 76 13,5 N°2 x M12
SL500 500 51 19 76 13,5 N°2 x M12
SL1000 1.000 54 25,4 76 13,5 N°2 x M12

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|ATEX Load Cells|Hygienic Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
SL15 Tension load cell, C3, Max=15kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult
SL30 Tension load cell, C3, Max=30kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult
SL50 Tension load cell, C3, Max=50kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult
SL100 Tension load cell, C3, Max=100kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult
SL300 Tension load cell, C3, Max=300kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult
SL500 Tension load cell, C3, Max=500kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult
SL1000 Tension load cell, C3, Max=1000kg in steel alloy, IP67 protection rating, 350 Ohm output resistance.

Consult

Options

Mounting kits

Part # Description List Price Cart/Quote
RBJM8 M8 articulated rod-end ball joint. Maximum lifting capacity of 600kg. For STG100 and SL up to 50kg capacity.

Consult
RBJM12 M12 articulated rod-end ball joint. Maximum lifting capacity of 1000kg. For STG500, STG1000 and SL capacity from 100 to 1000kg.

Consult
CLVM8 M8 clevis fitted with pin, for combination with RBJM8. For STG100 and SL capacity up to 50kg.

Consult
CLVM12 M12 clevis fitted with pin, for combination with RBJM12. For STG500, STG1000 and SL capacity from 100 to 1000kg.

Consult

Related Products

RBJ

RBJ Series Mounting Kit in Galvanized Steel for STU/STG/STFU Tension Load Cells

Articulated joints for the correct installation of the tension load cells.

CLV

CLV U Clevis for RBJ Rod-End Ball Joints

Steel clevis for the easy installation of the tension load cells. In combination with the RBJ rod-end ball joints, they allow you the correct alignment of the suspended load.
