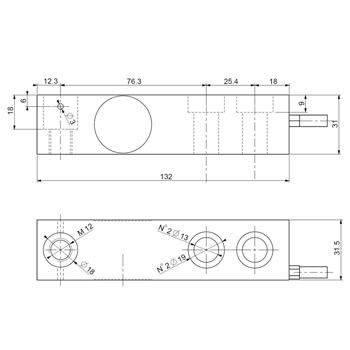

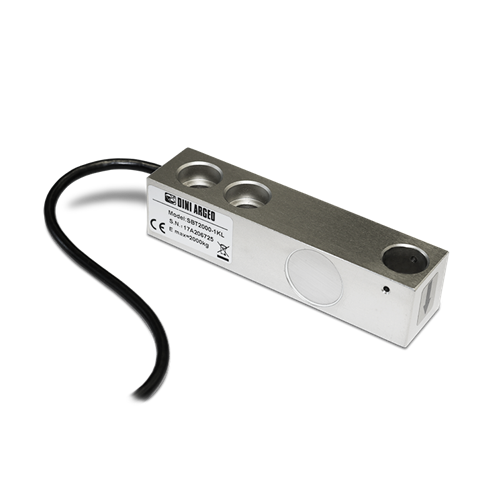

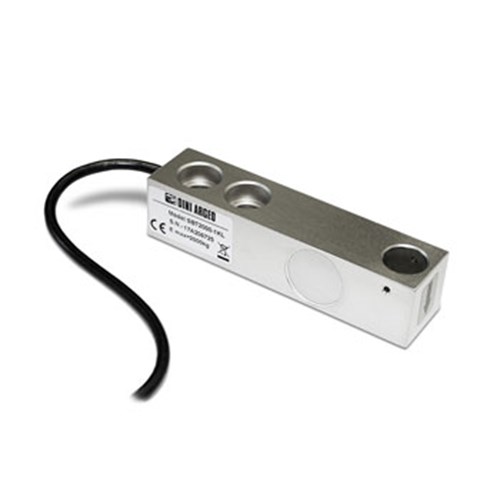

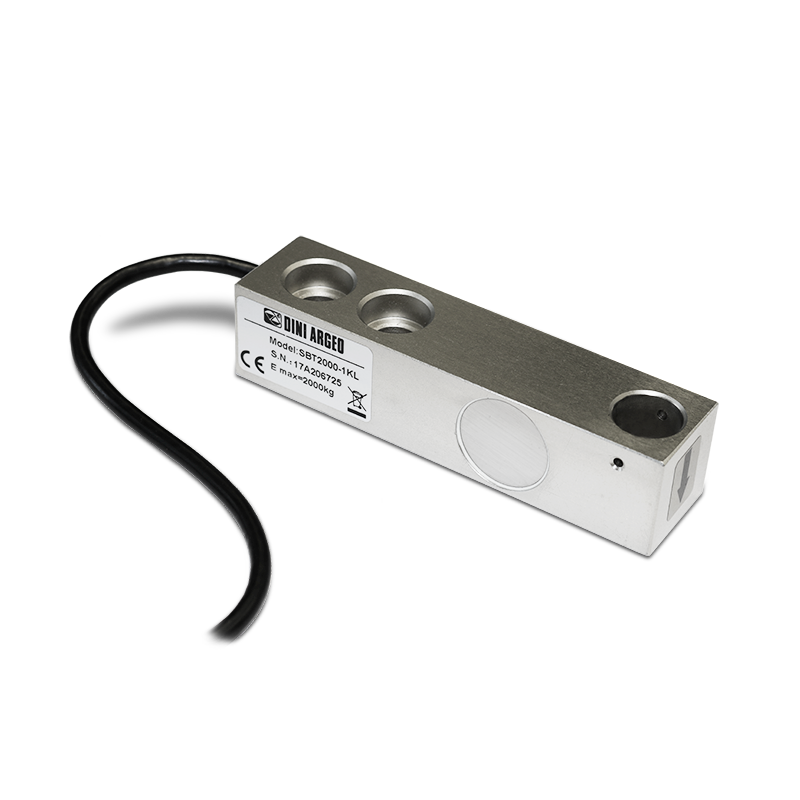

SBT Series Shear Beam Nickel-Plated Load Cells, from 500kg to 2000kg

Minimum load cell verification interval:
Vmin = EMax / 10.000

Maximum number of verification intervals:
nLC = 3000

Combined error:
0,017% of Full Scale Output (F.S.)

Nonlinearity:
± 0.02% FS

Hysteresis:
± 0.02% FS

Repeatability:
± 0.01% FS

Full Scale Output:
2mV/V ± 0.5%

Zero balance:
± 1% FS

Compensated Temperature Range:
-10°C/+50°C.

Operating Temperature Range:
-20°C/+60°C.

Creep error after 30 minutes:
<0,02% F.S.

Maximum tolerated excitation voltage:
15 Vdc

Input Resistance:
380 ± 20 Ohm

Output Resistance:
350 ± 5 Ohm

Insulation Resistance:
>5000 MOhm

Safe Overload:
120% F.S.

Ultimate Overload:
300% F.S.

Shielded cable:
6-wire shielded cable, 3.5m long, 5 mm diameter
