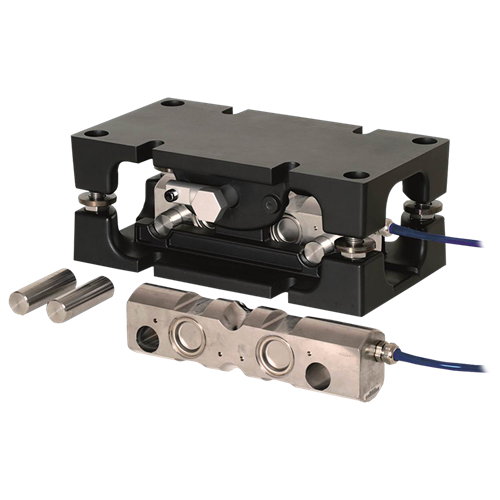

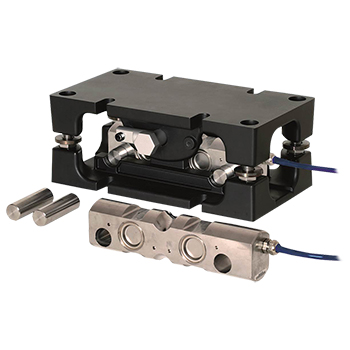

MASTERMOUNT Series: Mounting Kit for VC3500 Load Cells

  • Simple, robust two part casting supplied locked in position (via transit bolts) ready for installation
  • Load cell installation / removal under load without lifting jacks or dummy (false) load cells
  • Major savings on installation time & cost
  • Substantial lift-off protection through mounting accessory, not load cell
  • Allows vessel expansion and contraction
  • Special cam design loading shaft raises and lowers the top plate and vessel
  • Low profile, stable design
  • Resistant to off-axis loading
  • Tough and durable paint finish
  • Minimal difference between the raised and lowered height of 3mm
  • One design covers the range from 2t to 30t
Request More Information

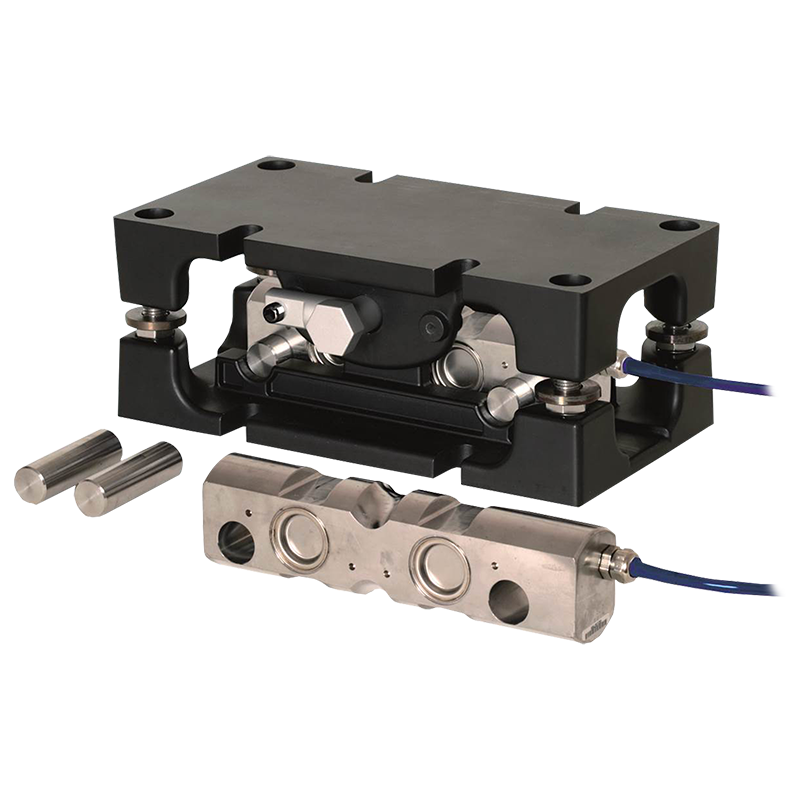

Mastermount (1)

FOR SILO, TANK AND VESSEL WEIGHING

Vessel weighing problems solved simply and cost effectively. The MasterMount® is the latest addition to an innovative range of patented weighing assemblies, which are designed with safety and ease of installation in mind.

The special design also avoids the need to use dummy cells whilst any welding or other work is being undertaken on the vessel. Lift-off protection is provided by the mounting accessory itself, instead of the traditional method of using the load cell for lift-off protection.

Parts

Available Versions

Part # Description List Price Cart/Quote
MASTERMOUNT MASTERMOUNT mounting accessory for VC3500 load cells - standard version.

Consult
