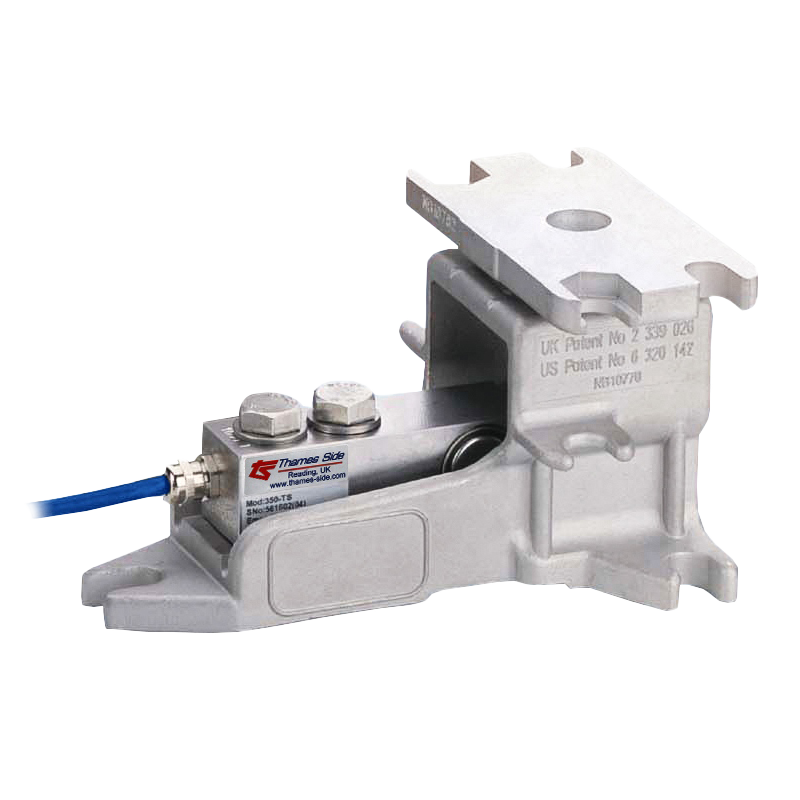

LEVERMOUNT Series: Mounting Kit for T66 and T85 Load Cells

  • Cast, grade 316 stainless steel mount (3 sizes)
  • Simple, 2-part casting using the transit bolts for fixing the load cell to the mount
  • Fast load cell installation/removal without jacking or dummy/false cells, while vessel is full
  • Load cell acts as a lever to raise/lower the vessel under load
  • Substantial clearance below the load cell
  • Stable, shim-free 3 point mounting
  • Version for static applications and dynamic applications (e.g. floor scales)
  • Top plate movement in lateral and rotational axes
  • Configurable for radial, tangential and offset mounting
  • Top plate movement in lateral and rotational axes
  • Substantial anti-lift resistance (more than 50% of the maximum rated load)
  • Safer than traditional mounts. Simple, low cost installation with no specialist tooling required
  • Tolerant of steelwork misalignment without errors in output signal
  • Load cell can easily be removed under load, in situ
  • Allows for large amount of vessel expansion/contraction
Request More Information
Levermount

FOR PROCESS WEIGHING APPLICATIONS

The LeverMount® is a unique, well-established mounting kit that makes installation much simpler, safer and more cost-effective than traditional assemblies.

Its innovative design allows for fast load cell installation without any jacking tools or dummy (false) load cells – even with a loaded tank/hopper. It is available in 3 sizes, with reference to the load cell capacity: LeverMount® Lite (5-200kg), LeverMount® 300-2500kg and LeverMount® 3000-5000kg.

Parts

Available Versions

Part # Description List Price Cart/Quote
LEVERMOUNT-LITE-SC LEVERMOUNT mounting accessory for T66 load cells - special self-centering version SC.

Consult
LEVERMOUNT-2.5T-SC LEVERMOUNT mounting accessory for T85 load cells up to 2.500kg - special self-centering version SC.

Consult
LEVERMOUNT-5T LEVERMOUNT mounting accessory for T85 load cells from 3.000 to 5.000kg - standard version.

Consult
