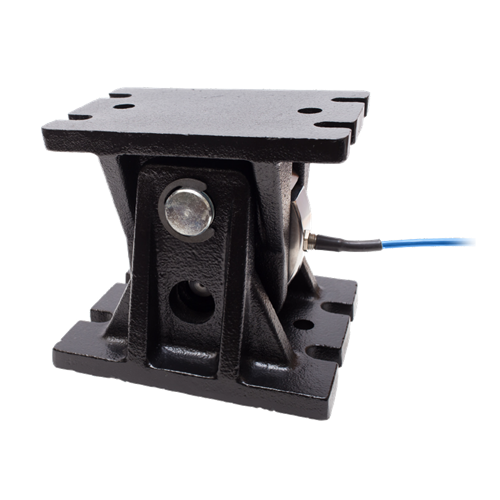

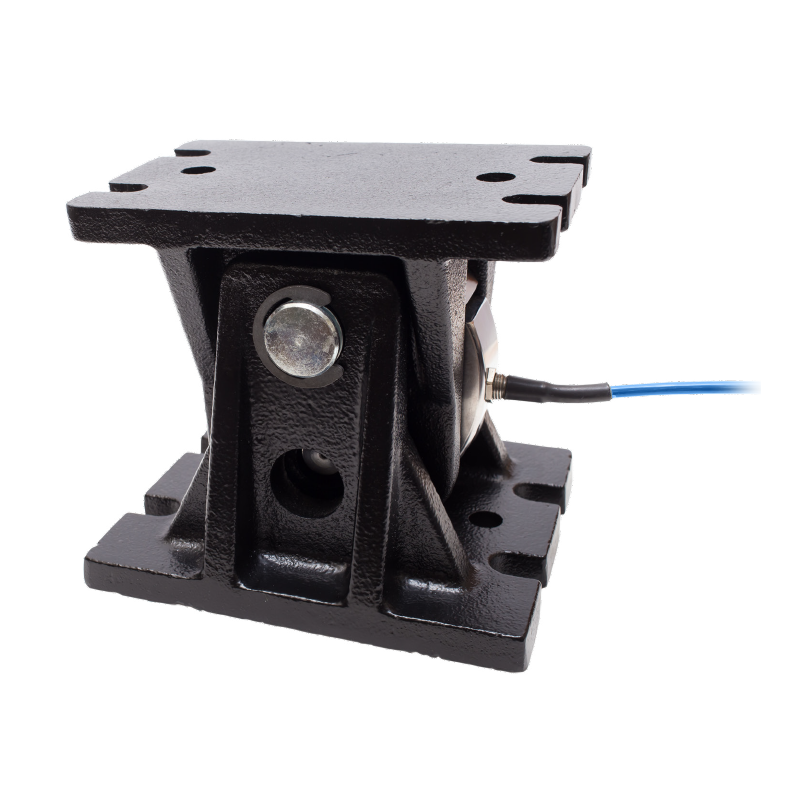

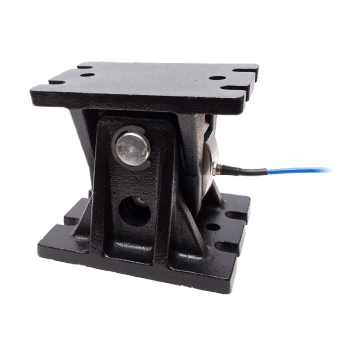

LA95 Series: Mounting Kit for T95 Load Cells

FOR HIGH-VIBRATION APPLICATIONS

The LA95 pendulum mounting kit is the ideal assembly accessory for weighing applications with significant movement present, including tanks with mixers or agitators, catalyst vessels, axle weighers and weigh-in-motion (WIM) systems.

• Available in painted alloy steel or stainless steel material, it is robust and suitable for a range of different applications.

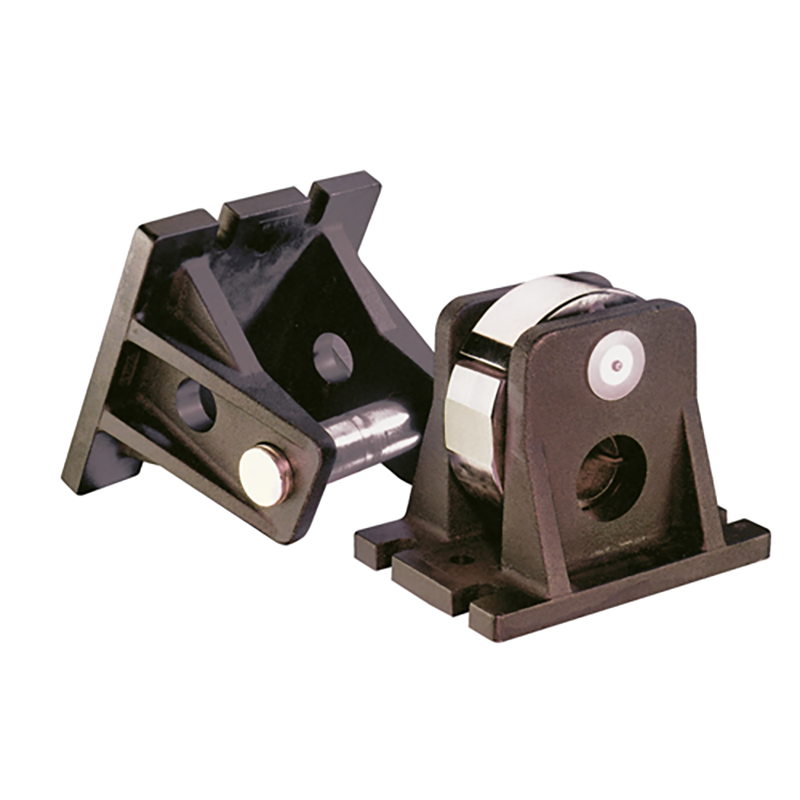

• Although the weighing assembly is loaded in compression, the load cell is mounted in a ‘pendulum’ and operated in tension. Therefore the direction of load is always directed through the central axis of the load cell, even when the module is subjected to significant movement or misalignment – maintaining high weighing accuracy at all times.
