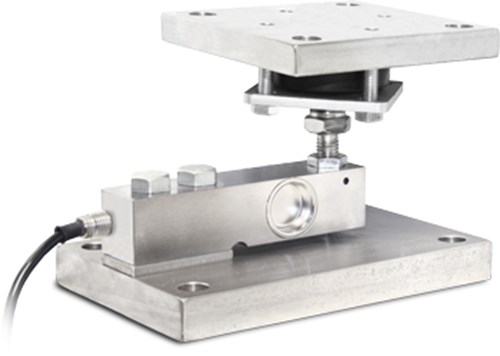

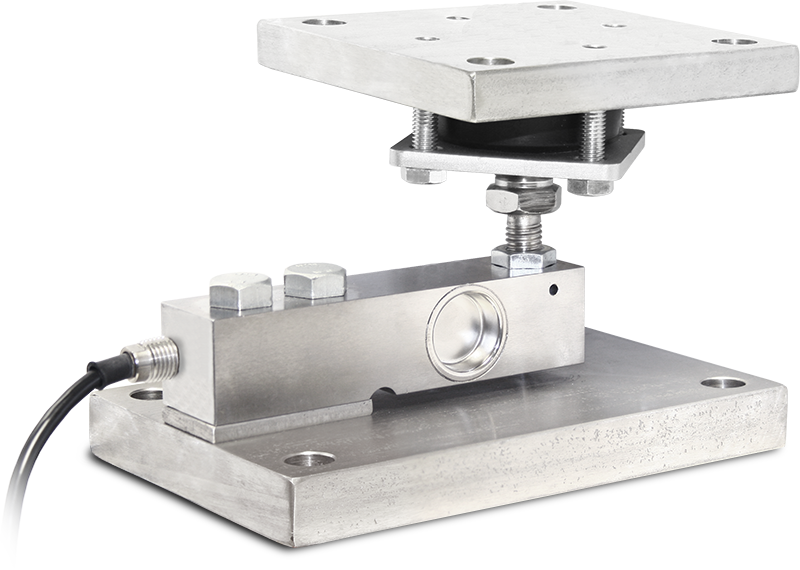

KSBN Series Galvanized Steel Kits, for SBT/SBK/SBX Shear Beam Load Cells
- Manufactured in galvanized steel
- Easy and fast assembly, easy to install
- Upper plate with oscillating spherical joint for excellent measuring accuracy
- Height adjustment for correct leveling
- Mechanical compensation of thermal swelling and transversal forces
- Guarantees the maximum precision of the load cell
Mounting kits for shear beam load cells SBT/SBK/SBX series up to 2500 kg, suitable for hoppers, tanks, platforms, etc.
Advantages:
- Structure in galvanized steel.
- Easy and fast assembly.
- Upper plate with spherical joint for excellent measuring accuracy.
- Height adjustment for a correct leveling.

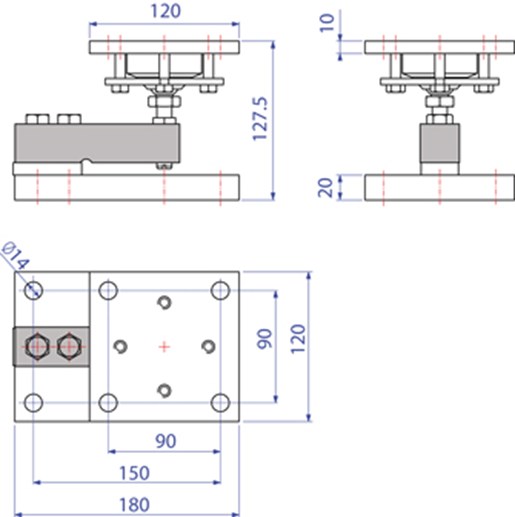

KSBN Dimensions (mm)
Resources/Downloads
Application Stories / Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|ATEX Load Cells|Hygienic Load Cells | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
KSBN2 | Galvanized steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg. |
Consult |
Options
Stay Rod
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
LNK2635 | Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can’t be ATEX-certified. |
Consult |
|
|
LNKST | Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can’t be ATEX-certified. |
Consult |
