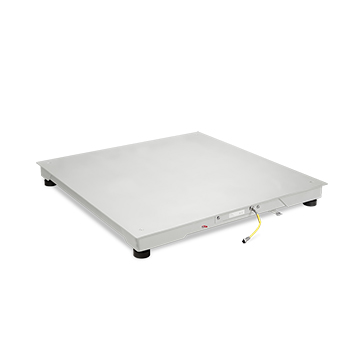

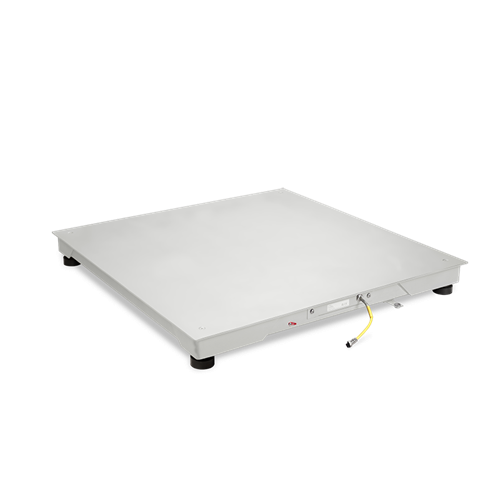

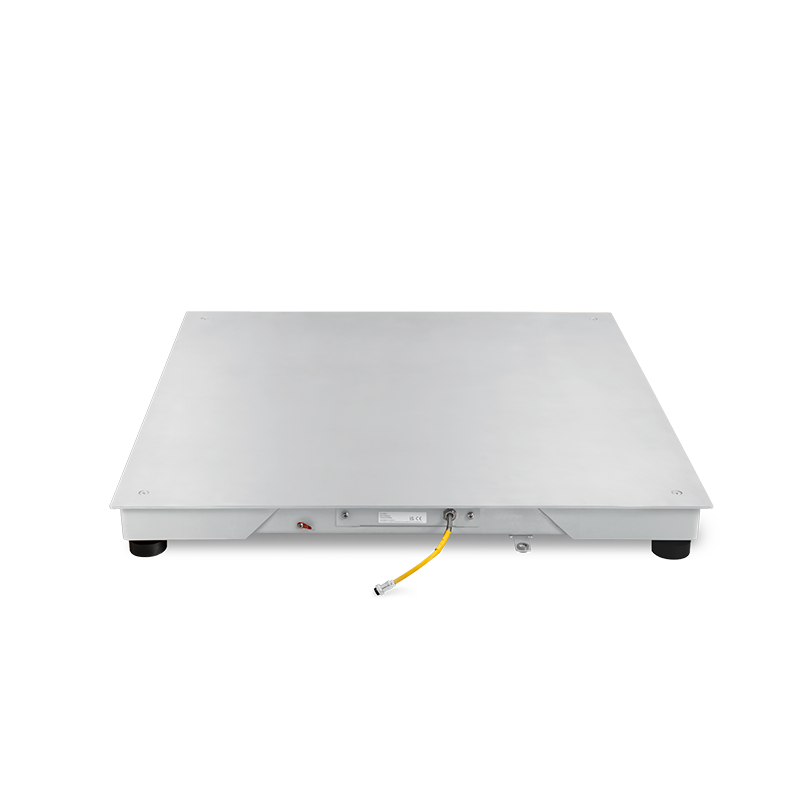

FLI Series Four-cell Stainless Steel Platform
- Functioning with 4 shear-beam 350 Ohm nickel-plated steel load cells, approved according to OIML R60 C3 standards (3000 divisions), IP67 protection degree.
- Monobloc structure with stainless steel tubular.
- Adjustable resting feet and level.
- Fixed sheet stainless steel load surface.
- Up to 15 Vdc power supply.

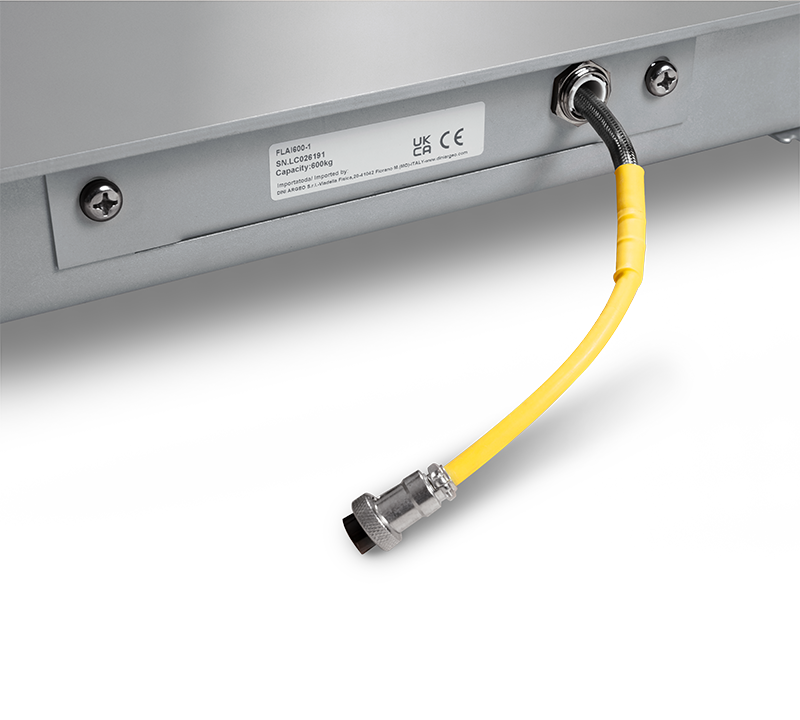

- Hermetic junction box with IP67 protection rating, IP67 wiring with 3 m shielded cable complete with female connector.
Monoblock electronic platform in stainless steel suitable for all types of industrial and commercial weighing applications. The standard version includes approved load cells.
Specifications
|
Accessories:
|
Options Only Available at Time of Order:
|
Available Versions
Code |
l x w x h (mm) |
Nr. of cells | Max (kg) |
d (g) |
 (g)* |
2R (g)* |
|---|---|---|---|---|---|---|
| FLAI600-1 | 1000x1000x120 | 4x1000kg | 600 | 200 | 200 | -- |
| FLAI1500-1 | 1000x1000x120 | 4x1000kg | 600/1500 | 200/500 | 500 | 200/500 |
| FLMI600-1 | 1000x1250X120 | 4x1000kg | 600 | 200 | 200 | -- |
| FLMI1500-1 | 1000x1250X120 | 4x1000kg | 600/1500 | 200/500 | 500 | 200/500 |
| FLBI600-1 | 1250x1250X120 | 4x1000kg | 600 | 200 | 200 | -- |
| FLBI1500-1 | 1250x1250x120 | 4x1000kg | 600/1500 | 200/500 | 500 | 200/500 |
| FLDI1500-1 | 1250x1500x120 | 4x2000kg | 1500 | 500 | 500 | -- |
| FLDI3000-1 | 1250x1500x120 | 4x2000kg | 1500/3000 | 500/1000 | 1000 | 500/1000 |
| FLEI1500-1 | 1500x1500x120 | 4x2000kg | 1500 | 500 | 500 | -- |
| FLEI3000-1 | 1500x1500x120 | 4x2000kg | 1500/3000 | 500/1000 | 1000 | 500/1000 |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
Connector Pinout
Parts
Available Versions
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
FLAI600-1 | Platform with 4 load cells, 600 kg capacity, 200 g division, stainless steel structure and loading surface. Dimensions: 1000x1000 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLAI1500-1 | Platform with 4 load cells, 600/1500 kg capacity, 200/500 g division, stainless steel structure and loading surface. Dimensions: 1000x1000 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLMI600-1 | Platform with 4 load cells, 600 kg capacity, 200 g division, stainless steel structure and loading surface. Dimensions: 1000x1250 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLMI1500-1 | Platform with 4 load cells, 600/1500 kg capacity, 200/500 g division, stainless steel structure and loading surface. Dimensions: 1000x1250 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLBI600-1 | Platform with 4 load cells, 600 kg capacity, 200 g division, stainless steel structure and loading surface. Dimensions: 1250x1250 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLBI1500-1 | Platform with 4 load cells, 600/1500 kg capacity, 200/500 g division, stainless steel structure and loading surface. Dimensions: 1250x1250 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLDI1500-1 | Platform with 4 load cells, 1500 kg capacity, 500 g division, stainless steel structure and loading surface. Dimensions: 1250x1500 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLDI3000-1 | Platform with 4 load cells, 1500/3000 kg capacity, 500/1000 g division, stainless steel structure and loading surface. Dimensions: 1250x1500 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLEI1500-1 | Platform with 4 load cells, 1500 kg capacity, 500 g division, stainless steel structure and loading surface. Dimensions: 1500x1500 mm; height: 120 mm. 3 m shielded cable. |
Consult |
|
|
|
FLEI3000-1 | Platform with 4 load cells, 1500/3000 kg capacity, 500/1000 g division, stainless steel structure and loading surface. Dimensions: 1500x1500 mm; height: 120 mm. 3 m shielded cable. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Direct connection (without connectors) from platform to indicator and calibration service. € NET.NOTE(1): delivered platform not connected: connection of the platform to the weight indicator to be carried out on site by qualified personnel. |
Consult |
Legal for trade approval, class III or IIII, with Dini Argeo weight indicator (only at time of order)
Floor Columns
Frame for Flush Floor Installation
Additional On / Off ramp

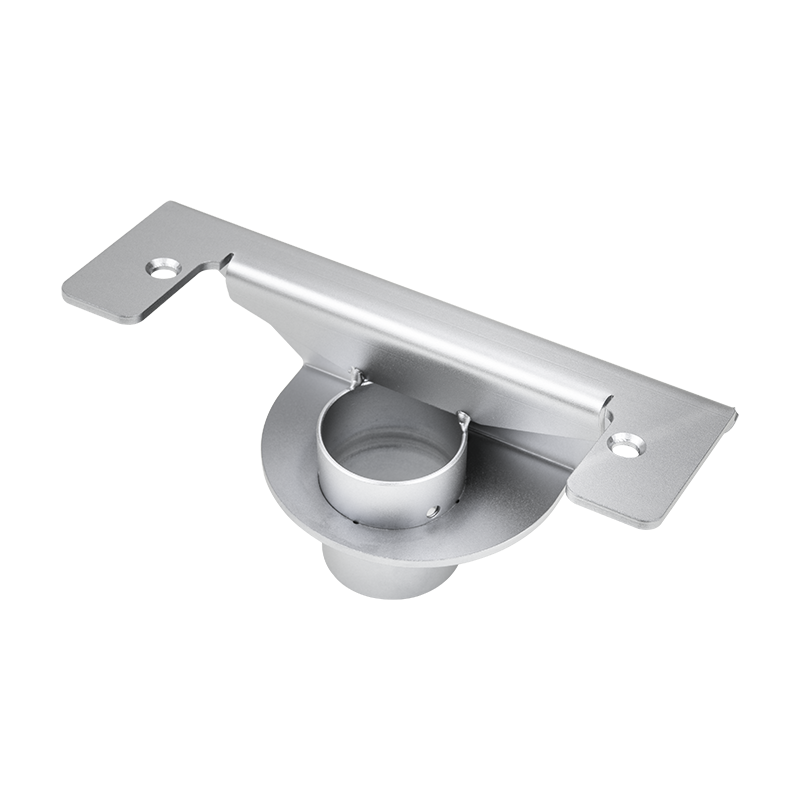

Plates for fixing on the floor
Calibration Service with Dini Argeo Weight Indicator (only at time of order)
Related Products

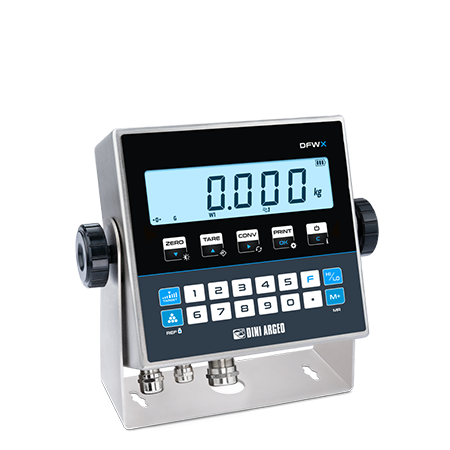

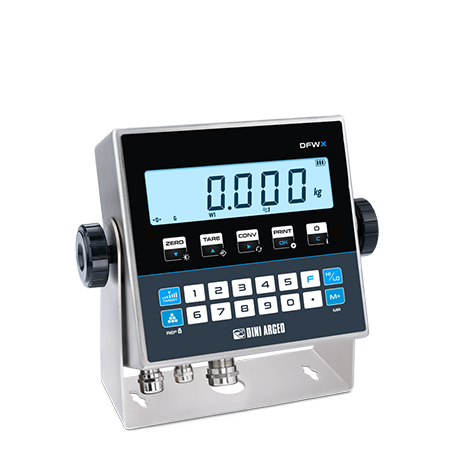

DFWX: IP68 and IP69K Multifunction Weight Indicator
High performance, compact and robust IP68/IP69K stainless steel weight indicator with interactive backlit RGB display. The numerous connectivity options make it a versatile weight gauge suitable for advanced industrial applications.

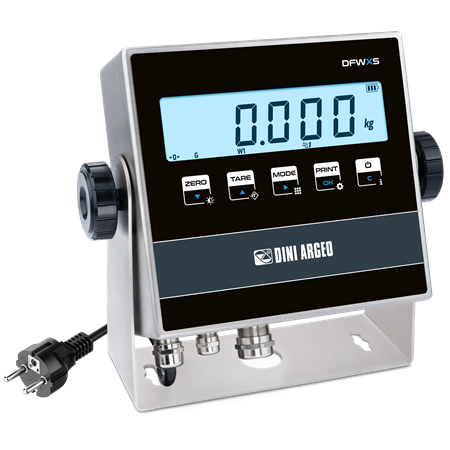

DFWXS: IP68 and 69K Multifunction Weight Indicator With 5-Key “SMART” Keyboard
