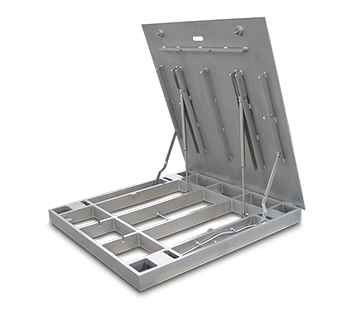

ETI HYGIENX® Series Four-Cell Stainless Steel Platform

Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds.
Meets HACCP requirements.
Manual drop-in-place safety bars.
Four stainless steel, hermetically sealed, IP69K shear beam load cells.
IP68/IP69K JB4QIP69K junction box included.
Four adjustable stainless steel support feet.

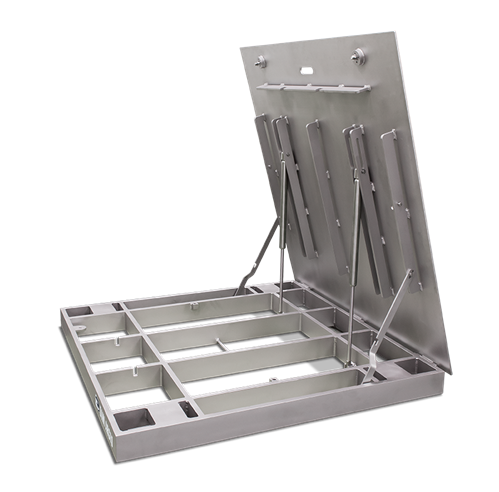

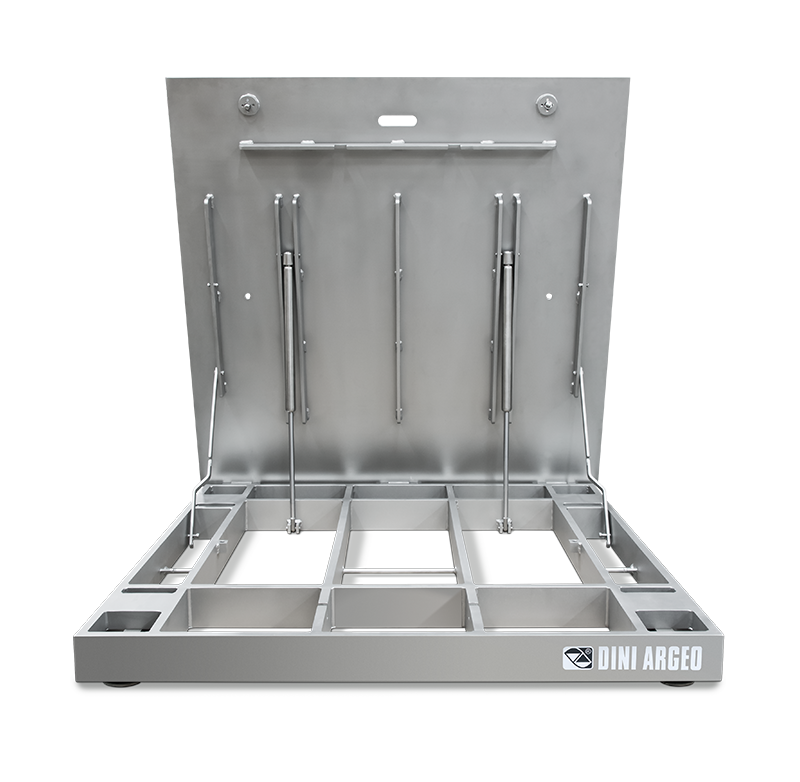

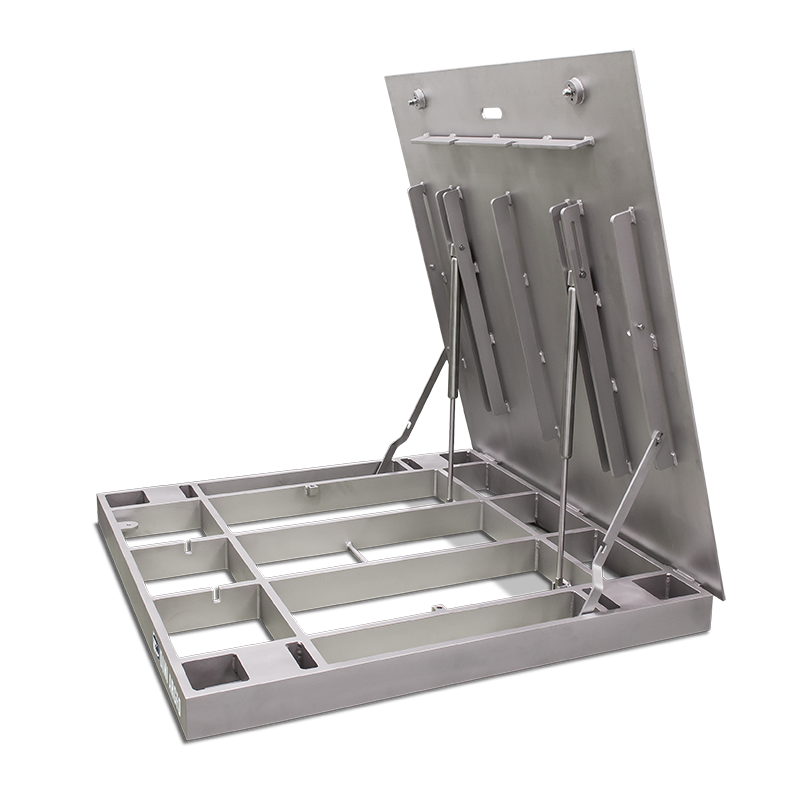

Top plate opens 75 degrees without the use of tools.

The ETI HYGIENX® washdown floor scale is designed for strict sanitary environments.

The platform base is made of solid stainless steel AISI 304 vertical plates-providing superior protection against bacteria growth. The top plate opens to 75 degrees, allowing the entire scale interior to be washed and inspected.

The ETI HYGIENX® is ideal for food processing, pharmaceutical and chemical applications.

Specifications

Accessories:

Column support for weight indicator.
Frames for flush floor installation.
Access ramps.

Options Only Available at Time of Order:

Calibration with CE-M single or double range approval.
High resolution models for internal factory use.

Available Versions

Code	l x w x h (mm)	Nr. of cells	Max (kg)	d (g)	(g)*	2R (g)*	d HR (g)*
ETBI30-HGX	1250x1250x90	4x2000kg	3000	500	1000	500-1000	200
ETBI50-HGX	1250x1250x90	4x3000kg	5000	1000	2000	1000-2000	500
ETEI30-HGX	1500x1500x115	4x2000kg	3000	500	1000	500-1000	200
ETEI50-HGX	1500x1500x115	4x3000kg	5000	1000	2000	1000-2000	500

(g)* : Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Connector Pinout

Connector Pinout ES ESI ET ETI

Resources/Downloads

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Bench and Floor Weighing Platforms			Download	Email	Compact Scales\|Floor Scales\|Modular Bench Scales\|Hygienic Scales\|ATEX Scales\|ATEX Platforms\|Four Cell Platforms\|Single Cell Platforms\|Carts\|Four Cell Low Profile Platform\|Platforms, Indicators and Accessories\|All Weighing Platforms\|Platforms Accessories

Parts

Available Versions

Part #	Description	List Price	Cart/Quote
ETBI30-HGX	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETBI50-HGX	4 C6 cell platform, Max=1200kg, d=200g, loading surface 1250x1250mm. Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI30-HGX	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1500x1500mm Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View
ETEI50-HGX	4 C6 cell platform, Max=3000kg, d=500g, loading surface 1500x1500mm Stainless steel structure and loading plate. 5 m shielded cable.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart/Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Direct connection (without connectors) from platform to indicator and calibration service. € NET.NOTE(1): delivered platform not connected: connection of the platform to the weight indicator to be carried out on site by qualified personnel.	Consult	View

Legal for trade approval, class III or IIII, with Dini Argeo weight indicator (only at time of order)

Part #	Description	List Price	Cart/Quote
ECEM	Single range 3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEM2-C6	Multi-range 6000+6000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.	Consult	View

Frame for Flush Floor Installation

	Part #	Description	List Price	Cart/Quote
	ETBTFI-HGX	Stainless steel frame for flush floor installation for ETBI-HGX platforms.	Consult	View
	ETETFI-HGX	Stainless steel frame for flush floor installation for ETEI-HGX platforms.	Consult	View

High Resolution (d HR) (only at time of order)

Part #	Description	List Price	Cart/Quote
ETHR	High resolution model for internal factory use.	Consult	View

Floor Columns

Part #	Description	List Price	Cart/Quote
CLI-900	AISI 304 stainless steel column, h=900mm, Ø 38mm. 450x450mm stainless steel base. To be combined with DFWXCL or 3590CL.	Consult	View
3590CL	Support bracket for DFW, DFWL, DFWLI, 3590E, 3590EGT, TRI, DGT20, DGTPK series indicators.	Consult	View
DFWXCL	Support bracket for DFWX series indicators.	Consult	View

Additional On / Off ramp

Part #	Description	List Price	Cart/Quote
ETBRI-HGX	Stainless steel ramp, 1250x1250mm, for ETB-HGX platforms.	Consult	View
ETERI-HGX	Stainless steel ramp, 1500x1500mm, for ETE-HGX platforms.	Consult	View

Plates for fixing on the floor

	Part #	Description	List Price	Cart/Quote
	ETPFI-1	Kit of 4 plates for fixing on the floor, in stainless steel. For platforms ETG, ETH, ETL, ETA, ETM, ETB, ETD, ETE, ETF, LPI, FL and FLI series.	Consult	View

Calibration Service with Dini Argeo Weight Indicator (only at time of order)

	Part #	Description	List Price	Cart/Quote
	CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
	CD3	ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights.	Consult	View

Related Products

DFWX HYGIENX®: IP68 and 69K Multifunction Weight Indicator for Hygienic Environments

AISI 316 stainless steel weight indicator with IP68 and IP69K protection, ideal for environments with high hygiene standards, designed to simplify cleaning and sanitization. Compact and rugged, featuring an interactive backlit display. Multiple connectivity options make it a versatile weight indicator suitable for advanced industrial applications.

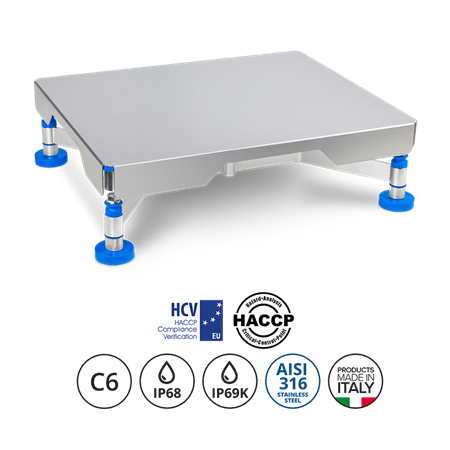

New TE HYGIENX® Series Single Cell Platforms

Made entirely of AISI 316 stainless steel in Italy, the platform is entirely washable to prevent the build-up of bacteria in the most critical spots.

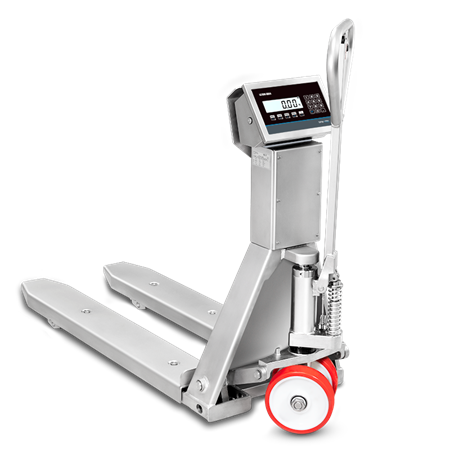

TPWI HYGIENX® Stainless Steel Pallet Truck Scale
