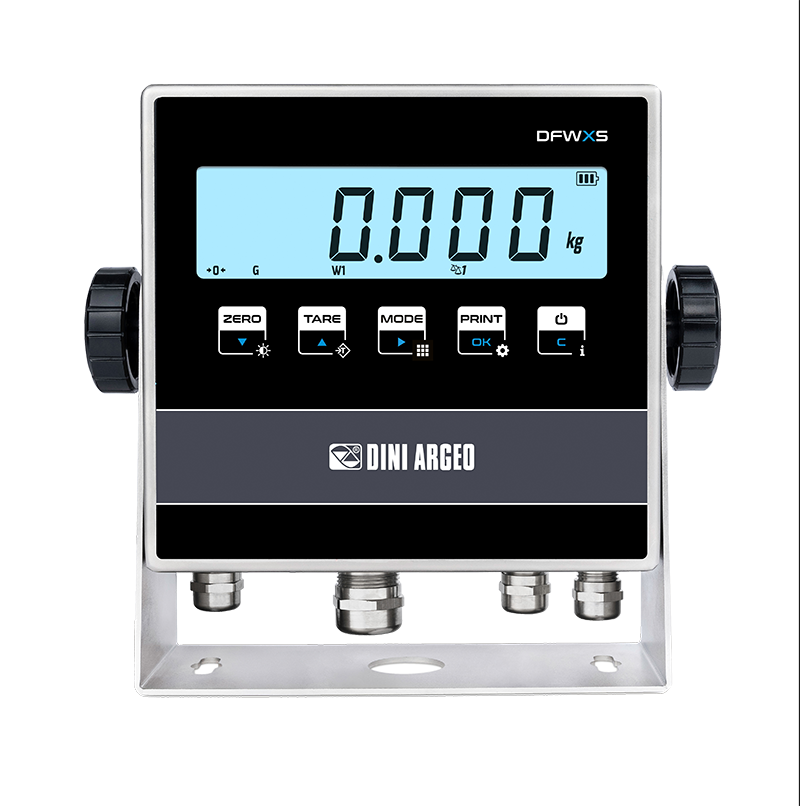

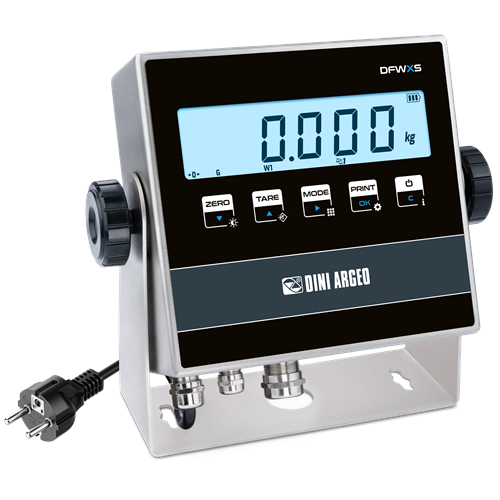

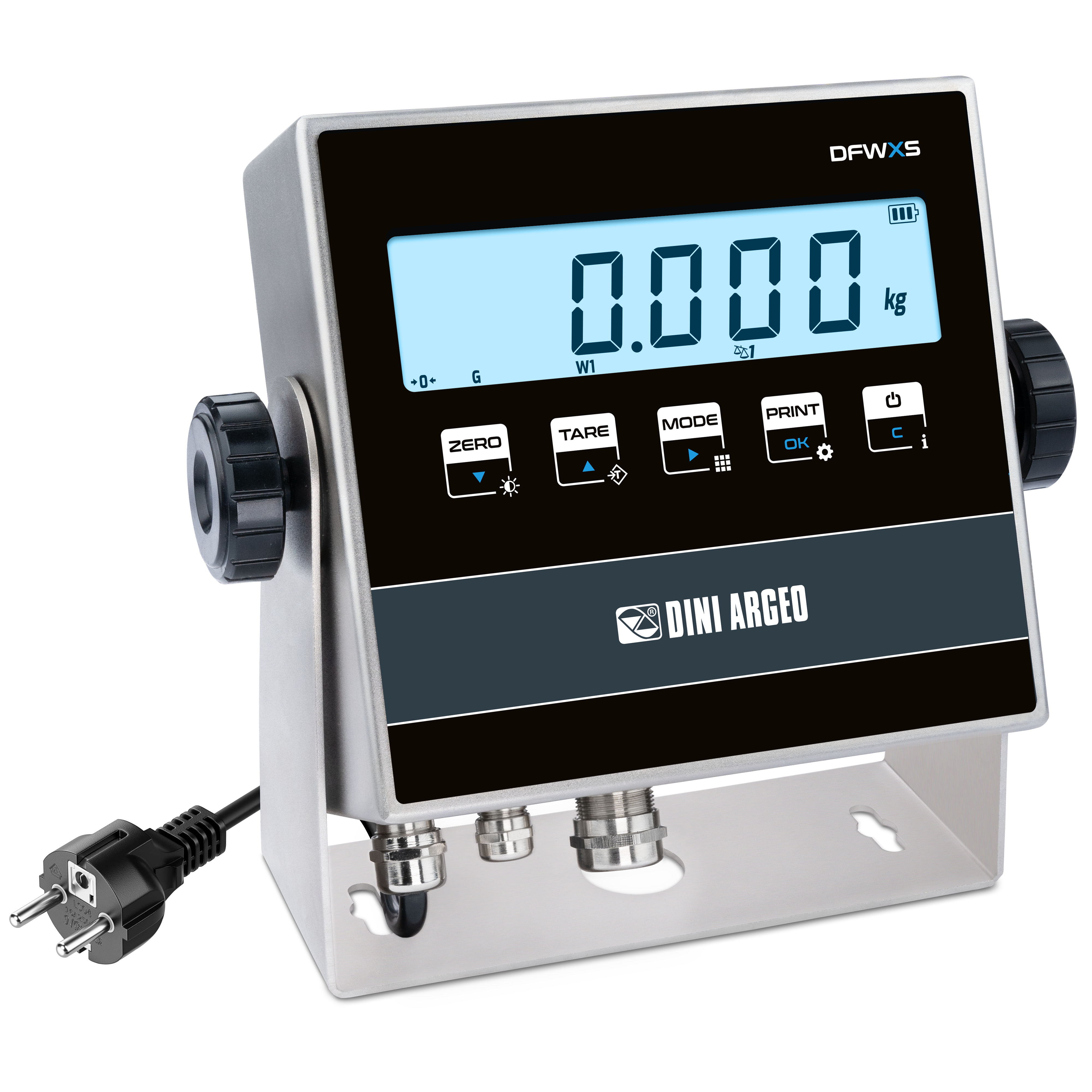

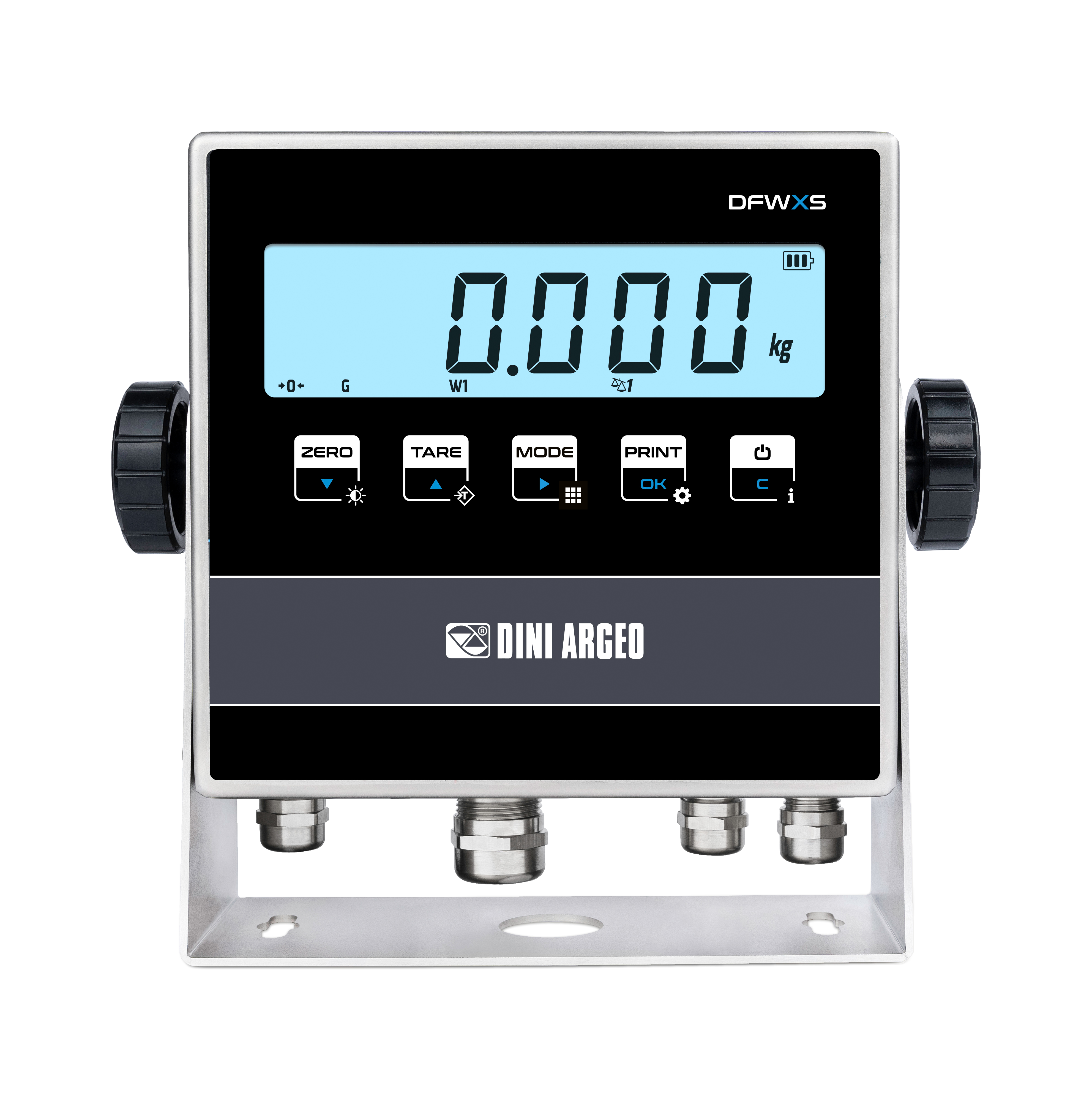

Versatile and compact IP68 and IP69K stainless steel weight indicator with interactive backlit RGB display. Multiple connectivity options make it ideal for simple applications and scales in industrial environments to weigh and convert weight.
Internal rechargeable battery, with approximately 100h battery life and internal 110/230VAC power supply, with 1.5m power cord and standard EU plug (UK, AUS, US plug optional).
AVAILABLE LANGUAGES IN PRINT:
IT, EN, FR, DE, ES, PT, PL, RO, EL* * For Chinese and Greek, printer/labeler programming is required (CODEPG, only when ordering)

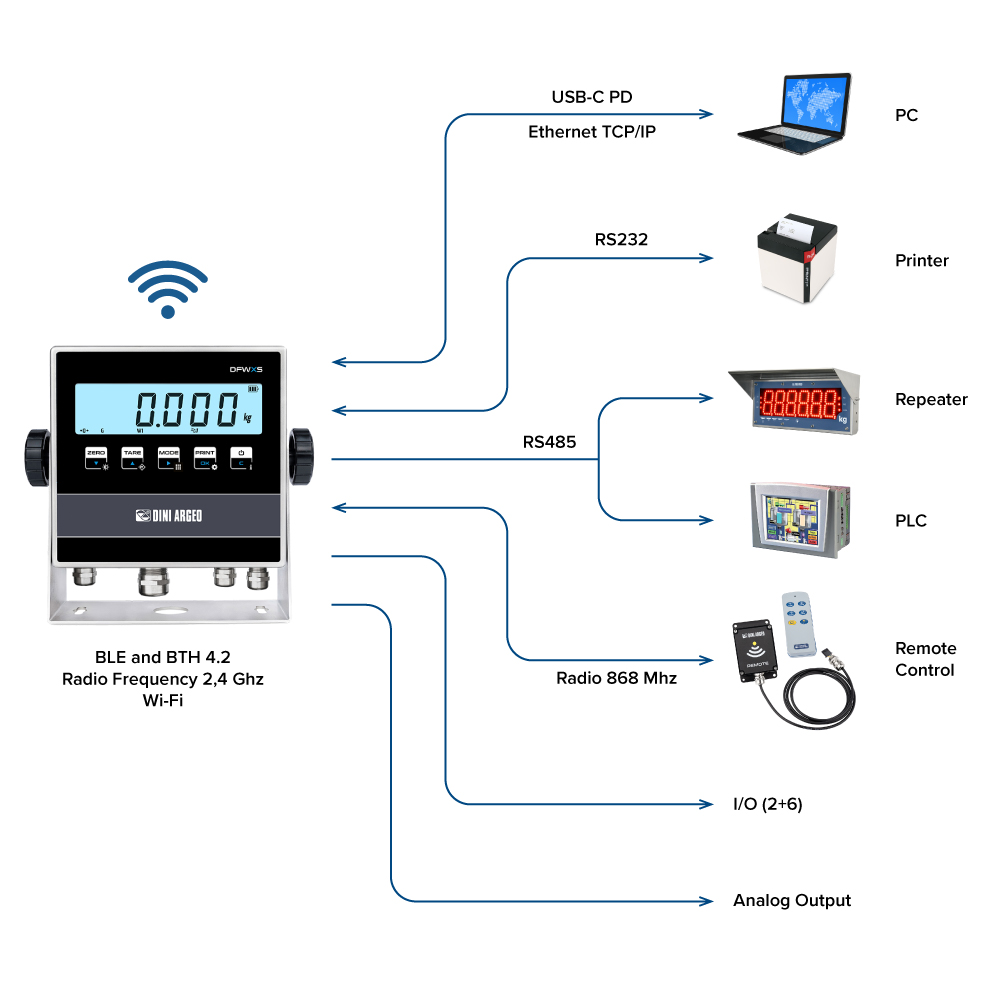

COMMUNICATION PORTS – INPUTS\OUTPUTS:
RS232 on RJ45/screw terminals for connection to PC/printers Dini Argeo
RS232 on AMP connector, with CTS, for connection to Dini Argeo printers
RS485 on screw terminals for connection to PC/PLC, with Modbus RTU or ASCII protocol
USB-C for connection to PC
Optionals:
Ethernet TCP\IP port (model DFWX-ETH). (Includes Modbus-TCP protocol)
WiFi Port (Model DFWXB-WIFI)
RadioFrequency 2.4GHz
BTH 4.2 o BLE 5.0
Analog output 4...20mA o 0...10V
Expansion board with 2 IN and 6 OUT digital Please see the technical manual for more technical information.
DFWX
DFWX-ETH
Alibi memory
Opt
Opt
RS232
✓
✓
RS232
✓
✓
RS485
✓
✓
Type-C USB
✓
✓
Radio RF 2,4GHz
Opt
Opt
BTH/BLE
Opt
Opt
Ethernet TCP/IP
Opt
Opt
WiFi
Opt
Opt
Analog output
Opt
Opt
Digital I/O
Opt
Opt
Radio Frequency Remote Control
Opt (Ext)
Opt (Ext)
✓ = standard Opt = optional, integrated Opt (Ext) = Optional external box, occupies one RS232 serial port
NEW MULTIFUNCTIONAL PROGRAM:
The multifunction weighing program offers:
Weight conversion in lb, Newton or with freely programmable conversion factor
Hold
Peak (in kg or Newton)
Animal weighing
Piece counting
Pieces control
Weight control (net, gross, take-away, on zero)
Percentage weighing
Totalization in loading or unloading
Manual formulation
Automatic Tare function
The combination of multiple functioning modes, coupled with programming flexibility, make the DFWX the new benchmark for configurable weight indicators.
Multifunction weight indicator with 110/230VAC power supply and UK Plug, with built-in rechargeable NiMh battery. Stainless steel case. 25mm RGB display.
Multifunction weight indicator with 110/230VAC power supply and AUS Plug, with built-in rechargeable NiMh battery. Stainless steel case. 25mm RGB display.
Multifunction weight indicator with 110/230VAC power supply and US Plug, with built-in rechargeable NiMh battery. Stainless steel case. 25mm RGB display.
External module for 2.4GHz radio frequency communication. Equipped with 3m cable. Designed for IP66 rating. Maximum operating distance up to 60 m INDOOR, and up to 80 m OUTDOOR. To be connected to an RS232 port. Includes PG9 cable gland for indicator.
External module for 2.4GHz radio frequency communication, with USB type A port, for PC. Equipped with 1 m cable. Designed for IP66 rating.
Maximum operating distance up to 60 m INDOOR, and up to 80 m OUTDOOR.
External module for BLE 5.0 communication. Equipped with 3 m cable. Designed for IP66 rating. Maximum operating distance up to 30 m INDOOR, and up to 100 m OUTDOOR. To be connected via RS232. A PG9 cable gland for the indicator is included.
Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.
4-core twisted shielded cable (2x2x0.34 mm²), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).
Shielded cable 10x0.25 mm² (suitable for Ex zones). PVC sheathing, 7.5mm diameter. Operating temperature: -25 / +70 °C (fixed installation). Minimum bending radius >/= 8 x O.D. €/m. Maximum length that can be ordered: 100 m or multiples.
4-core twisted shielded cable (2x2x0.34 mm²), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).
External module for reading and compensation of weighing system inclination, approved for use in third-party relationship, to be combined with DFWX series indicators. Connection in 232 (485 on request). Cable supplied as standard, length 3m.
(S3) External module for reading and compensation of weighing system inclination, approved for use in third-party relationship, to be combined with DFWX series indicators. RS485 connectable. Cable supplied as standard, length 3m.
Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll Ø 127 mm and width up to 112 mm.
Label roll and ribbon not included.
Thermal transfer or direct termal labeller. Peel-off kit in option. Maximum print size 25400 x 108 mm. Maximum roll Ø 203 mm and width up to 118 mm.
Label roll and ribbon not included.
Stainless Steel column, length 350mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL). NOTE: -2 column models do not include the indicator holder bracket.
Stainless Steel column, length 500mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL).
Stainless Steel column, length 700mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded (to be combined with DFWXCL or 3590CL).
(S1) Radio frequency 868MHz 6 keys remote control and Radio frequency receiver box, for external installation. Fitted with 3m cable. To be connected over a RS232 port. Includes an extra PG9 cable gland for installation.
USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ11 connector. For the connection to weight indicators with IP65, IP68 and IP69K protection system.
