DFWX: IP68/IP69K Multifunction Weight Indicator

AISI 304 stainless steel case
IP68 and 69k protection rating
6-digit 25mm LCD display with RGB backlighting (7 selectable colors)
Configurable light intensity
21-key numeric-functional keypad
Swivel-tilt support bracket with mounting holes.
Compact size: 170 x 200 x 70 mm.
Configurable power-saving functions, to minimize power consumption

High performance, compact and robust IP68/IP69K stainless steel weight indicator with interactive backlit RGB display. The numerous connectivity options make it a versatile weight gauge suitable for advanced industrial applications.

DFWX Specifications

INPUT:

For DFWX and DFWX-ETH models

Internal power supply 110/240VAC
1m power cord and EU, UK, AUS, US plug depending on model (CH optional)

For Model DFWXB - DFWXB-WIFI

- Internal Lithium battery (duration of up to 100h depending on the model and mode of use)
- Internal power supply 230VAC\12VDC
- 1m power cord and EU, UK, AUS, US plug depending on model (CH optional)

AVAILABLE LANGUAGES IN PRINT:

IT, EN, FR, DE, ES, PT, PL, RO, EL*
* For Chinese and Greek, printer/labeler programming is required (CODEPG, only when ordering)

COMMUNICATION PORTS – INPUTS\OUTPUTS:

RS232 on screw terminals for connection to PC/Dini Argeo printers
RS232 on AMP connector, with CTS, for connection to Dini Argeo printer
RS485 on screw terminals for connection to PC/PLC, with Modbus RTU or ASCII protocol
USB-C for connection to PC
Ethernet TCP/IP port (models DFWX-ETH and DFWXB-WIFI). (Includes Modbus-TCP protocol)
WiFi Port (Model DFWXB-WIFI)

Optional:
RadioFrequency 2.4GHz
BLE 5.0
Analog output
Expansion board with 2 IN and 6 OUT digital

Consult the technical manual for more technical information.

The communication ports are independent of each other and can all work together at the same time.

	DFWX	DFWX-ETH	DFWXB	DFWXB-WIFI
Alibi memory	Opt	✓	Opt	✓
RS232	✓	✓	✓	✓
RS232	✓	✓	✓	✓
RS485	✓	✓	✓	✓
Type-C USB	✓	✓	✓	✓
Radio RF 2,4GHz	Opt	Opt (Ext)	Opt	Opt (Ext)
BLE 5.0	Opt	Opt (Ext)	Opt	Opt (Ext)
Ethernet TCP\IP	-	✓	-	✓
WiFi	-	-	-	✓
Analog output	Opt	Opt	-	-
Digital I\O	Opt	Opt	Opt	Opt
Radio Frequency Remote Control	Opt (Ext)	Opt (Ext)	Opt (Ext)	Opt (Ext)

✓ = standard
Opt = optional, integrated
Opt (Ext) = Optional external box, occupies one RS232 serial port

NEW MULTIFUNCTIONAL PROGRAM:

DFWX's new weighing program revolutionizes the concept of multifunction, allowing multiple functions to be used simultaneously:

Conversion of weight to lb, N or customized
Counting pieces in loading or unloading
Piece-weight control in loading or unloading, with thresholds programmable from keypad or via communication protocol
Piece-weight totalization
Automatic Tare function

The combination of multiple modes of operation, combined with programming flexibility, make the DFWX the new benchmark for configurable weight indicators

METROLOGICAL CERTIFICATIONS:

EU Type Examination Certificate (45501:2015)

Resources/Downloads

Application Stories / Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

EU Versions

Part #	Description	List Price	Cart/Quote
DFWX	Multifunction weight indicator with 110/240VAC power supply and EU Plug. Stainless steel case. 25mm RGB display. Provision for analog and radio frequency or Bluetooth output options.	Consult	View
DFWXB	Multifunction weight indicator with 110/240VAC power supply and EU Plug, with built-in rechargeable lithium battery. Stainless steel case. 25mm RGB display. Provision for analog and radio frequency or Bluetooth output options.	Consult	View
DFWX-ETH	Multifunction weight indicator with TCP/IP Ethernet port and Alibi Memory. 110/240VAC power supply and EU plug. Stainless steel case. 25mm RGB display.	Consult	View
DFWXB-WIFI	Multifunction weight indicator with WiFi and Ethernet TCP/IP ports and Alibi Memory. 110/240VAC power supply and EU plug, with built-in rechargeable lithium battery. Stainless Steel Case. 25mm RGB display.	Consult	View

Part #	Description	List Price	Cart/Quote
DFWX-UK	Multifunction weight indicator with 110/240VAC power supply and UK Plug. Stainless Steel Case. 25mm RGB display. Predisposition for analog and radio frequency or Bluetooth output options.	Consult	View
DFWXB-UK	Multifunction weight indicator with 110/240VAC power supply and UK Plug, with built-in rechargeable lithium battery. Stainless steel case. 25mm RGB display. Provision for analog and radio frequency or Bluetooth output options.	Consult	View
DFWX-ETH-UK	Multifunction weight indicator with Ethernet port and Alibi Memory. 110/240VAC power supply and UK Plug. Stainless Steel Case. 25mm RGB display.	Consult	View
DFWXB-WIFI-UK	Multifunction weight indicator with WiFi port and Alibi Memory. 110/240VAC power supply and UK Plug, with built-in rechargeable lithium battery. Stainless Steel Case. 25mm RGB display.	Consult	View

Part #	Description	List Price	Cart/Quote
DFWX-AUS	Multifunction weight indicator with 110/240VAC power supply and AUS plug. Stainless steel case. 25mm RGB display. Provision for analog and radio frequency or Bluetooth output options.	Consult	View
DFWXB-AUS	Multifunction weight indicator with 110/240VAC power supply and Plug AUS, with built-in rechargeable lithium battery. Stainless steel case. 25mm RGB display. Provision for analog and radio frequency or Bluetooth output options.	Consult	View
DFWX-ETH-AUS	Multifunction weight indicator with Ethernet port and Alibi Memory. 110/240VAC power supply and AUS plug. Stainless Steel Case. 25mm RGB display.	Consult	View
DFWXB-WIFI-AUS	Multifunction weight indicator with WiFi port and Alibi Memory. 110/240VAC power supply and AUS plug, with built-in rechargeable lithium battery. Stainless Steel Case. 25mm RGB display.	Consult	View

Part #	Description	List Price	Cart/Quote
DFWX-US	Multifunction weight indicator with 110/240VAC power supply and Plug US. Stainless Steel Case. 25mm RGB display. Predisposition for analog and radio frequency or Bluetooth output options.	Consult	View
DFWXB-US	Multifunction weight indicator with 110/240VAC power supply and Plug US with built-in rechargeable lithium battery. Stainless steel case. 25mm RGB display. Predisposition for analog and radio frequency or Bluetooth output options.	Consult	View
DFWX-ETH-US	Multifunction weight indicator with Ethernet port and Alibi Memory. 110/240VAC power supply and Plug US. Stainless Steel Case. 25mm RGB display.	Consult	View
DFWXB-WIFI-US	Multifunction weight indicator with WiFi port and Alibi Memory. 110/240VAC power supply and US Plug, with built-in rechargeable lithium battery. Stainless Steel Case. 25mm RGB display.	Consult	View

Options

Optional Power Supply Cords

	Part #	Description	List Price	Cart/Quote
	PWCORDCH	Power supply cord with SEV1011 plug (CH plug).	Consult	View

DFWX: IP68/IP69K Multifunction Weight Indicator

DFWX Specifications

Resources/Downloads

Application Stories / Articles

Parts

EU Versions

DFWX | UK Versions

DFWX | AUS Versions

DFWX | US Versions

Options

Optional Power Supply Cords

Integrated wireless interfaces (available only when ordering for DFWX and DFWXB models)

External wireless interfaces

Calendar/ Date & Time clock (only at time of order)

Alibi Memory for approved communication (only at time of order)

Storing the weigths

Analog output (only at time of order)

Digital input / output (only at time of order)

Level compensation device (legal for trade appovable)

Printers / Labelers

Columns, Supports Brackets, Visors

Remote Control

PC Connection Cable

Load cell cables

PG Cable Glands

Approval for Sale to Third Parties

	Part #	Description	List Price	Cart/Quote
	RF2G469K	Built-in 2.4 GHz radiofrequency module with IP69K protection rating. Maximum operating distance up to 60 m INDOOR, and up to 80 m OUTDOOR Max. Up to 38 configurable channels. (RF2G469K must be combined with another radio module).	Consult	View
	BLTHX	(S3) Bluetooth 5.0 (BLE) card for mounting inside the indicator, complete with antenna and mounting kit with IP68/IP69K protection. Maximum operating distance up to 30 m INDOOR, and up to 100 m OUTDOOR.	Consult	View

Part #	Description	List Price	Cart/Quote
OBRF2G4X	(S1) External module for 2.4GHz radio frequency communication. Equipped with 3m cable. IP67 degree of protection. Maximum operating distance up to 60 m INDOOR, and up to 80 m OUTDOOR. To be connected to an RS232 port. Includes PG9 cable gland for indicator.	Consult	View
OBRF2G4X-USB	External module for 2.4GHz radio frequency communication, with USB type A port, for PC. Equipped with 1 m cable. IP67 degree of protection. Maximum operating distance up to 60 m INDOOR, and up to 80 m OUTDOOR.	Consult	View
OBBLTHX	(S1) External module for BLE 5.0 communication. Equipped with 3 m cable. IP67 degree of protection. Maximum operating distance up to 30 m INDOOR, and up to 100 m OUTDOOR. To be connected via RS232. A PG9 cable gland for the indicator is included.	Consult	View

	Part #	Description	List Price	Cart/Quote
	D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Consult	View
	ALMEM3V3-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box (it requires FW 05.00.02 or higher).	Consult	View

	Part #	Description	List Price	Cart/Quote
	DAC3590X	Opto-isolated analog output, 0-4/20 mA, 0-10Vdc.	Consult	View
	RSCBTW	4-core twisted shielded cable (2x2x0.34 mm²), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View

	Part #	Description	List Price	Cart/Quote
	DFIO3V3	Board for indoor installation with 2 inputs and 6 opto-isolated digital outputs. Can be combined with CB10P cable for management of external automations.	Consult	View
	CB10P	Shielded cable 10x0.25 mm² (suitable for Ex zones). PVC sheathing, 7.5mm diameter. Operating temperature: -25 / +70 °C (fixed installation). Minimum bending radius >/= 8 x O.D. €/m. Maximum length that can be ordered: 100 m or multiples.	Consult	View

Part #	Description	List Price	Cart/Quote
PR80-3	Thermal printer with paper cutter. Paper roll not included.	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll Ø 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option. Maximum print size 25400 x 108 mm. Maximum roll Ø 203 mm and width up to 118 mm. Label roll and ribbon not included.	Consult	View
RSCBLP	RS232 cable l=1,5m for LP542xx, SMTPLUS printers.	Consult	View
RSCBLP10M	RS232 cable l=10m for LP542xx, SMTPLUS printers.	Consult	View
RSCBSHTP	1,5 m cable for connecting PR80-3 printer.	Consult	View
RSCBSHTP10M	10m cable for connection to the PR80-3 printer.	Consult	View
CNFSERV	Custom-made printouts for DFW and DFWL series. NET price.	Consult	View
CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View

Part #	Description	List Price	Cart/Quote
DFWXCL	Support bracket for DFWX series indicators, DFWXB, DFWX-ETH, DFWXB-WIFI.	Consult	View

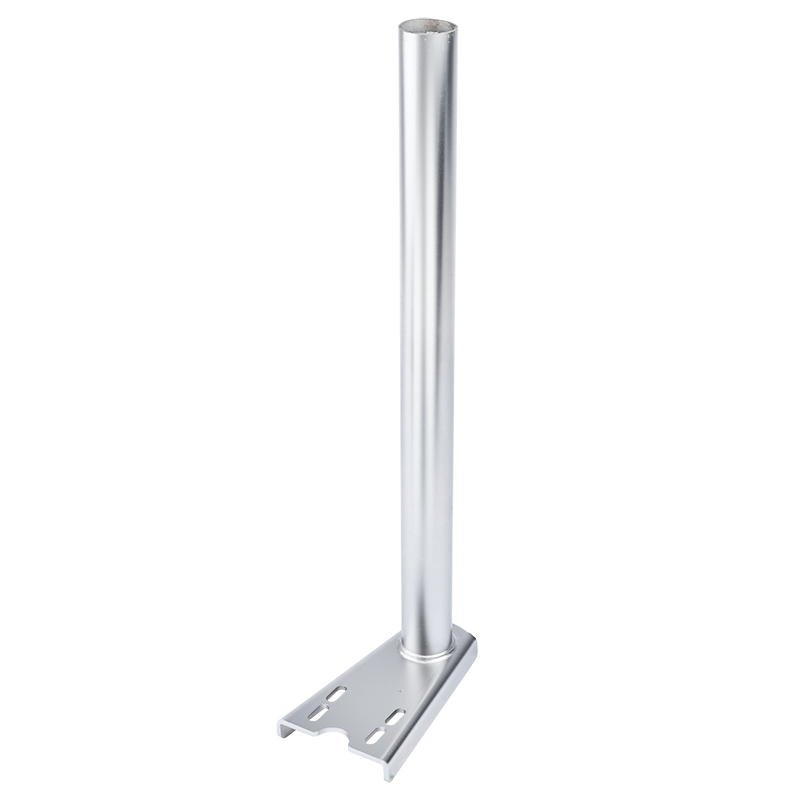

TCBI350-2	Stainless Steel column, length 350mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL). NOTE: -2 column models do not include the indicator holder bracket.	Consult	View
TCBI500-2	Stainless Steel column, length 500mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded, (to be combined with DFWXCL or 3590CL).	Consult	View
TCBI700-2	Stainless Steel column, length 700mm, for installation integral with T, TE, PB, PBI series platforms. Indicator support bracket excluded (to be combined with DFWXCL or 3590CL).	Consult	View

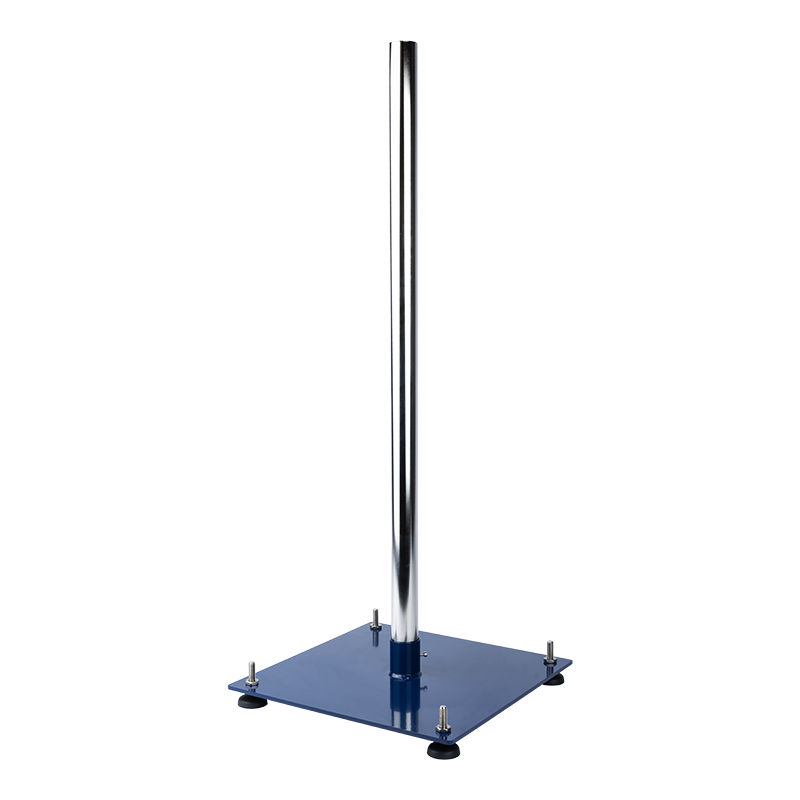

CLD-900	AISI 304 stainless steel column, h=900mm, Ø 38mm. Painted steel base 350x350mm.	Consult	View

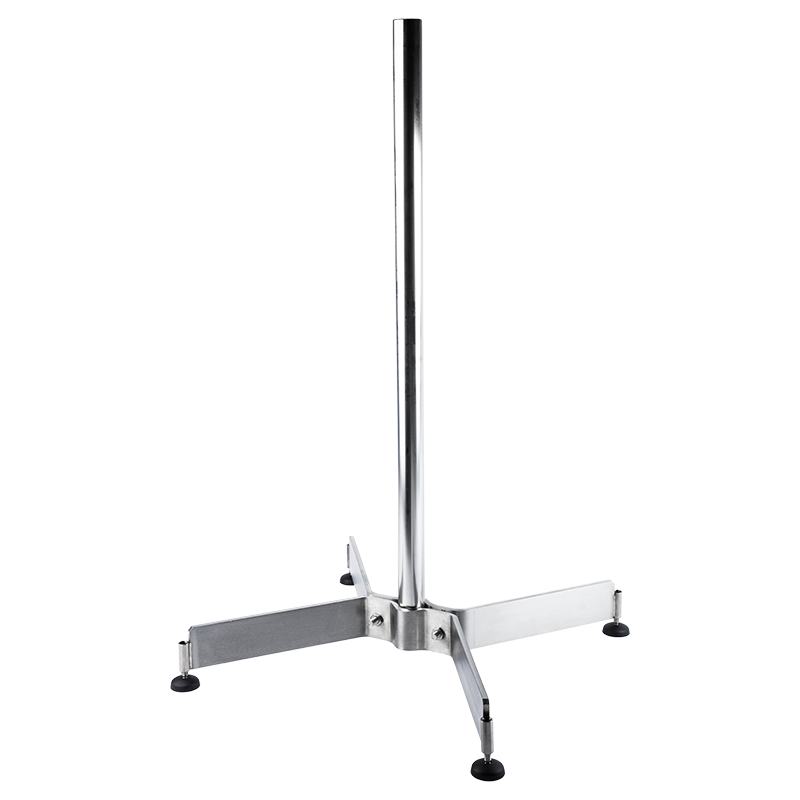

CLI-900	AISI 304 stainless steel column, h=900mm, Ø 38mm. 450x450mm stainless steel base.	Consult	View

Part #	Description	List Price	Cart/Quote
RSCBUSB3P	PC/RS232 USB converter cable, l=1,5m. USB connector to PC side, conductor-end sleeves on the scale side. PG9 cable gland included.	Consult	View
RSCBUSB485	USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output.	Consult	View
ETH3MC	Ethernet shielded cable 3 m long for connection between scales/network.	Consult	View
ETH5MC	Ethernet shielded cable 5 m long for connection between scales/network.	Consult	View

Part #	Description	List Price	Cart/Quote
LCCBC	Cable for connection between platform and indicator, l=50cm. Female connector to be soldered.	Consult	View
LCCB5C	LCCBC cable + 5m extension cable.	Consult	View
LCCB10C	LCCBC cable + 10m extension cable.	Consult	View

Part #	Description	List Price	Cart/Quote
PG7M	10 PG7 metallic cable gland set for weight indicators. Complete with rings and gaskets.	Consult	View
PG9M	10 PG9 metallic cable gland set for weight indicators. Complete with rings and gaskets.	Consult	View
PG13M	10 PG13 metallic cable gland set for weight indicators.	Consult	View
