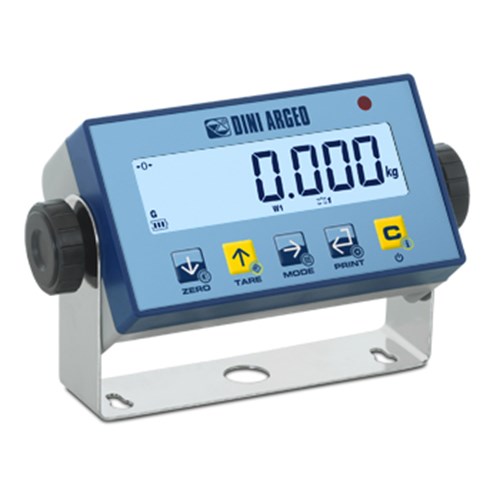

DFWL PLUS: Multifunction Weight Indicator Advanced Version
Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad.
Easy to clean ABS IP54 case, resistant to harsh and corrosive environments.
Suitable for use on the table, column, or wall.
Fitted with fixing bracket with adjustable inclination.
A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved versions for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
Power supply from 5 to 12Vdc. EU, UK, US, AU plugs included as standard.
Power supply: 12V power unit included (if connected it excludes the battery supply) or 4 AA batteries (not included), operating time up to 40 hours.
RS232/C bidirectional port on RJ11 connector for quick connection on screw terminal, configurable for PC, PLC, or additional remote display
ASCII Protocol
MODBUS RTU/MODBUS ASCII protocol
Available Languages for Printing: IT, EN, FR, DE, ES, PT, CN*, EL* *For Chinese and Greek a programming of the printer/labeler is required (S1, only at the time of order)
Selectable Function Modes:
The user can select the operating modes directly using the dedicated key*: - High resolution display x 10 - Precision weighing with temporary recalibration via a sample weight (for internal factory use) - Net/Gross - Lb to Kg converter - Free conversion factor (for meter and litre counters etc.) - Weight totalizer - Formulizer - +/- controller with quick target and threshold input - Percentage weighing - Piece counter - Hold - Detection of weight peaks* These quick access keys to the menus can be blocked by configuring a dedicated password.
Main Certifications:
EU Type Examination Certificate (45501:2015)
OIML R76
Australian legal for trade certificate of approval (NMI S788)
NEW: PROGRAMMABLE COMMUNICATION STRING
The DFWL PLUS indicator offers the possibility of completely customization of the data string output from the serial port, greatly simplifying the integration of the indicator in systems that communicate with pre-existing PC programmes.
Customisation also concerns the weight reading command, in order to function correctly also in systems with on-demand string sending.

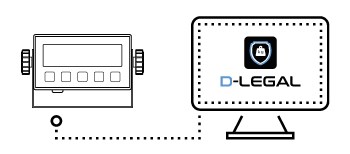

The new weighing softwareD-LEGAL is a virtual alibi memory that allows you to save approved weighs directly on a PC, with no memory limits.D-LEGAL is designed to simplify data exchange with external programmes through a complete API package. D-LEGAL can communicate with the Dini ArgeoDGT4X, DGT1SX, DGT1P, DGT1SP, DFWIECEX , DFWL PLUS and DFWLI PLUS transmitters and indicators. Main features: - Approved and encrypted weighing database that is searchable and exportable in Excel format - Potentially unlimited storage memory - Available in aninternal use version (D-API)
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.
Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135°C Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20°C = Ta = +40°C) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130°C Dc IP65 (-20°C = Ta = +40°C) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125°C Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).
ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115°C Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).
Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.
