Carts for Scales and Platforms
- Tubular structure in painted or stainless steel
- Fitted with two breakneck wheels and two breaking wheels
- ABS handle to ease the mobility (not in the ATEX version)
- Available in two versions, with low or high loading level
- ATEX version for hazardous zone
Carts in painted or stainless steel, designed to realize mobile weighing station, equipped with one or more single cell platforms. Possibility to install a labeler, wireless communication modules, barcode reader and more.

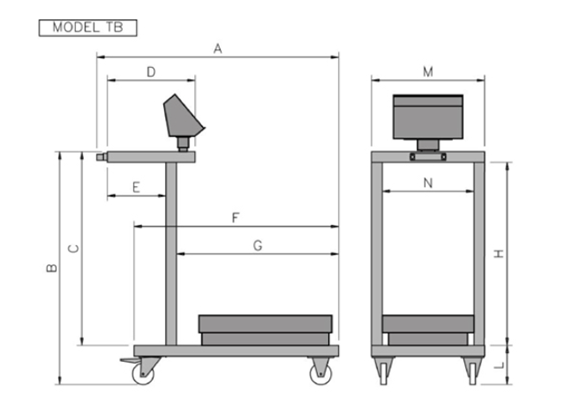

TB Model Dimensions (mm)
| A | B | C | D | E | F | G | H | L | M | N | |
| TB60.. | 910 | 880 | 730 | 330 | 220 | 770 | 610 | 690 | 150 | 485 | 405 |
| TB60B.. | 910 | 880 | 730 | 330 | 220 | 770 | 610 | 690 | 150 | 590 | 510 |
| TB300.. | 990 | 880 | 730 | 330 | 220 | 850 | 690 | 690 | 150 | 665 | 585 |

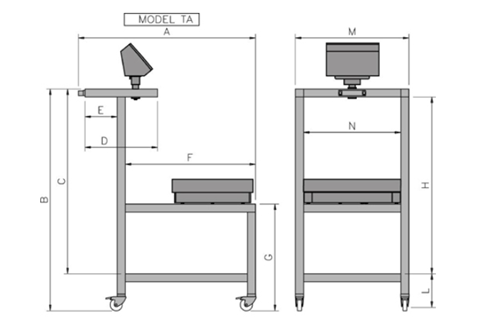

TA Model Dimensions (mm)
| A | B | C | D | E | F | G | H | L | M | N | |
| TA60.. | 880 | 1100 | 915 | 360 | 160 | 645 | 560 | 875 | 185 | 585 | 505 |
| TA300.. | 1030 | 1100 | 915 | 360 | 160 | 795 | 560 | 875 | 195 | 680 | 600 |
Resources/Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Bench and Floor Weighing Platforms | Download |  Email |
Compact Scales|Floor Scales|Modular Bench Scales|Hygienic Scales|ATEX Scales|ATEX Platforms|Four Cell Platforms|Single Cell Platforms|Carts|Four Cell Low Profile Platform|Platforms, Indicators and Accessories|All Weighing Platforms|Platforms Accessories |
Parts
Carts with HIGH surface for 400x400mm and 400x500mm platforms
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|

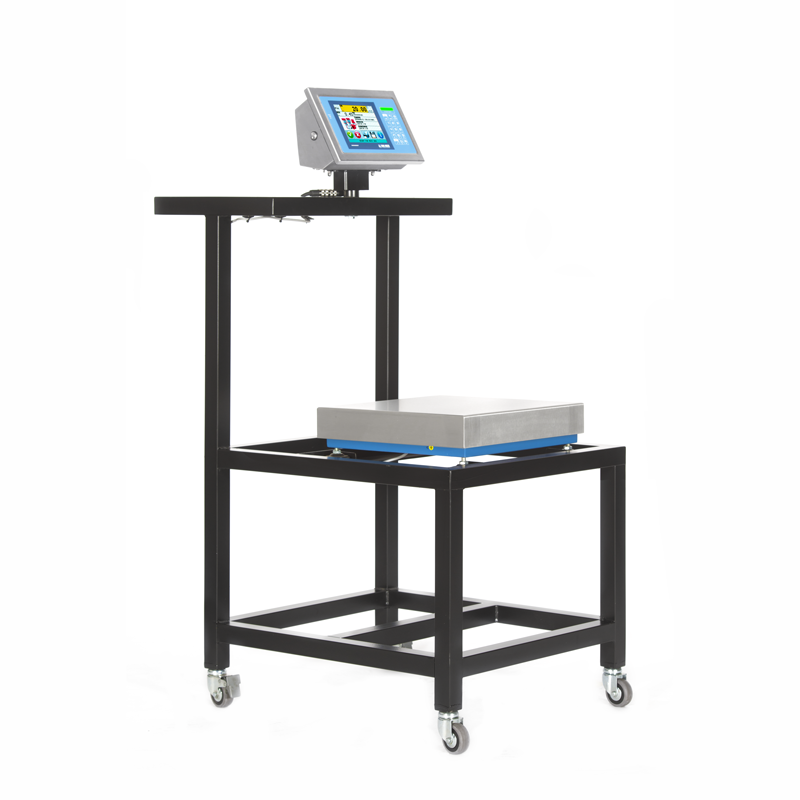

TA60R2 | Painted steel cart, with high table top, for 400x400 or 400x500mm platform. Height of loading platform: 645mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. |
Consult |
|
|

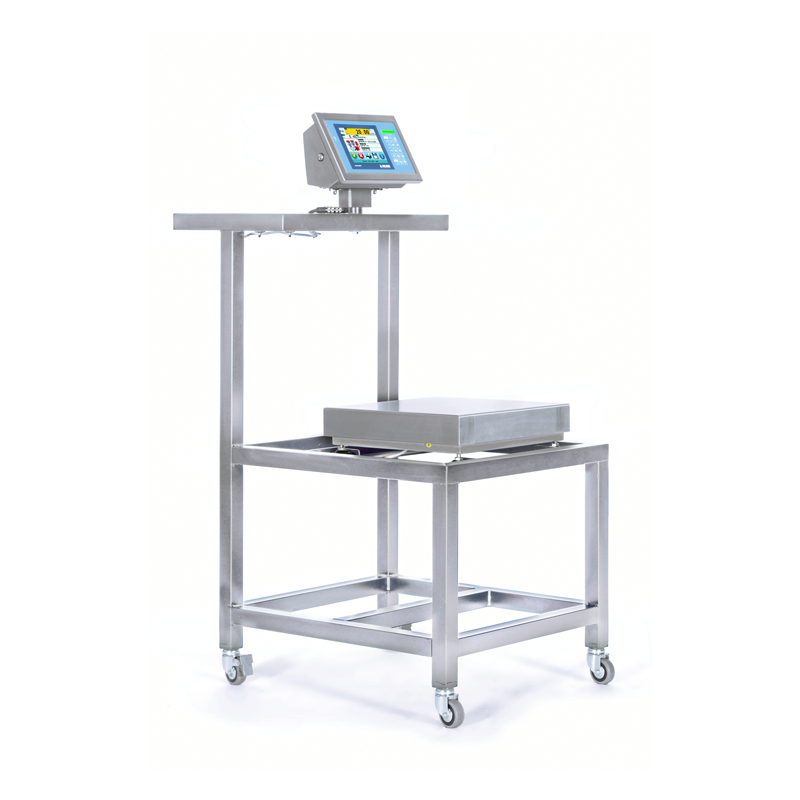

TA60I-1 | AISI 304 stainless steel trolley, with high table top, for 400x400 or 400x500mm platform. Height of loading surface: 670mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. |
Consult |
|
|

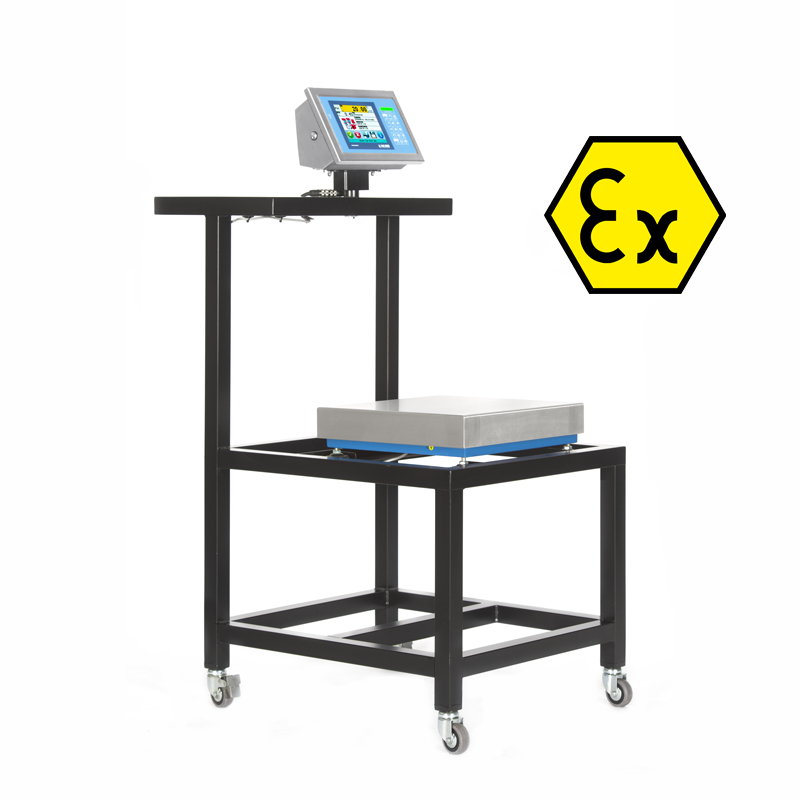

TA60EXR2 | Cart for ATEX zones, painted steel, with high table top, for 400x400 mm or 400x500 mm platform. Height of loading surface: 640 mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIB T6 Gb (Ta -20°C ÷ +60°C) X for gas and ATEX II 2 D Ex h IIIC T85°C Db (Ta -20°C ÷ +60°C) X for dust. |
Consult |
|
|

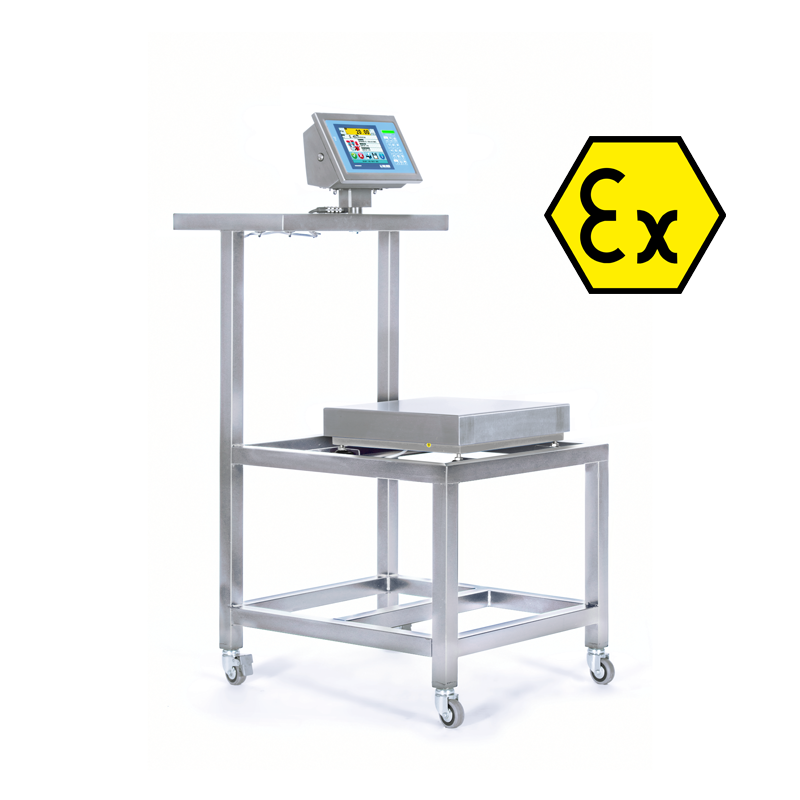

TA60IEX-1 | Cart for ATEX zones, in AISI 304 stainless steel, with high table top, for 400x400 or 400x500mm platform. Height of loading surface: 670mm. Only for T/TE, T C6, TE C6 and TE-69K series platforms. Marking: ATEX II 2 G Ex h IIC T6 Gb (Ta -20°C ÷ +60°C) X for gas and ATEX II 2 D Ex h IIIC T85°C Db (Ta -20°C ÷ +60°C) X for dust. |
Consult |
Carts with HIGH surface for 500x600mm and 600x600mm platforms
Carts with LOW surface for 400x400mm and 400x500mm platforms
Carts with LOW surface for 500x500mm platforms
Carts with LOW surface for 500x600mm and 600x600mm platforms
Multiplatform carts
Options
Multiplatform carts
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
|

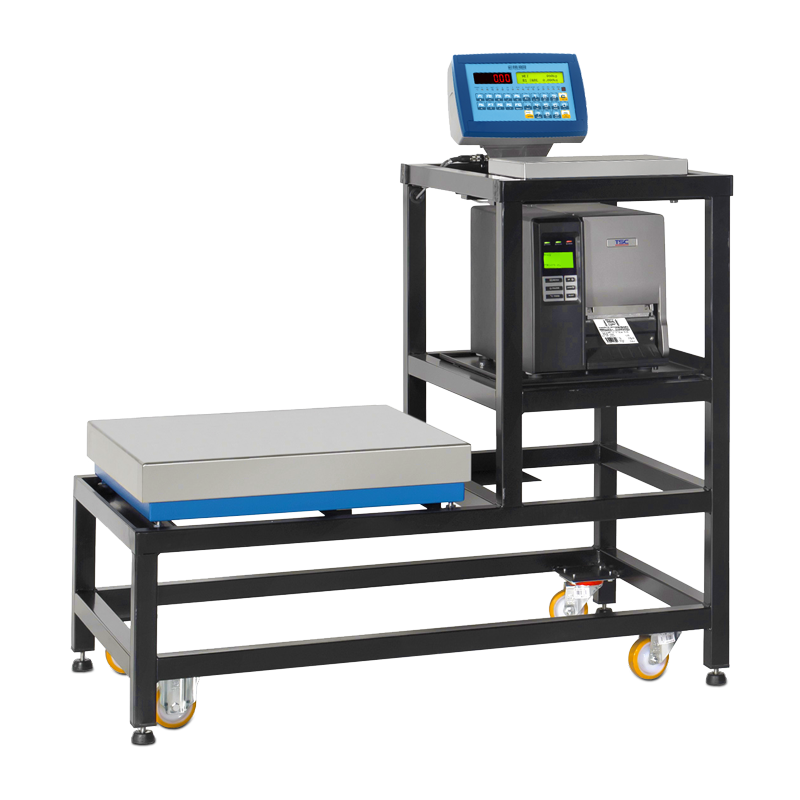

TKDC3 | Painted steel cart for double platform systems (TS/TT model on the high supporting surface and TQ/TM/TL/TX model on the low supporting surface), fitted with shelf for printer / labeller. |
Consult |
|
|

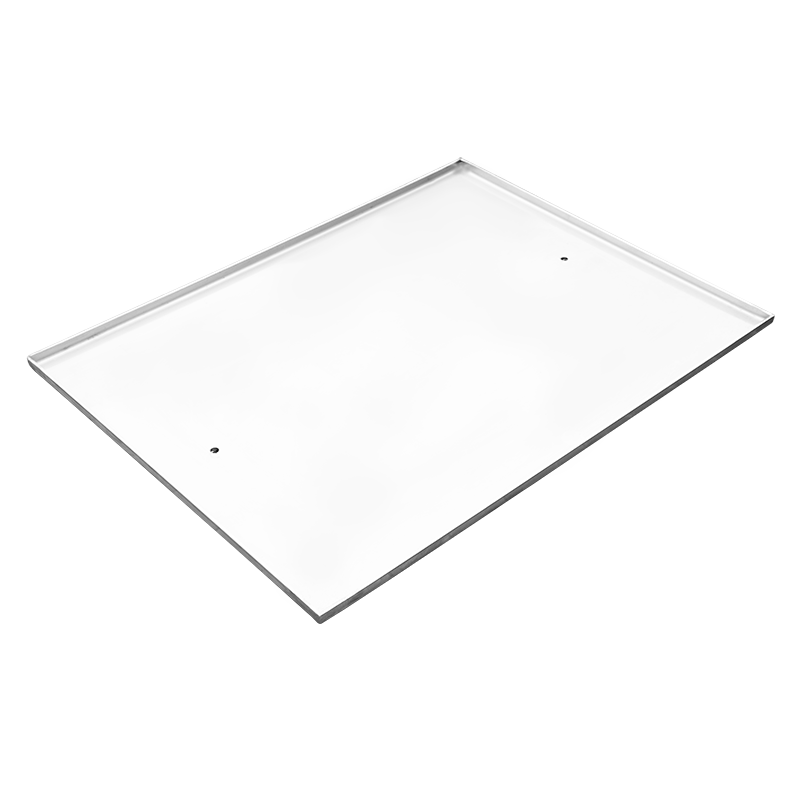

TPBEI | Stainless steel plate AISI 304 for scale or labeller support for TA or TB carts. It can only be ordered in combination with TA and TB series carts. |
Consult |
