Product PDF

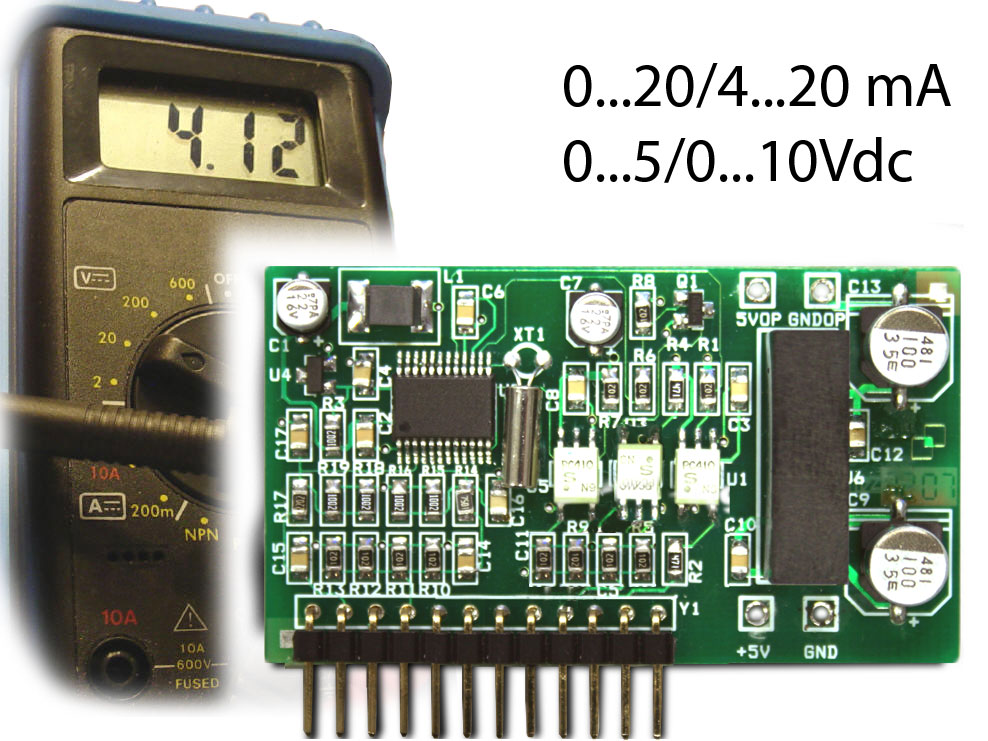

ADC16I 16bit Analog Input

  • Reference values for input saimpling programmable from the indicator or from the PC with Dinitools: 0...5/0...10Vdc or 0...20/4...20mA
  • 16 bit resolution (65536 divisions)
  • Reading speed: up to 100Hz (depending on the weight indicator)
  • Maximum applicable resistance on the input in current: 250 ohm
  • Minimum applicable resistance on the input in voltage: 15 Kohm
  • Easily configurable through the indicator or through the PC using Dinitools
  • Available for: CPWEBELT
  • NOTE: this board is an option available only when ordering the weight indicator
Request More Information
Anin

Optoisolated 16 bit analogue input, in voltage or in current. Programmable as 0...5/0...10Vdc, 0...20/4...20mA through the indicator or through the PC with Dinitools. It may be integrated in the indicators for checking the flow and dosage, for remote programming of the setpoint of hourly flow.

Parts

Available Versions

Part # Description List Price Cart/Quote

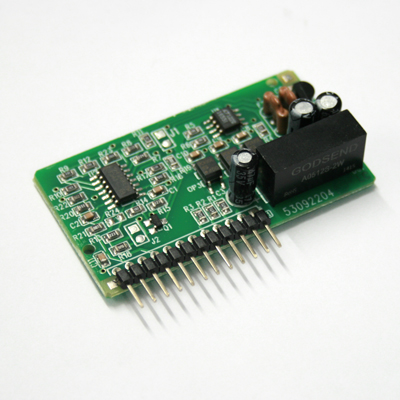

ADC16I Built-in analogue input, 0-4/20 mA, 0-10VdC (cable land excluded). A/D 16 bit converter, maximum applicable resistance on the input in current is equal to 250 Ohm, minimum applicable resistance on the input in voltage equal to 15KOhm. Compatible with DAC16O-2.

Consult
