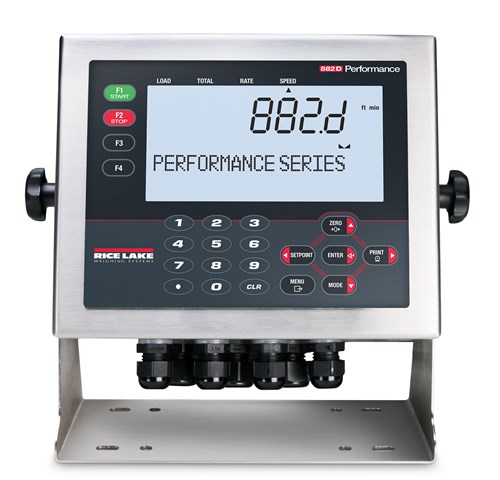

882D Belt Scale Integrator
Standard Features
- LCD display
- Hardware slot for two option cards
- Operator access to audit trail, preset tare, accumulator, time & date and setpoints through menu keys
- Password protected audit trail tracking for configuration and calibration changes
- Setpoints for control and alarms
- Four onboard digital I/O channels
- Four programmable ticket formats up to 1,000 characters
- Filter settings for noise
- Speed inputs
Approvals
882D Belt Scale Integrator
Belt scales used in demanding industries like mining, bulk material blending, and sand or gravel quarries require instrumentation that can keep up. The tough yet compact 882D belt scale integrator is engineered to provide straightforward, accurate data in a wide range of environments — even hazardous locations. Designed with advanced programming capabilities and an I/O option, the 882D can be customized to manage product dosing and metering.
A backlit display makes for easy viewing of rate, speed and time, even in lighting conditions where a screen would typically be difficult to read. The 882D’s IP66 stainless steel enclosure protects the instrument from severe weather and is well-suited for exposure to harsh environments. Whether you are belt weighing for process control or a truck, barge or rail loadout application, you can rely on the 882D for durable performance in every setting.
882D Specifications
|
Power Power Consumption: Excitation Voltage: Analog Signal Input Range: Analog Signal Sensitivity: Sample Rate: Resolution: |
System Linearity: Digital I/O: Communication Ports: Pulse Input: Display: Annunciators: |
Keys/Buttons: Operating Temperature: Dimensions: Weight: Rating/Material: Warranty: EMC Immunity: Approvals: |
882D Dimensions
| Dimensions | |||
|---|---|---|---|
| A | 9.93 in (252 mm) | G | 4.31 in (110 mm) |
| B | 8.10 in (206 mm) | H | 4.14 in (105 mm) |
| C | 6.50 in (165 mm) | I | 4.32 in (110 mm) |
| D | 8.94 in (227 mm) | ||
| E | 0.68 in (17 mm) | ||
| F | 0.63 in (16 mm) | ||
Parts
| Part # | Description |
|---|---|
| {#Available Versions} | |
| 180847 | Indicator,882D 100-240VAC 100-240VAC Euro Plug, Belt Scale Integrator with LCD Display Universal Enclosure |
| 184683 | Indicator,882D Belt Scale Integrator DC Power with LCD Display Universal Enclosure |
Options
| Part # | Description |
|---|---|
| {#Communication Interfaces} | |
| 165366 | 1280 Opt,Single Analog Output Option Card |
| 179157 | Ind Opt,880 Relay Card Four Channel, Dry Contact, 3A @ 115VAC, 5A @ 30VDC. |
| 164689 | 1280 Opt,Relay Interface Option Card |
| {#Integrated Fieldbus Port} | |
| 165792 | 1280 Opt,Ethernet/IP CompactCom Option |
| 165794 | 1280 Opt,ProfiNet CompactCom Option |
| 165795 | 1280 Opt,Profibus CompactCom Option |
| 165796 | 1280 Opt,Modbus TCP CompactCom Option |
| 179533 | 1280 Opt,EtherCAT CompactCom Option |
