Product PDF

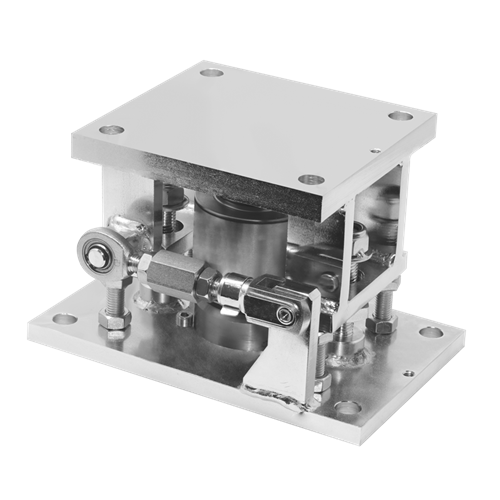

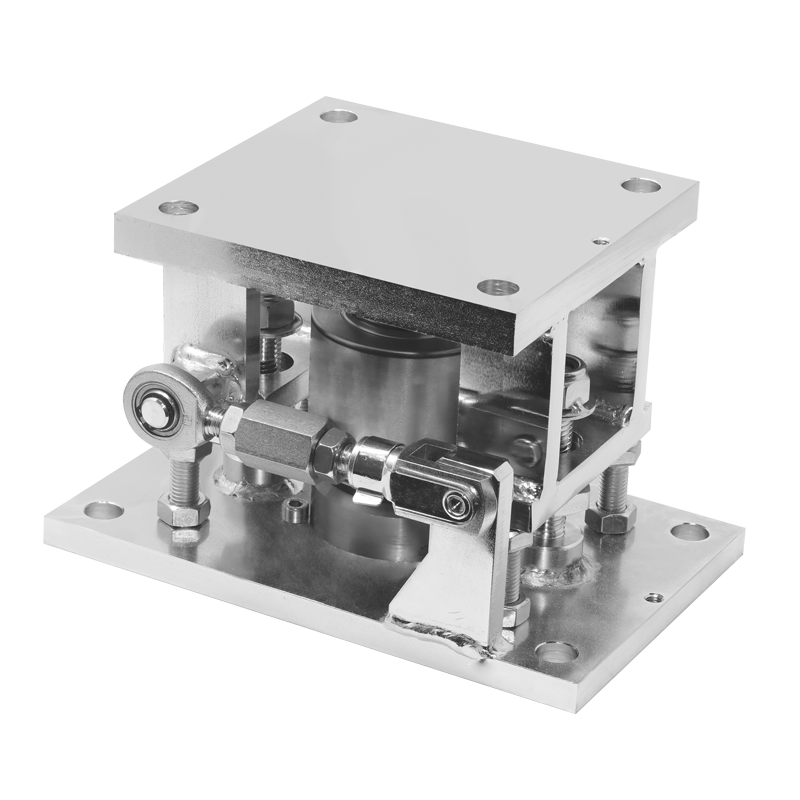

173801 Zinc-Plated Steel Kits, for RL5426 and RL5426DC Canister Load Cell

  • Construction in zinc-plated steel
  • Anti-tipping system
  • Locking/bypass system for easy transport and maintenance
  • Overload protection nuts
  • Great resistance to lateral forces
  • Locking nuts to maintain the raised position, simplify the installation and/or removal of the load cell
Request More Information
173801

Assembly kits up to 40,000 kg RL5426 and RL5426DC series canister load cells. Suitable for weighing silos, hoppers and large capacity tanks.


Protection
Force (KN)
 ⇅
Max lift-off force
82
 ⇆
Max side force
67

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|ATEX Load Cells|Hygienic Load Cells Articles
How to Choose the Best Load Cell for Your Needs Email All Load Cells and Mounting kits Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
173801 Tank Mount,RL5426-04N Nickel Plated Tank Mount for RL5426 Load Cells

Consult

Options

Other Options

Part # Description List Price Cart/Quote
GNDC20-1 Grounding cable for weighing kit. 25 mm² section cable, 20 mm eyelets.

Consult
