Thames Side

T66 Series: Bending Beam Load Cell

This fully welded stainless steel bending beam load cell is hermetically sealed to IP68 / IP69K and can be used in the harshest industrial environments. It is suitable for weighing platforms, bag fillers, belt weighers and tank weighing in the Food Processing, Chemical, Pharmaceutical and general Bulk Handling industries.

T95 Series: Tension Load Cell

The T95 tension stainless steel load cell is most suitable for high accuracy applications where movement or vibration is present, e.g. mixers, agitators, catalyst vessels, weighing platforms, axle weighers and vehicle weigh-in-motion (WIM) systems. The T95 load cell is also available with ATEX and IECEx approval certification for all gas and dust zones. Barriers are not required for use in gas zone 2 or dust zones 20, 21, 22.

T85 Series: Shear Beam Load Cell

This stainless steel shear beam load cell is available with approval according to OIML R60 Class C3 (3000 divisions) and is calibrated in mV/V/Ω by output current matching, which minimises corner correction time on multi-cell systems.

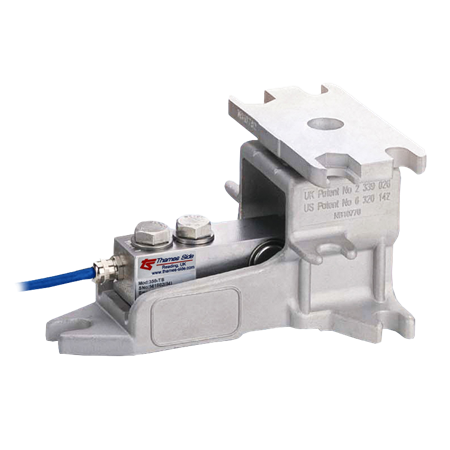

LEVERMOUNT Series: Mounting Kit for T66 and T85 Load Cells

The LeverMount® is a unique, well-established mounting kit that makes installation much simpler, safer and more cost-effective than traditional assemblies.

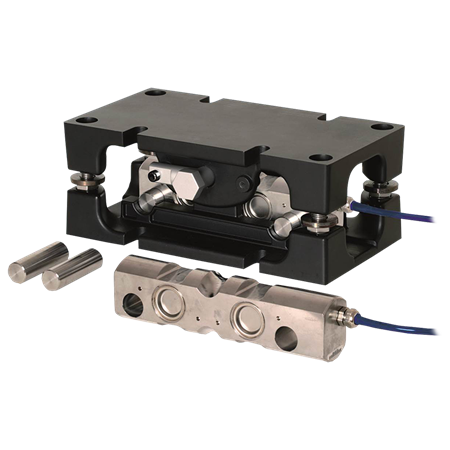

MASTERMOUNT Series: Mounting Kit for VC3500 Load Cells

Vessel weighing problems solved simply and cost effectively. The MasterMount® is the latest addition to an innovative range of patented weighing assemblies, which are designed with safety and ease of installation in mind.

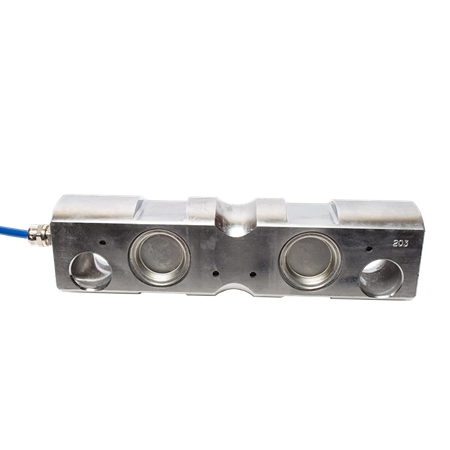

VC3500 Series: Double Shear Beam Load Cell

Vessel weighing problems solved simply and cost effectively. The VC3500 double shear beam load cell is designed particularly for large silos and tanks and it incorporates a high resistance to lift-off. The VC3500 load cell is also available with optional ATEX or IECEx certification and can be supplied as a special version with high temperature capability (for operation up to 150°C continuously).

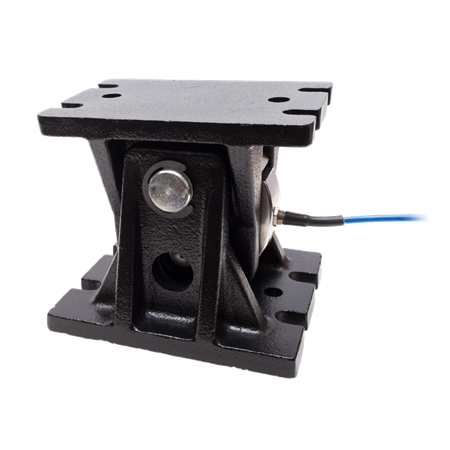

LA95 Series: Mounting Kit for T95 Load Cells

The LA95 pendulum mounting kit is the ideal assembly accessory for weighing applications with significant movement present, including tanks with mixers or agitators, catalyst vessels, axle weighers and weigh-in-motion (WIM) systems.
