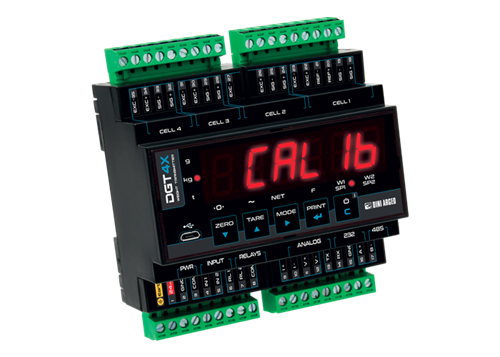

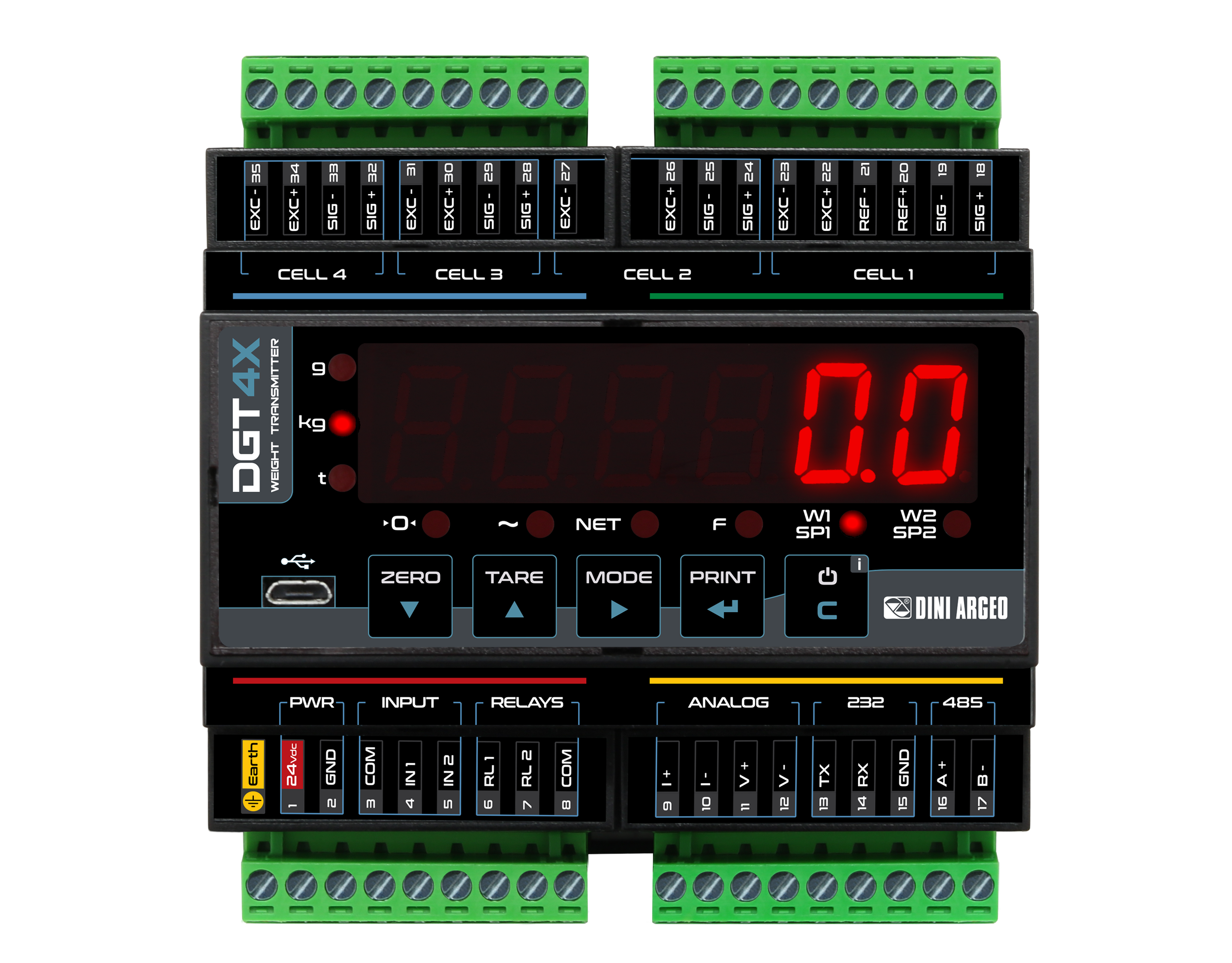

New Load Cell Weight Transmitter

The DGT4X is even faster to keep up with your business needs.





DGT4X Product Page

A LEAP TOWARD THE FUTURE

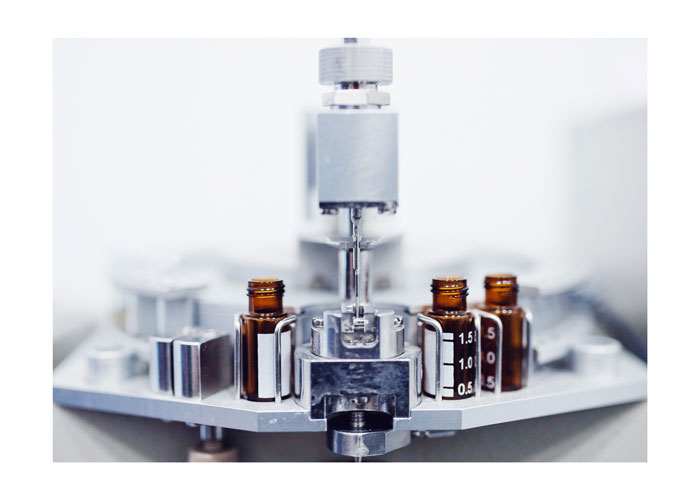

The new DGT4X is a speed explosion, designed to read and transmit the weight of load cells in industrial applications for checkweighers, microdosing and multiscale systems. Serial ports, USB and built-in fieldbus complement the DGT4X series, making it the perfect solution for industrial automation weighing.



WEIGHT TRANSMITTER FOR LOAD CELLS

Off-center load cells

Thanks to their mechanical features, the off-center / single point load cells are particularly reactive and suitable for checkweighers and micro-dispensers.

Compression load cells

The particular compact shape that characterizes them makes them extremely strong and resistant, perfect for weighing silos, hoppers and tanks of medium and large capacity.

Bending beam load cells

With the reactivity and accuracy of an off-center load cell and the robustness of a shear beam load cell, bending beam load cells are the best solution for weighing roller-conveyors and belts.

Shear beam load cells

Designed to accurately measure medium and large capacity loads in systems with multiple load cells such as floor platforms, silos and hoppers.







Maximum weight stability

New stabilised load cell power supply circuit, specifically designed for industrial environments.













2600 readings per second

The cutting-edge processor allows extremely precise weight filtering.

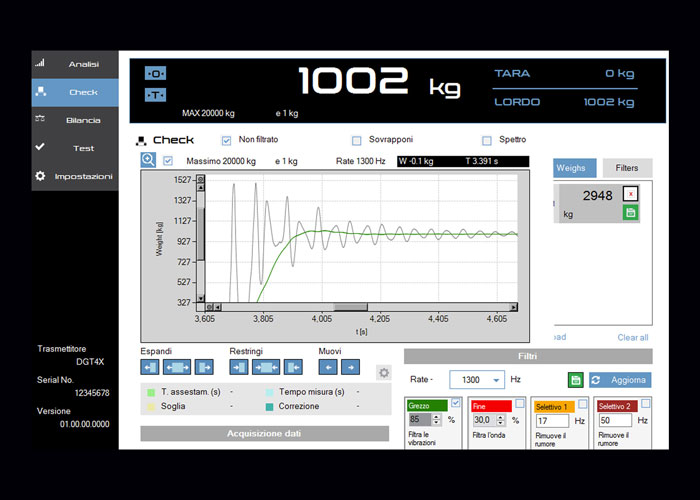

Speed that improves performance

The XSpeed Tool software allows you to analyze weighing results and set the best weighing filter for your system.











Remote control via web

Monitoring and configuration from all over the world, thanks to the fieldbus with web server.



Technical Features

AD CONVERSION UNIT

Type: 4 channels 16 bit sigma/delta
Conversion rate: 2600 Hz
Load cell number: 16 x 350 Ohm
Min. voltage per increments: 0,03 μV/increment

DIGITAL INPUT / OUTPUT

Input: nr. 2
Output: nr. 2

INTEGRATED FIELDBUS

PROFINET I/O ETHERNET IP
ETHERCAT CANOPEN
DEVICENET PROFIBUS DP
MODBUS TCP

RS485 SERIAL PORT (on basic or analog version only)

Protocol: ASCII
Modbus RTU / Modbus ASCII
Weight refresh: Up to 10 ms

USB PORT

USB Device port for quick configuration via PC with Dinitools®

ANALOG OUTPUT (DGT4AN VERSION)

16 bit internal resolution
