"WWSB" 400 x 300mm WHEEL WEIGHING PADS

	"WWSB" 400 x 300mm WHEEL WEIGHING PADS

Pads designed to create weighing stations for small sized vehicles (cars, carts, vans, etc.); particularly accurate and sturdy, with attention to details.

FEATURES

Pad dimensions: 400x300mm.
Weighing area: 300x215mm.
Overall dimensions: see technical drawing
Weight: approximately 14,5kg.
Handle for easy handling.
Sturdy structure, made with special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.
10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
Stainless steel load cells, with IP68 protection.
Hermetic junction box with IP68 protection rate.
Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
Extremely simple and reliable connection of the scale to the weight indicator.
Available in legal for trade approved version.
Available in high resolution version.
Available upon price estimate in Atex version for 1&21 and 2&22 zones.

LEGAL FOR TRADE APPROVED VERSIONS

The pads are for legal for trade use:
- In the single-pad systems, not used to weigh vehicles.
- In the wheel weighing systems in which the number of pads is equal to the number of vehicle wheels.
- In the axle weighing systems composed of one or more multiples of WWS pads, except possible limitations of use for some European States.
The CE-M legal for trade divisions indicated in the "version" table are available with ECEM option. ECEM option is needed for each legal for trade pad of the system.
Legal for trade systems with more than one WWS are fitted with the approval of the weight sum and related division:
Exemple for a 4 pads system
Single CE-M Pad: Max=1500kg and e=0,5kg
CE-M SUM: Max=6000kg and e=2kg

AXLE WEIGHING SYSTEM INSTALLATION:

DOWNLOAD

0200-NAWI-06085 - Dini Argeo - WWS.pdf	WWS_03_24.01_EN_U.pdf
OIML_R134-2006_GB1-12.02_ Rev1.pdf	WWS_03_24.01_ES_U.pdf
QSG_ENG_WWSR_22.11.pdf	WWS_03_24.01_FR_U.pdf
TECH_DRAWING_WWS.pdf	WWS_03_24.01_IT_U.pdf
WWS_03_24.01_DE_U.pdf	Last Firmware Revision News

Available versions

Code	l x w x h (mm)	Max (kg)	d (kg)	(kg)	d HR (kg)*	Notes
WWSB600-2	400x300x58	600	0,2	0,2	--	Price for single platform
WWSB1500-2	400x300x58	1500	0,5	0,5	--	Price for single platform
WWSB3T-2	400x300x58	3000	1	1	0,1	Price for single platform
WWSB6T-2	400x300x58	6000	2	2	0,2	Price for single platform
WWSB8T-2	400x300x58	8000	5	5	0,5	Price for single platform

(*) These divisions are obtainable only with the relative options

Legal for trade approval

(only at time of order)

	Code	Description
	ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.
	ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.

High resolution (d HR)(only at time of order)

	Code	Description
	EHR	High resolution model for internal factory use.

Spare part cable

	Code	Description
	CBWWSOVN	10m connection cable for WWS pads (as a spare part), with MIL connector pad side and new M12 connector indicator side.

On/Off ramp

	Code	Description
	WWSBR	Ramp for WWSB. Dimensions 400x200x54mm.

Main connactable indicators

	Code	Description
	DFWKRP-3	For analogue WWS (WWS...-y) only. Indicator with transport case and integrated printer. Fitted with specific programme for vehicle weighing, 17-key keypad, backlit display and time/date. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
	3590EKR-3	For analogue WWS (WWS...-y) only. Indicator with transport case, printer and AF09 software. 25-key keypad, LED display and backlit graphic LCD display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
	3590ETKR-3	For analogue WWS (WWS...-y) only. Touch screen indicator in transport case with printer, AF08 software. Colour display. Available only in combination with Dini Argeo vehicle weighing systems (WWS, RWS, DTW, WBSA series).
	AF03	Software for weighbridges, input/output vehicle. For 3590 and CPW weight indicators.
	AF08	Software for static wheel and axle weighing with 2 or more pads.

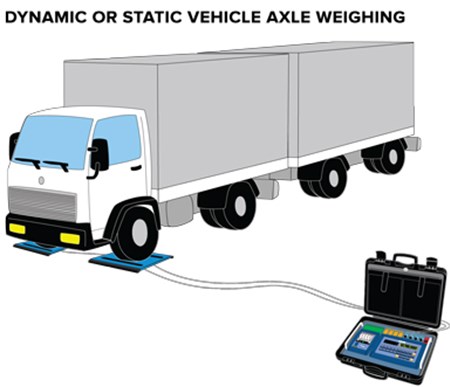

	AF09	Software for dynamic and static axle weighing with 1 or 2 pads.

Calibration service with Dini Argeo indicator (only at time of order)

	Code	Description
	CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
	CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
	CT8	ISO 17025 calibration certificate from 3001 to 6000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
	CD3	ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights.
	CD4	ISO 9001 DINI ARGEO calibration report, from 6001 to 15000kg, for single scale/platform. ACCREDIA reference weights.
