DTW: the "Dual Track" vehicle weighing system.
The 22,5 m version is ideal for vehicle filling systems.
|
|
|
|
Innovative vehicle weighing dual track weigh bridge, easily transportable and installable thanks to the reduced height and weight. Designed and built with vey high quality materials, this represents the most efficient solution for saving time, space, and money in comparison to the classic weigh bridges currently available on the market. The standard version is fitted with CE-M 3000e APPROVAL, for legal for trade use. | | | TECHNICAL FEATURES |
| | - Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
- Extremely compact: only 20 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
- Sturdy loading surface in striated sheet steel, made up of pairs of modules, sized to withstand any load on the basis of the parameters dictated by the 96/53/EEC directive (maximum load on single axle for the vehicles transiting in Europe).
- Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
- Installable above, as well as flush floor to the street surface.
- Reinforced on and off ramps, for mobile or fixed installation (optional).
- Weight detection system through oscillating load bars (patented system) with integrated brake / acceleration compensating limits and anti-slip rubber resting plates.
- Load cells protected from dust and water.
- Fitted with approval, carried out in factory (to be combined with Dini Argeo indicator).
- Dust and waterproof wirings and connections, easy to connect and disconnect.
- Modularity: by adding or removing pairs of modules, the weigh bridges can have these lengths: 4,5 m - 9 m - 13,5 m - 18 m - 22,5 (up to 36m by price estimate).
- Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the weigh bridge also without an electrical power supply.
- 20m long connection cable between DTW and indicators.
|
|
|
| Code | Dimensions (LxPxH) m | Total contents | Max Capacity kg | CE-M Division kg | CE-M2 Division kg |
| DTW515A | 2 x (4,50 x 1,00 x 0,20) | 2 bridges - 4 weighing bars | 15000 | 5 | -- |
| DTW530A | 2 x (4,50 x 1,00 x 0,20) | 2 bridges - 4 weighing bars | 30000 | 10 | 5/10(**) |
| DTW930A | 2 x (9,00 x 1,00 x 0,20) | 4 bridges - 6 weighing bars | 30000 | 10 | 5/10(**) |
| DTW960A | 2 x (9,00 x 1,00 x 0,20) | 4 bridges - 6 weighing bars | 60000 | 20 | 10/20(**) |
| DTW1430A | 2 x (13,50 x 1,00 x 0,20) | 6 bridges - 8 weighing bars | 30000 | 10 | 5/10(**) |
| DTW1460A | 2 x (13,50 x 1,00 x 0,20) | 6 bridges - 8 weighing bars | 60000 | 20 | 10/20(**) |
| DTW1860A | 2 x (18,00 x 1,00 x 0,20) | 8 bridges - 10 weighing bars | 60000 | 20 | 10/20(**) |
| DTW1880A | 2 x (18,00 x 1,00 x 0,20) | 8 bridges - 10 weighing bars | 80000 | 50 | 20/50(**) |
| DTW2280A | 2 x (22,50 x 1,00 x 0,20) | 10 bridges - 12 weighing bars | 80000 | 50 | 20/50(**) |
(*) NET PRICE.
(**) Fitted with CE-M 3000e approval. The dual range CE-M 2x3000e approval is optional, upon price estimated.
|
Transport and installation |
| | Code | Description | |
| WBTRASP1 | Weighing system transport costs. Ask for price estimate. | |
| DTWINST1 | Mounting, installation and testing of DTW Dual Truck mobile weigh bridge series. The following is not included: the masonry, the predisposition of the electric system and grounding, the channeling of the cables, the lifting and handling equipment in the workyard, and anything else not expressly mentioned in the offer. Besides our personnel, there is the need of one person, made available by the user, for the duration of the intervetion. Ask for price estimate. | |
|
Options only available at time of order |
| | Code | Description | |
| IC190 | Kit of 4 on/off ramps in painted steel, with 30 ton for pair maximum capacity, for use directly on the road surface in mobile or fixed applications (for DTW with 30 ton max. capacity).
Ramp dimensions: 1,40 x 1 x 0,20 m. (net price) | |
| IC190R | Kit of 4 on/off reinforced ramps in painted steel, with 80 ton for pair maximum capacity, for use directly on the road surface in mobile or fixed applications (for DTW with 80 ton max. capacity).
Ramp dimensions: 2,05 x 1 x 0,20 m. (net price) | |
| DTWR | Kit made up of 4 frames in reinforced painted steel for creating 4 mobile ramps, with webbed internal structure for filling with concrete, for use directly on the road surface in mobile or fixed applications. 80 ton maximum capacity. Ramp dimensions: 2,05 x 1 x 0,22 m. (net price) | |
| DTWTT | Pair of "T" profiles for corner protection in galvanized steel, 3m long, for installation above ground of the platform with concrete ramps. (net price) | |
| DTWTC5 | Metallic frame kit in hot-dip galvanized steel, made up of 4 lateral angles and 4 “T” header angles, for flush floor installation of a 4,5-meter long DTW. (net price) | |
| DTWTC9 | Metallic frame kit in hot-dip galvanized steel, made up of 4 lateral angles and 4 “T” header angles, for flush floor installation of a 9-meter long DTW. (net price) | |
| DTWTC14 | Metallic frame kit in hot-dip galvanized steel, made up of 4 lateral angles and 4 “T” header angles, for flush floor installation of a 13,5-meter long DTW. (net price) | |
| DTWTC18 | Metallic frame kit in hot-dip galvanized steel, made up of 4 lateral angles and 4 “T” header angles, for flush floor installation of a 18-meter long DTW. (net price) | |
| DTWTC22 | Metallic frame kit in hot-dip galvanized steel, made up of 4 lateral angles and 4 “T” header angles, for flush floor installation of a 22,5-meter long DTW. (net price) | |
(*) NET PRICE
IMPORTANT
The resting surface of the platforms should be compact (i.e. concrete), coplanar and well levelled.
| | Code | Description | |
| TSCR203 | Touch Screen PC connectable with a DFW or DGT series' weight indicator, in the weigh bridge management version. Fitted with the “Weitruck” software and the functioning Alibi Memory (to be installed in the indicator). TFT 15" monitor with adjustable inclination, 1024 x 768 maximum resolution, easily visible from all angles. | |

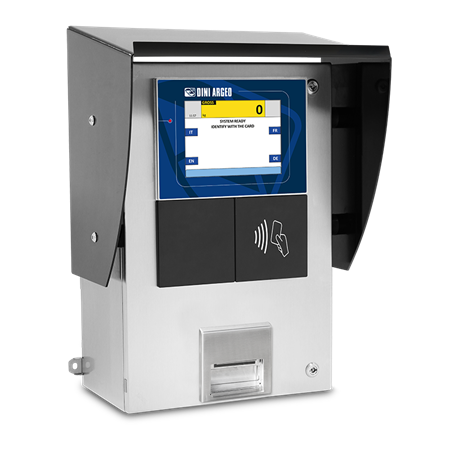

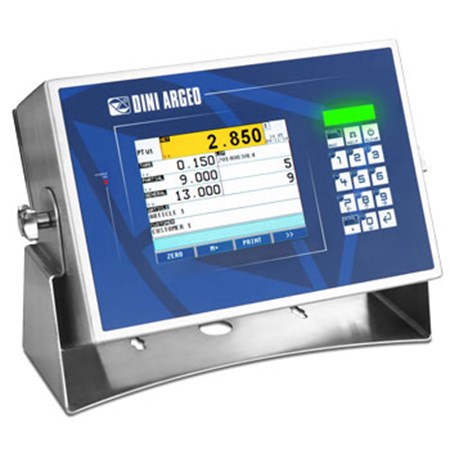

| 3590EBOX | Stainless steel Self-Service system fitted with stainless steel 3590E indicator, software for vehicle weighing and weigh bridge management, thermal printer and badge reader. | |

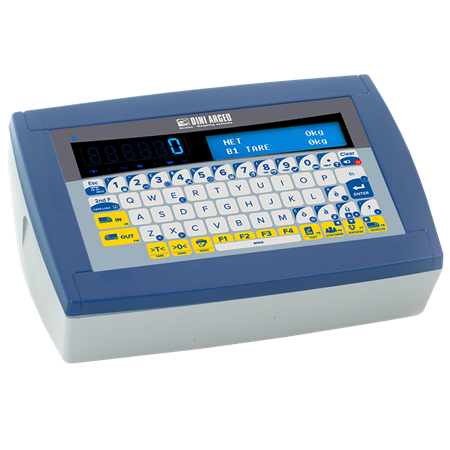

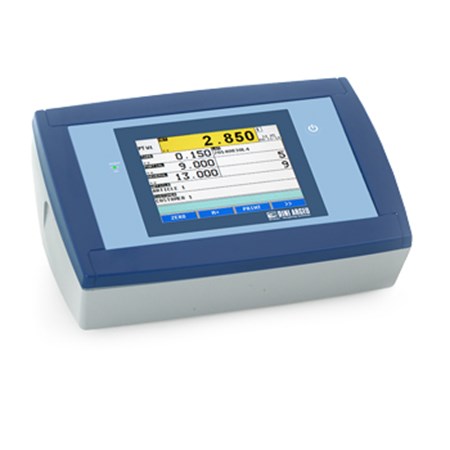

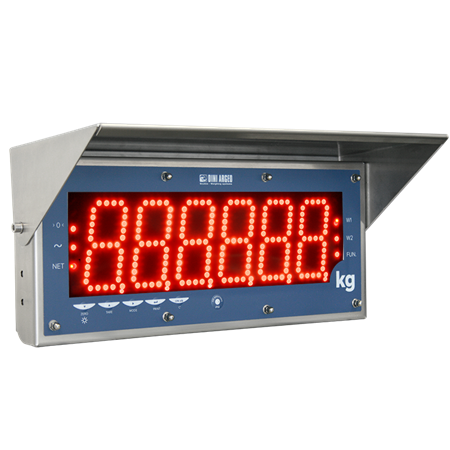

 | 3590EPXP03CC | Weight indicator in the "AF03" version for vehicle weighing systems, with attached printer, ABS IP65 case, 25-key keypad, LED display and backlit graphic LCD display. | |
| DFWRPXPTCC | Weight indicator for weigh bridge management, with IP65 ABS case, 17-key keypad, LED display and attached thermal printer. | |
| DGT60BC | Weight indicator/transmitter with IP68 stainless steel case, 5-key keypad, 60 mm LED display, and standard program (not including the repeater modes). | |

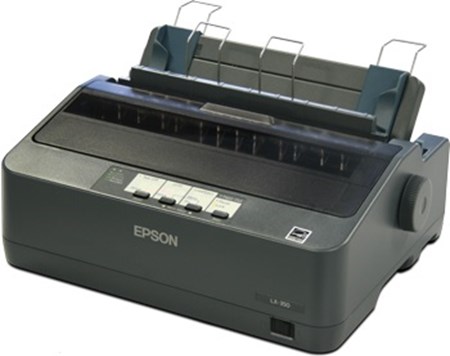

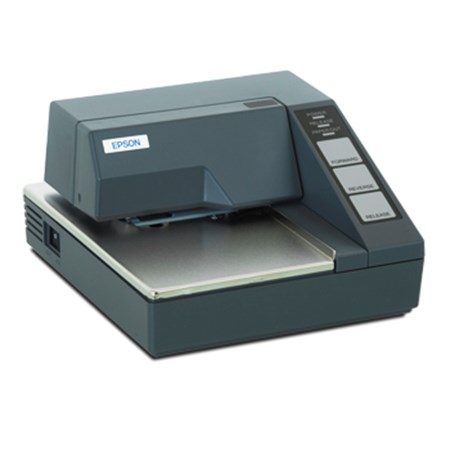

NOTE: to know the range of available printers and accessories, refer to the product data sheets of the weight indicators.
|
Main available configurations
|
|
Connectable indicators
|
TSCR203
|
3590EBOX
|
3590EXP03CC
|
DFWRPXPTCC
|
DGT60BC
|
|
|
Features
|
Features
|
Features
|
Features
|
Features
|
|
Functions
|
- Vehicle weighing
- Input/Output
- Database of over 5000 input weighs
- Recall through ID code or VEHICLE PLATE
- Login with Smart Card
- Self Service weigh
Other functions
|
- Self-Service vehicle weighing
- Input/Output
- Database of up to 999 input weighs
- Acquisition data through badge
|
- Vehicle weighing
- Input/Output
- Database of up to 999 input weighs
- Recall through ID code or VEHICLE PLATE
Other functions
|
- Vehicle weighing
- Input/Output
- Database of up to 99 input weighs
- Recall through ID code
|
- Vehicle weighing
- Input/Output (without memory)
|
|
Databases
|
- Over 5000 Customers
- Over 5000 Vehicles
- Over 5000 Materials
|
- 500 Customers
- 500 Vehicles
- 500 Materials
|
- 500 Customers
- 500 Vehicles
- 500 Materials
|
-
|
-
|
|
Printout
|
Completely programmable
|
Completely programmable
|
Completely programmable
|
- Date and time
- ID weighs
- Input value
- Output value
- Input-output difference
- Barcode
|
- Date and time
- ID weighs
- Input value
- Output value
- Input-output difference
- Barcode
|
|
