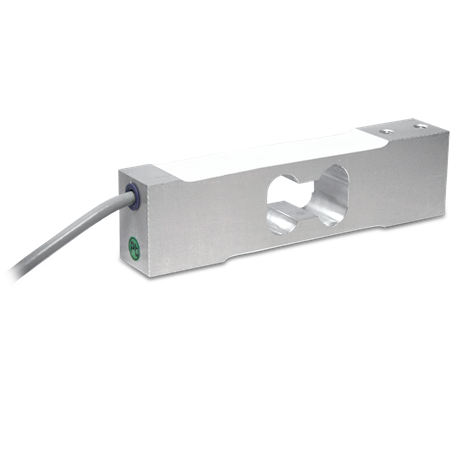

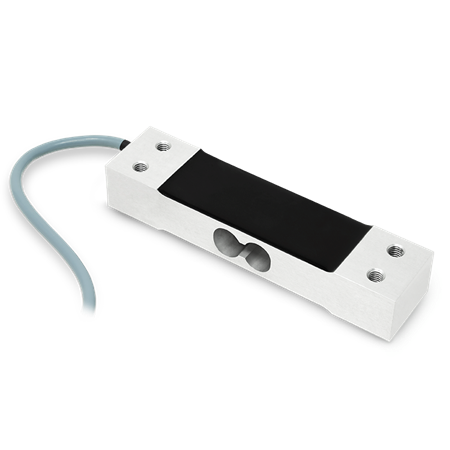

SPO SERIES SINGLE POINT LOAD CELLS


  SPO SERIES SINGLE POINT LOAD CELLS






Dimensions in mm

Wiring Code
Color
Function
YELLOW
SHIELD
WHITE
OUTPUT +
BLUE
INPUT +
RED
OUTPUT -
BLACK
INPUT -


Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 300x300 mm.

CAPACITIES (kg): 3, 5, 10, 15, 20, 30, 40.

OIML R60. C3 precision class.

Aluminium alloy. IP67 protection.

MAIN FEATURES

  • C3 PRECISION CLASS
  • OFF CENTER LOAD COMPENSATED
  • ALUMINIUM ALLOY CONSTRUCTION
  • IP67 PROTECTION
  • MAX. CAPACITIES FROM 3 TO 40 kg
  • FOR PLATFORMS WITH DIMENSIONS UP TO 300 X 300 mm
  • SHIELDED CONNECTION CABLE
  • OIML AND TEST CERTIFICATES AVAILABLE UPON REQUEST

TECHNICAL FEATURES

  • Minimum load cell verification interval:
    Vmin = EMax/8.000-15.000
  • Maximum number of verification intervals: nLC = 3000
  • Full Scale Output: 2mV/V +/- 10%
  • Temperature effect on zero:
    from ±0,0093% F.S./10K to ±0,0175% F.S/10K
  • Temperature effect on full scale output:
    0,0117% F.S./10K (-10°C/+20°C) 0,0175% F.S./10K (+20°C/+40°C)
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -10°C/+50°C
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 300..500 Ohm
  • Output Resistance: 300..500 Ohm
  • Insulation Resistance: >2000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 300% F.S.
  • 4-wire shielded cable, 40cm long, 3,2mm diameter

ATEX Version

  • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
    The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
  • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
DOWNLOAD
Available versions

Code
Plate
Max (mm)
Max
(kg)
SPO3-1 150x1503
SPO5-1 300x3005
SPO10-1 300x30010
SPO15-1 300x30015
SPO20-1 300x30020
SPO30-1 300x30030
SPO40-1 300x30040
Options for ATEX version
 CodeDescription
LCCB Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m
LCCBA Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m
EXCB6(S6) Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m
CCATEX-1 Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
CCATEX3GD ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115°C Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
