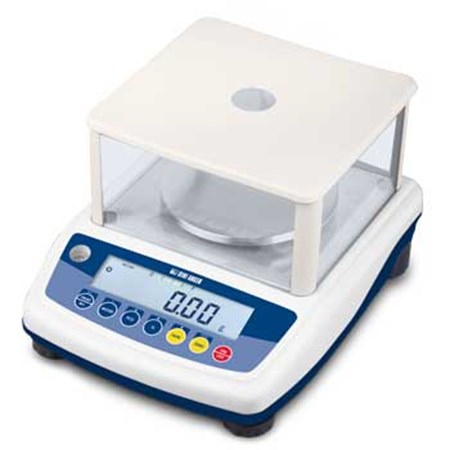

HLD SERIES TECHNICAL PRECISION "TOP-LOADING" SCALE WITH WINDSCREEN


  HLD SERIES TECHNICAL PRECISION "TOP-LOADING" SCALE WITH WINDSCREEN






Multifunctional scale, suitable for laboratory and industrial use. Available also CE-M APPROVED for legal for trade use.

DIVISION (g): from 0.002 to 0.01. CAPACITY (g): 150, 300, 600.

TECHNICAL FEATURES

  • Backlit LCD display with 7 digits 16mm high.
  • Waterproof membrane keypad, with acoustic feedback, with 7 keys.
  • Stainless steel plate, size:
    - HLD150 model Ø 80mm
    - HLD300 and HLD600 models Ø 120mm.
  • Windscreen, level bubble and adjustable feet.
  • Built-in rechargeable battery (about 30h battery life) and 230 Vac power adapter.
  • Operating temperature +5°C...+40°C.
  • RS232/c port for connection to PC or printer.
  • Packaging: 370x240x250mm size - approximate weight of 2,7kg.
  • Upon request:
    - ACCREDIA calibration with issuing of relative certificate
    - CE-M approval in class II.

FUNCTIONS

  • counting;
  • % weight;
  • weight totalisation;
  • conversion up to 13 units of measure;
  • zeroing;
  • zero tracking;
  • semi-automatic tare;
  • digital calibration;
  • backlight command;
  • low battery warning.

COUNTING FEATURES

  • Internal sensitivity and minimum recommended A.P.W.:
    Model HLD150  HLD300  HLD600
    Internal sensitivity g

    0,0004

    0,0005

    0,001

    Min. recommended A.P.W. g

    0,002

    0,005

    0,01

DOWNLOAD
Available versions

Code
ClassPlate
Max (mm)
Max
(g)
d
(g)

(g)*
Linearity
(g) +/-
Repeatability
(g)
HLD150--Ø 80 mm1500,002--0,0020,002
HLD300--Ø 120 mm3000,005--0,010,005
HLD600IIØ 120 mm6000,010,10,020,01
(*) CE-M divisions are obtainable only with the relative options.
Calibration service only available at time of scale's order
 CodeDescription
CT3 ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
Approval for sale to third parties
 CodeDescription
ECEM 3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.
ECEMDOC Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.
Printers/Labellers
 CodeDescription
OBTPRSH(S1) ABS bench thermal printer for Scale House products (to be combined with specific cable for each scale). 58 mm paper width; 50 mm roll diameter; power supply through built-in 110-240 Vac power supplier.
RSCBBC(S1) 1,5 m cable for connecting AFW, ALGM, ASB, ASC, ASG, BCSD and HLD series scales to OBTPRSH printer.
Connection cables
 CodeDescription
RSCBPCX 1,5 m RS232/C cable for connecting AFW, ALGM, ALGS, ASC, BCSD, GAM and KS series scales to PC.
Spare parts
 CodeDescription
SHAL14 12V 500mA power supplier (EU).
14TRBA 6V 1,3Ah battery.
15HLDK Membrane keyboard with overlay (HLD).
15HLDRP Round stainless steel weighing plate (HLD300/600).
15HLDRU Round plastic underplate (HLD300/600).

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
