"WALL-E" SERIES BENCH AND FLOOR SCALES


  "WALL-E" SERIES BENCH AND FLOOR SCALES

SELECTABLE FUNCTION MODES
  • The user can select the operating modes directly using the dedicated key*:
    - High resolution display x 10
    - Precision weighing with temporary recalibration via a sample weight (for internal factory use)
    - Net/Gross
    - Lb to Kg converter
    - Free conversion factor (for meter and litre counters etc.)
    - Weight totalizer
    - Formulizer
    - +/- controller with quick target and threshold input
    - Percentage weighing
    - Piece counter
    - Hold

    The “alibi memory” function is available in combination with the required operating mode and it is activated automatically when installing the relevant optional board.

  • Optional functions:
    - PEAK, detection of weight peaks (code DFWPK)
    - Newton to Kg converter (code DFWPK)

  • Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

    * These quick access keys to the menus can be blocked by configuring a dedicated password.

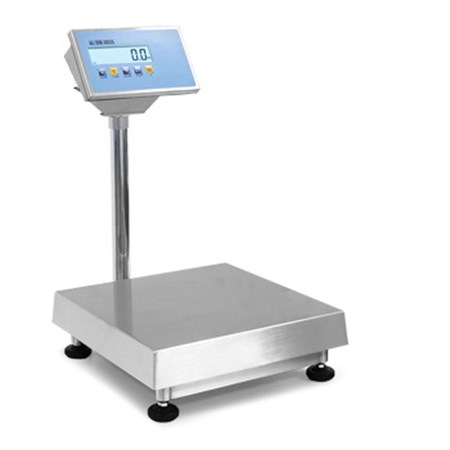

Bench and floor scales, with column, characterized by multifunction weight indicator, sturdy structure and stainless steel loading plate. Easy to use and versatile, they guarantee precision and reliability. Particularly suitable for industrial and commercial use. Available also in CE-M approved version according to OIML R-76 / EN 45501 standards.

TECHNICAL FEATURES

  • Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions. 5-key functional waterproof keypad, with indication for quick access to main functions and regulations.
  • Functioning with an aluminium load cell, 3000d approved with IP65 protection rating.
  • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
  • Stainless steel loading surface, size: see the table.
  • Fitted with fixing bracket with adjustable inclination and support column, height:
    - 350 mm in the "T" models;
    - 500 mm in the "Q" models;
    - 700 mm in the "X" and "E" models.
  • Length of connection cable to the indicator: 3m.
  • Digital calibration and Set-Up from keypad or from PC through DINITOOLS.
  • Supplied as standard with 4 AA batteries extractable drawer (batteries not included), and 12V external power adapter (if connected it excludes the battery supply), operating time up to 40 hours. EU, UK, US, AU plugs included as standard.
  • Quick user guide available in 39 languages.

I/O SECTION

  • Two-way RS232/C port on RJ11 connector for connection to PC.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER

  • CE-M approval (OIML R-76 / EN 45501).
DOWNLOAD
Available versions

Code
l x w x h
(mm)
Max
(kg)
d
(g)

(g)*
WET6-1300x300x130622
WET15-1300x300x1301555
WET30-1300x300x130301010
WEQ30-1400x400x140301010
WEQ60-1400x400x140602020
WEQ150-1400x400x1401505050
WEX60-1600x600x165602020
WEX150-1600x600x1651505050
WEX300-1600x600x165300100100
WEE300-1800x800x165300100100
WEE600-1800X800X165600200200
(*) These divisions are obtainable only with the relative options
Calibration service (ACCREDIA/DAKKS) only at time of order
 CodeDescription
CT4 ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
CT5 ISO 17025 calibration certificate from 61 to 300 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
CT6 ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.
Approval for sale to third parties
 CodeDescription
ECEM 3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.
ECEMDOC Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.
Storing the weighs
 CodeDescription
SWM "WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
Connection cables
 CodeDescription
RSCBUSB-1 USB PC/RS232 converter cable, l=1,5m. USB/RJ11 connector.
Columns, supports brackets, visors
 CodeDescription
PBSTF Stainless steel fixing bracket for mounting the DFWL indicator.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
